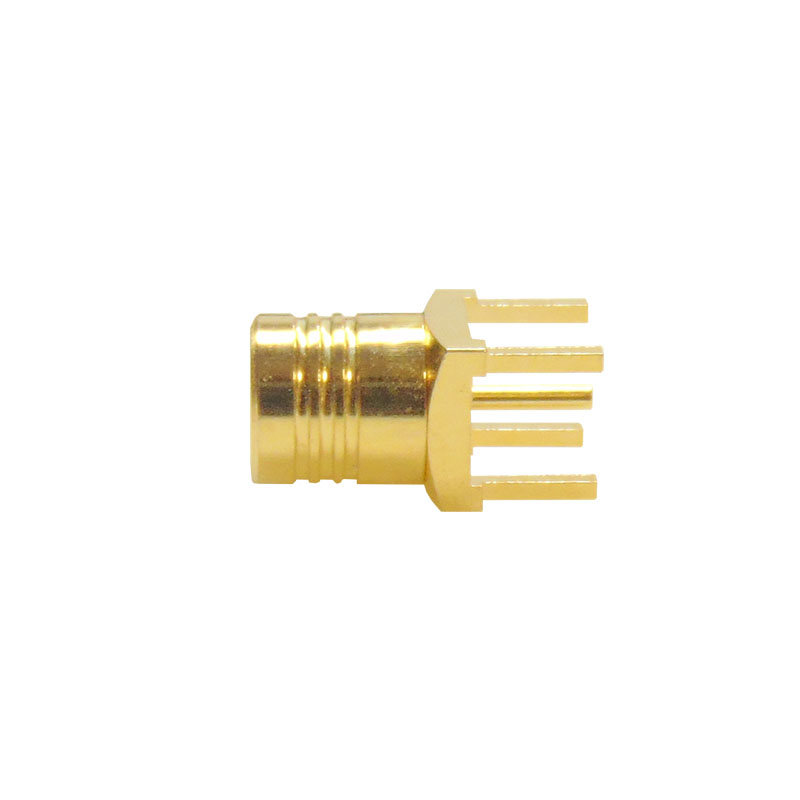

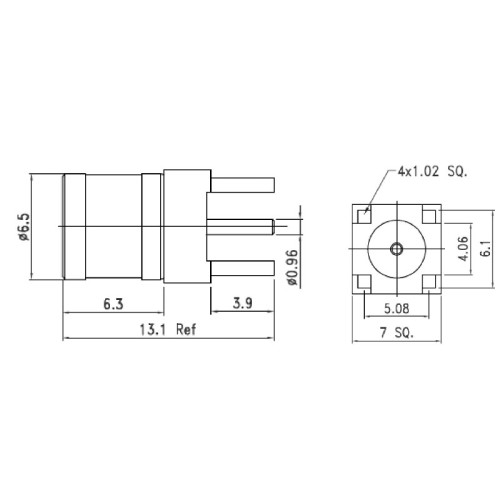

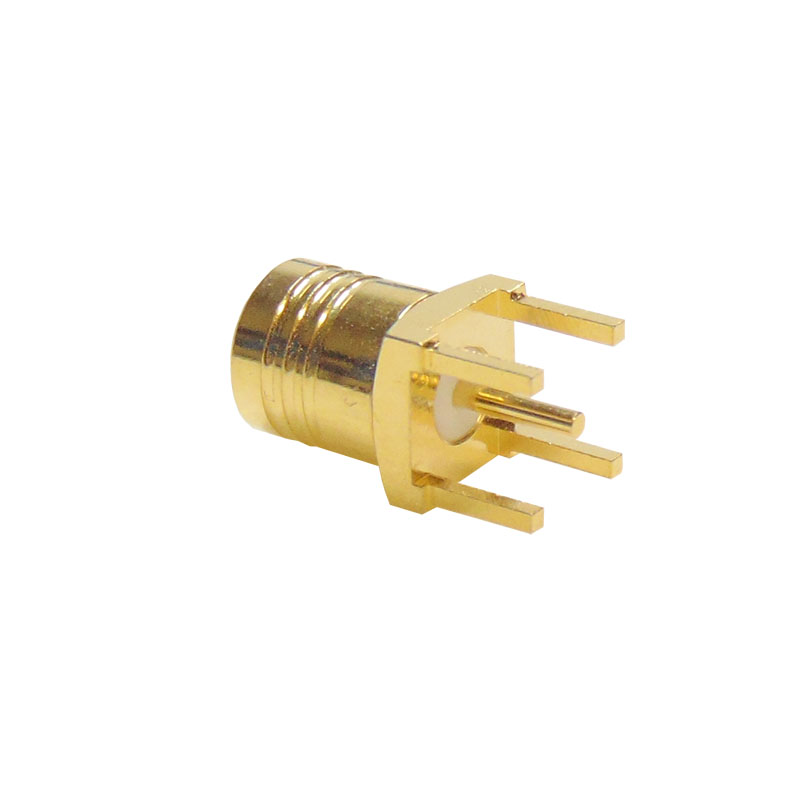

The ZDS-04-TE39-GG is a top entry PCB mounted SMB plug which is rated for all frequencies up to 4GHz. The connector is designed for PCB thicknesses of up to 3.8mm.
This connector used to be available as XDT-6310-GGAW.
| Impedance | 50Ω |
| Frequency Range | 0 – 4GHz |
| Metal Parts | Brass / Au plated |
| Centre Pin | BeCu / Au |
| Insulators | PTFE |
| Mounting Type | Top Entry |
| Leg Length | 3.9mm |
