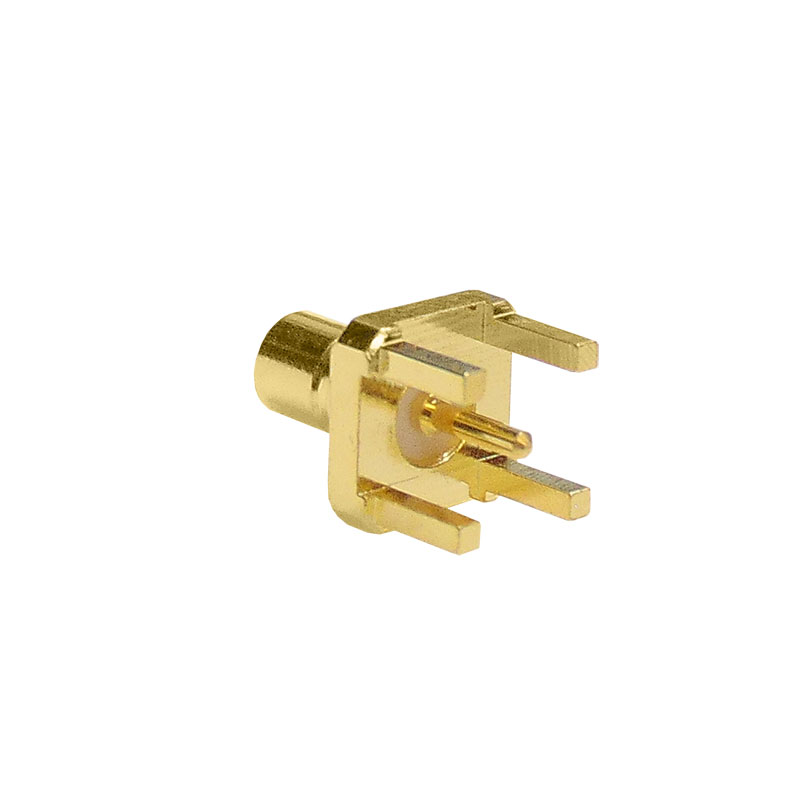

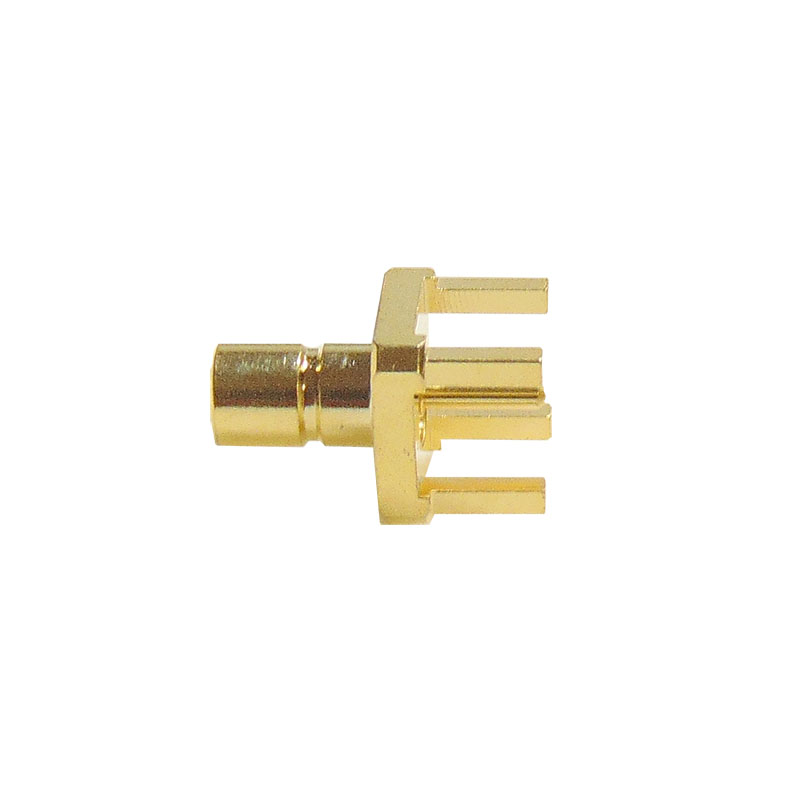

The ZDS-04-TE39-GG is a top entry PCB mounted SMB socket which is rated for all frequencies up to 4GHz. The connector is designed for PCB thicknesses of up to 3.8mm.
This connector was previsouly available as part number XDT-6300-GGAW.
| Impedance | 50Ω |
| Frequency Range | 0 – 4GHz |
| Metal Parts | Brass / Au plated |
| Centre Pin | BeCu / 30µ Au |
| Mounting Type | Top Entry |
| Leg Length | 3.9mm |
