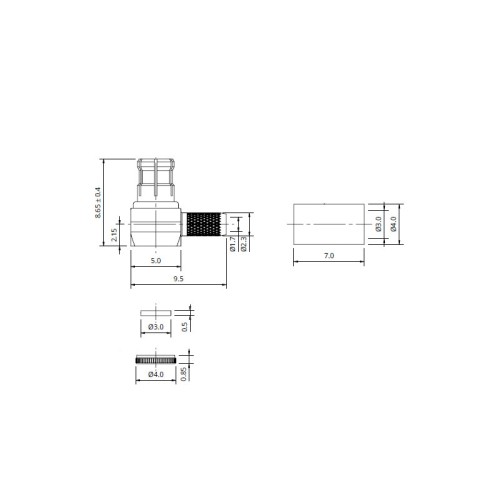

The ZJP-06-CRA-GGAD is a right angle cable mounted MCX connector for cables in the AD group which includes RG174. The connector supports frequencies up to 6GHz
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Metal Parts | Brass / Ni / Au |
| Centre Pin | BeCu / Au |
| Insulators | PTFE |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group AD RG188A/U, RG316/U and RG174/U |
