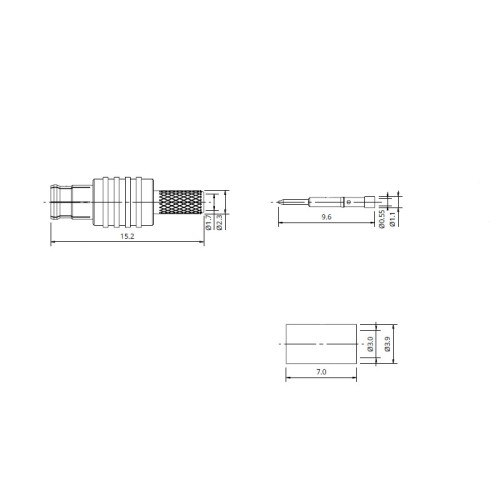

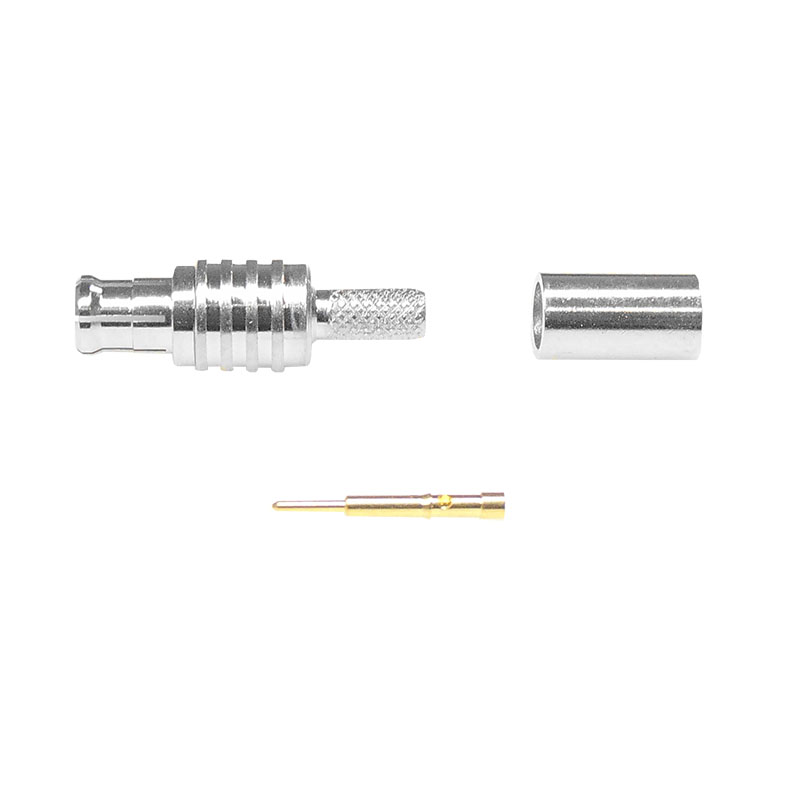

The ZJP-06-CST-NGAD is a cable mounted MCX plug is a straight format. It can be used in systems that have speeds up to 6GHz and is designed for cables in the AD Cable group including RG 174.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Metal Parts | Brass / Ni |
| Insulators | PTFE |
| Contacts | Brass Gold Plated over Nickel |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group AD RG188A/U, RG316/U and RG174/U, Cable Group AD RG188A/U, RG316/U and RG174/U |
