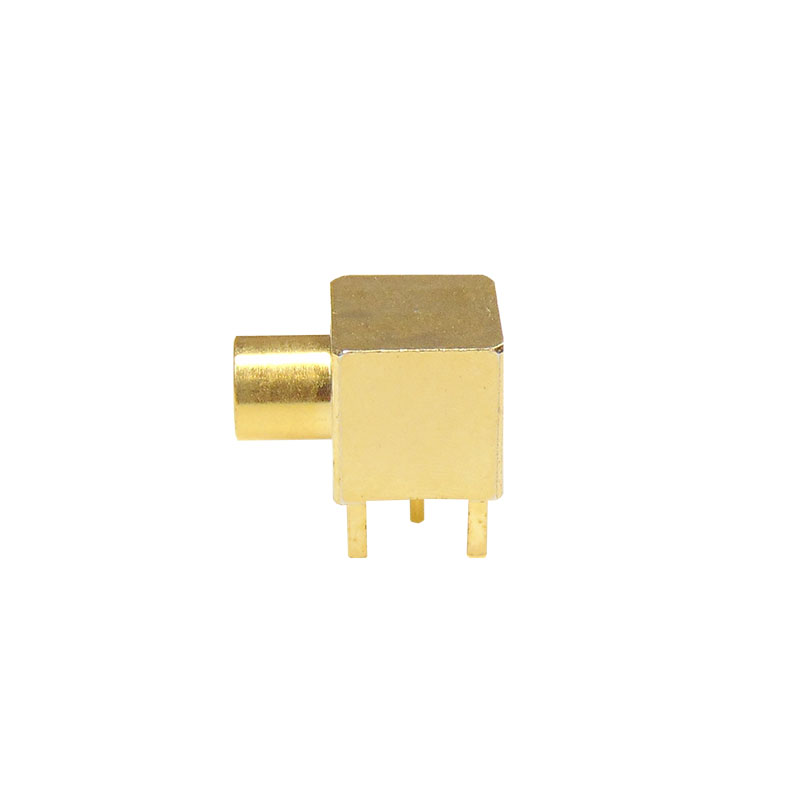

The ZJS-03-RA40-GG is a right angle mounted MCX socket. The connector works for frequencies up to 3GHz and can be hand or wave soldered.
This connector was formally known as XJT-A004-GGAY
| Impedance | 50Ω |
| Frequency Range | 0 – 3GHz |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 30µ Au |
| Insulators | PFTE |
