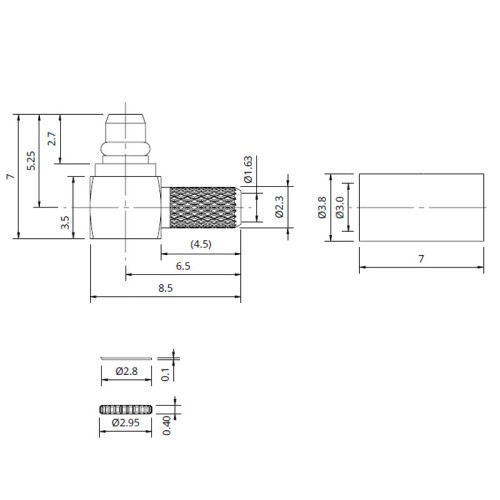

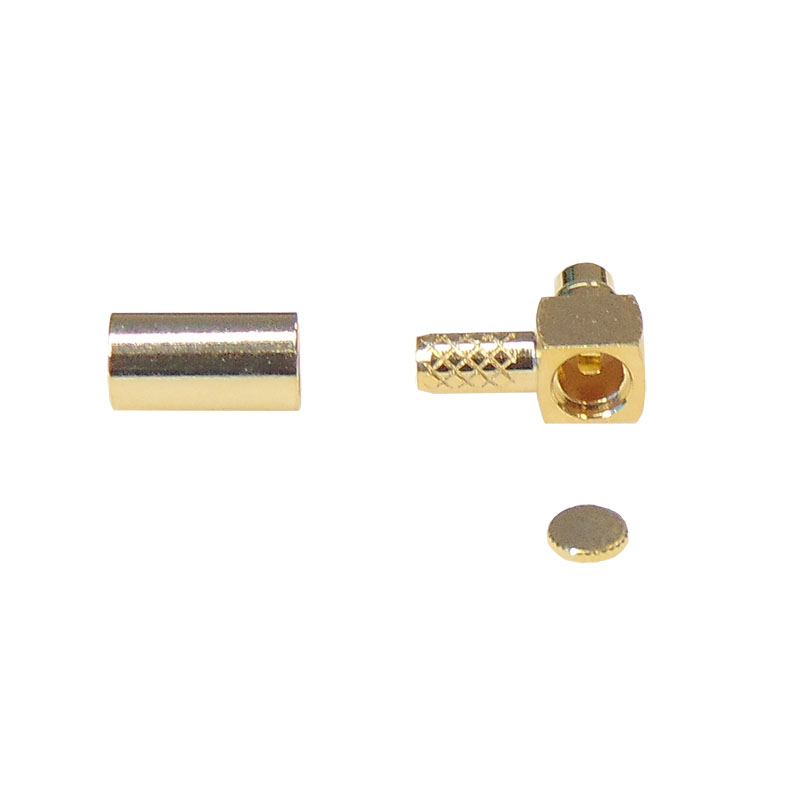

The ZLP-06-CRA-GGAD is a right angled MMCX plug which offers up to 6GHz speeds. It is made for an RG174 cable type, with the lock snap mechanism to the front interface.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Metal Parts | Brass / Ni / Au |
| Insulators | PTFE |
| Contacts | Brass Gold Plated over Nickel |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group AD RG188A/U, RG316/U and RG174/U, Cable Group AD RG188A/U, RG316/U and RG174/U |
