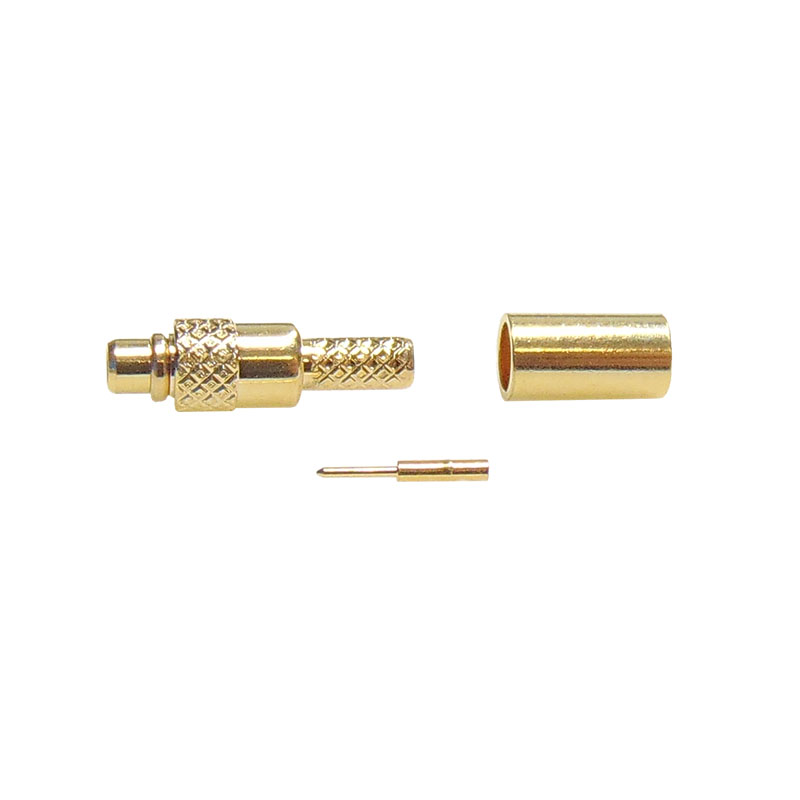

The ZLP-06-CST-GGAN is a cable mounted MMCX connector. This plug connector features the lock snap mechanism and works for all frequencies up to 6GHZ. This connector is designed to be used with RG178 cable type.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Metal Parts | Brass / Ni / Au |
| Insulators | PTFE |
| Contacts | Brass Gold Plated over Nickel |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group AN (RG178) |
