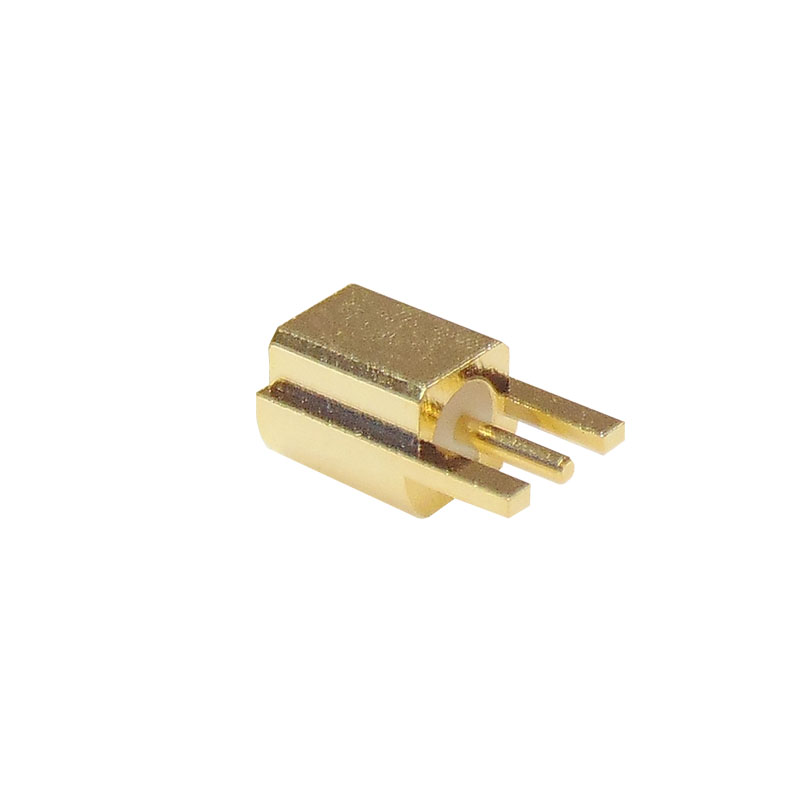

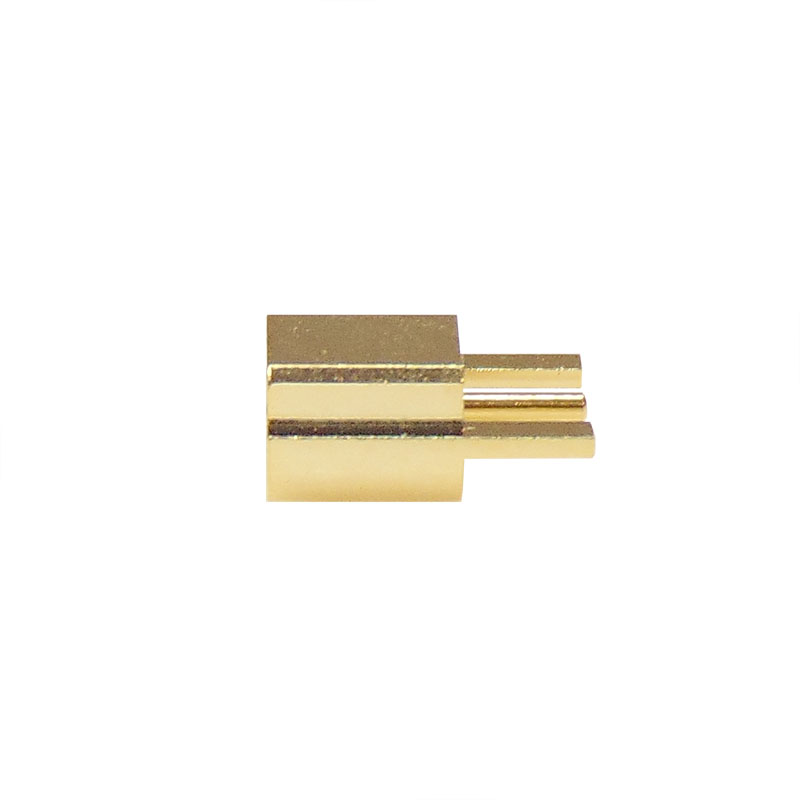

The ZLS-06-EM00-GG is an edge mounted PCB MMCX socket connector. The connector features an inline design where both the connector legs and pin are mounted on the same face of the PCB. The connector can be used for all frequencies up to 6GHz.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Metal Parts | Brass / Ni / Au |
| Centre Pin | BeCu / Au |
| Insulators | PTFE |
| Mounting Type | Edge Mounted |
