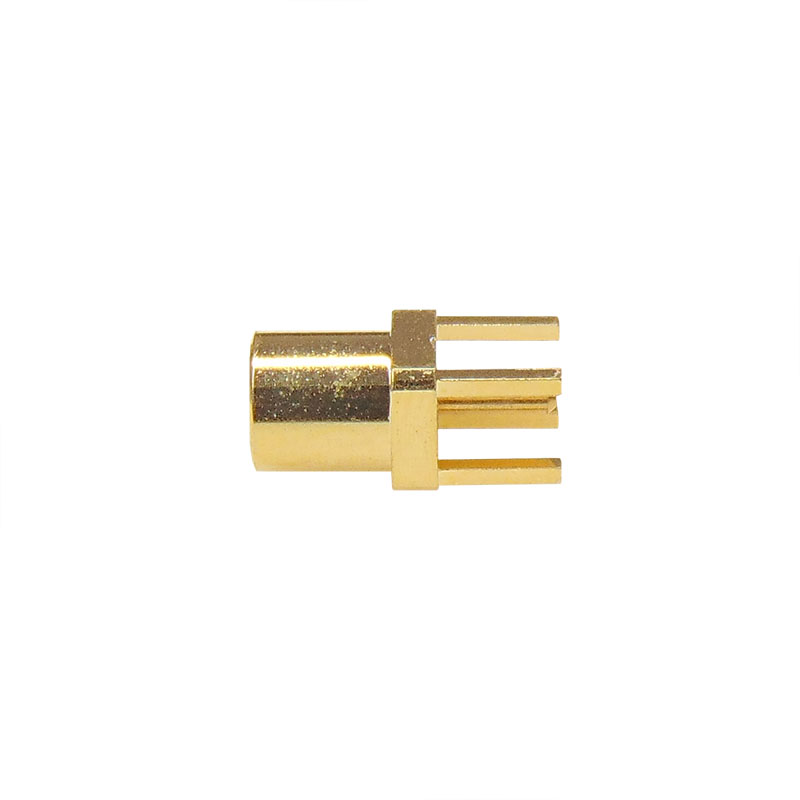

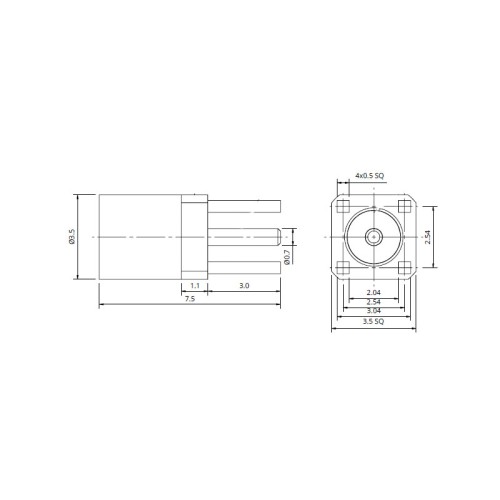

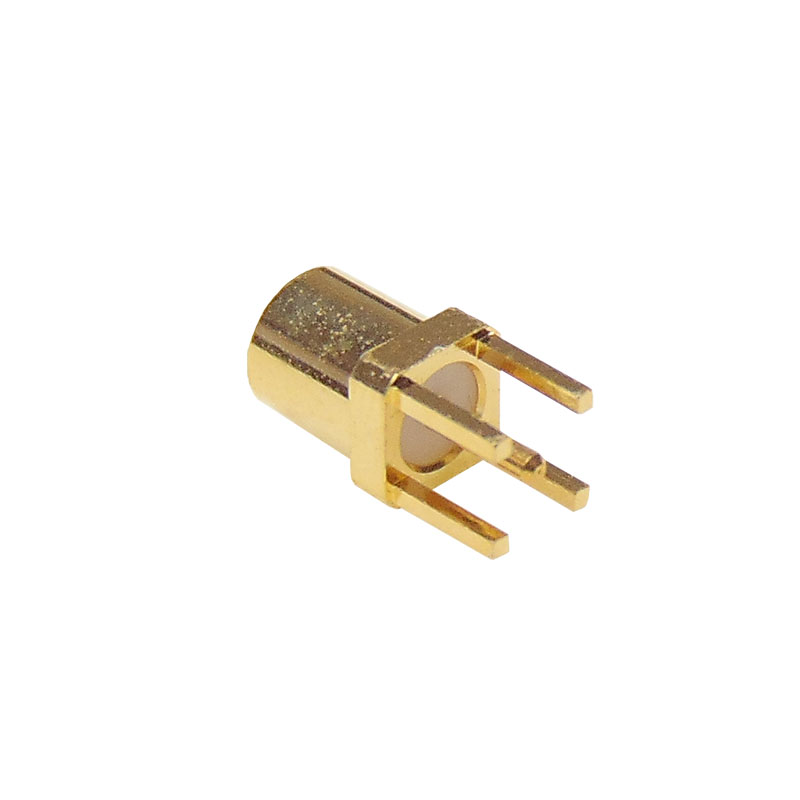

The ZLS-06-TE30-GG is a top entry PCB mounted connector which all frequencies up to 6GHz. The connectors have a leg length of 30mm and is gold plated throughout.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Metal Parts | Brass / Ni / Au |
| Centre Pin | BeCu / Au |
| Insulators | PTFE |
| Mounting Type | Top Entry |
