ZNS-06-CST-NGAD-W – MMCX Right Angle Cable Mounted Plug
ZNS-06-CST-NGAD-W – MMCX Right Angle Cable Mounted Plug

ZNS-06-CST-NGAD-W – MMCX Right Angle Cable Mounted Plug

Product Code: ZNS-06-CST-NGAD-W

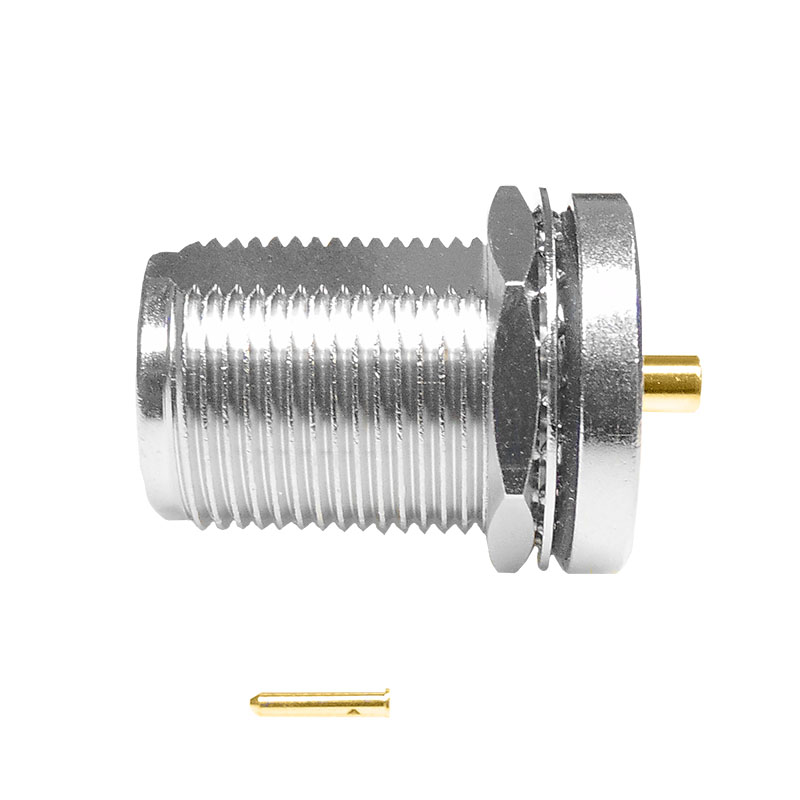

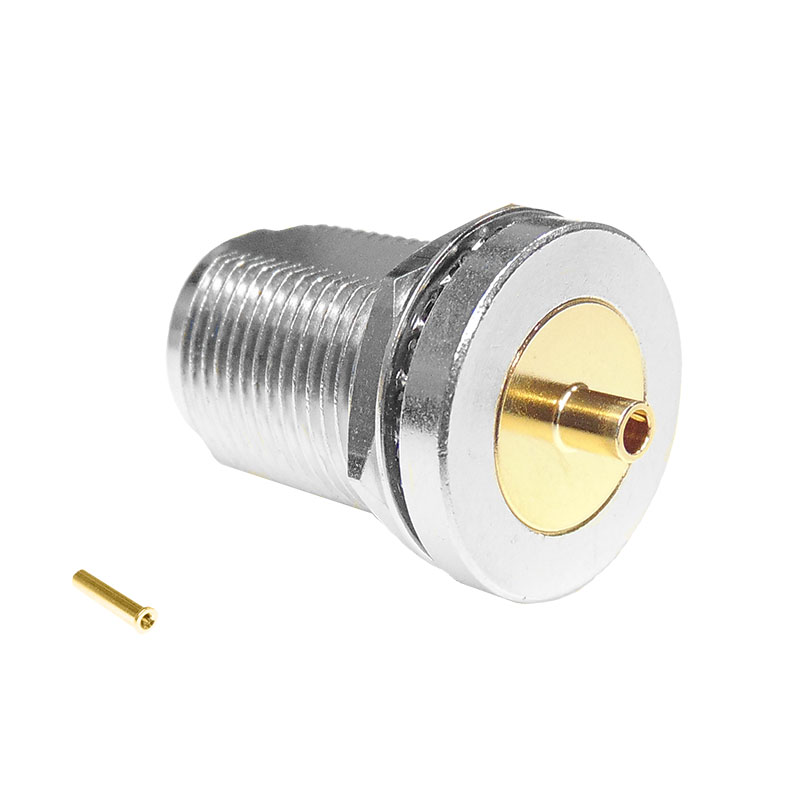

The ZNS-06-CST-NGAD-W is a straight cable mounted N-Type connector with a waterproof seal giving the connector an IP67 rating, and preventing problems with moisture or dust ingress. The connector is rated to 6GHz and fits a cable in the AD cable group which includes RG174.

Impedance 50Ω
Frequency Range 0 – 6 GHz
Metal Parts Brass / Ni / Au
Centre Pin BeCu / Au
Insulators PTFE
Seal Silicon Rubber
Mounting Type Cable Mounted
Hardware Supplied by hex nut and washer
Cable Types Cable Group AD RG188A/U, RG316/U and RG174/U
