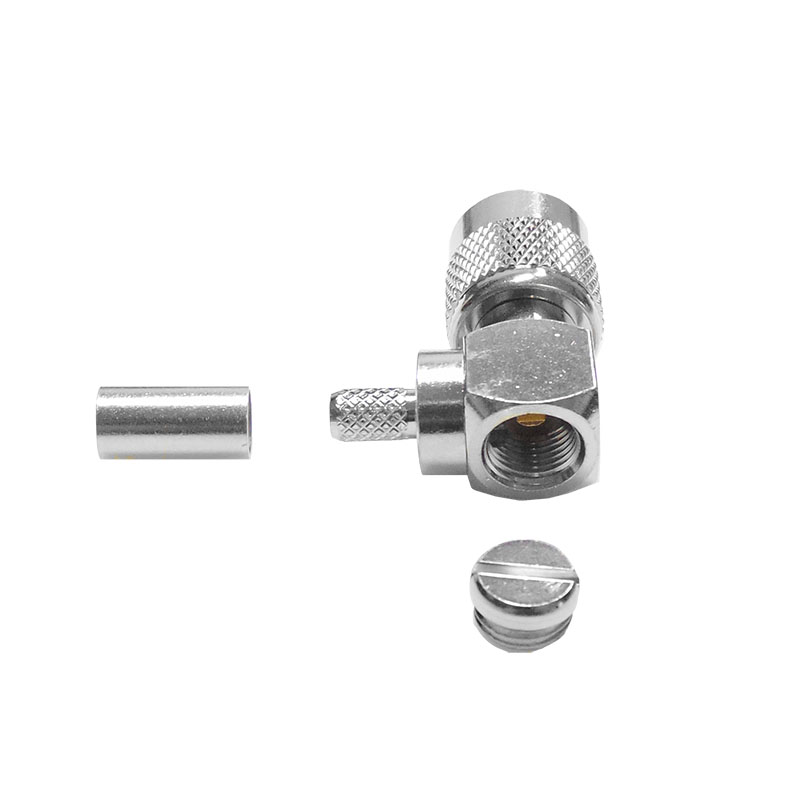

The ZTP-00-CRA-NGAE is a cable mounted right angle TNC plug. The connector is designed for cables in the AE cable group which includes RG58. The connector supports frequencies up to 500MHz.
| Impedance | 50Ω |
| Frequency Range | 0 – 500MHz |
| Metal Parts | Brass / Ni |
| Centre Pin | Brass / Au plated |
| Insulators | Delrin |
