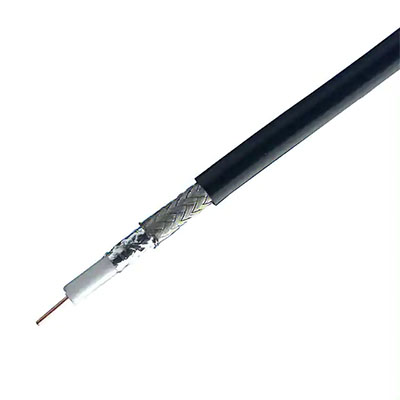

Belden 1505A Cable

General Description:

20 AWG solid .032" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), PVC jacket.

Suitable Applications:

SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p

Belden Cables are available in a range of colours to special order, with black as a standard colour.

We are able to offer cable assemblies or cable connectors to suit applications using this cable type. You can see more information about cable connectors on the links below and if you have a cable assembly you would like us to manufacture, please send more details to;  sales@cambridgeelectronics.com



Cable TypeCable GroupOperating FrequencyImpedanceJacket Material  / SizeDielectric Material / SizeCentre Conductor Material / SizeConductor TypeShielding Outer Conductor
Belden 1505AABDC-6GHz75 ohmsPVC / 5.92mmFHDPE / 3.68mmCopper / 0.81mmSolidTinned Copper Braid & Foil
