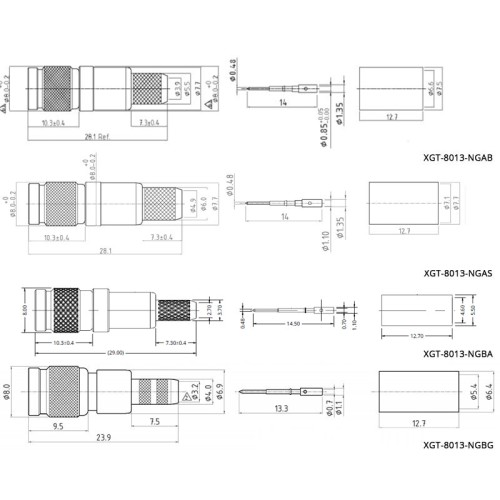

Download Engineering Drawing
Request 3D Model / Engineering Data
Request Quotation / Sample

XGT-8013-NGXX – DIN 1.0 / 2.3 Free Cable Plug

Product Code: XGT-8013-NGXX

The XGT-8013-NGXX range is a precision 75Ω cable mounted DIN 1.0 / 2.3 plug which is suitable for frequencies up to 6GHz. The connectors are part of the 6G-SDI CoaxVision™ range and are compatible with the SMPTE ST-2081. which allows 6Gbits/s over a single channel.

The range of 4 connectors support cable groups of AB (RG59B/U, 1505A), AS (RG6, 1694R, 4694R), AF (RG179) and BA (1855A, 4855R and mini RG59).

The following tools are recommended for use with this connector:
XGT-8013-NGAB = TLG 109
XGT-8013-NGAF = TLG 123
XGT-8013-NGBA = TLG 109
XGT-8013-NGBG = TLG 123

Impedance 75Ω
Frequency Range 0 – 6GHz
Metal Parts Brass / Ni
Centre Pin Brass / Au plated
Insulators PTFE
Mounting Type Cable Mount
Cable Types Cable Group AB: (RG59 – 1505A – RG140/U- 4505R)

Cable Group AF: (RG179 – RG179B/U- RG187A/U)

Cable Group AS: (Belden 1694A – Belden 1694F – Belden 4694R – Canford SDV-F-R – Canford SVD-XF)

Cable Group BA: (1855A – mini RG59 – 4855R – RG180BU)

Cable Group BG: (UHD 0.6/2.6, B1855ENH)
