Specification
Coding D
Contact 2, 3, 4, 5
Shielded Yes
Electrical
Withstanding Voltage 500V AC/Minute (2 to 5 Pins)
Current Rating 4A AC/DC
Voltage Rating 250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Material
Contacts Brass Gold Plated
Insulators UL94V-0 Black
Connector Body Zinc Alloy Nickel Plated
Seal Silicone
Nut P9 or M16 Brass Nickel Plated
Environmental
Operating Temperature -40 to 100oC
Waterproof Rating IP67
General Information
Mounting Type PCB

CC12-XXP-FD07-PBSX - M12 Front Fastening Shielded Die Cast Plug (D Code)

  • Product Code: CC12-XXP-FD07-PBSX

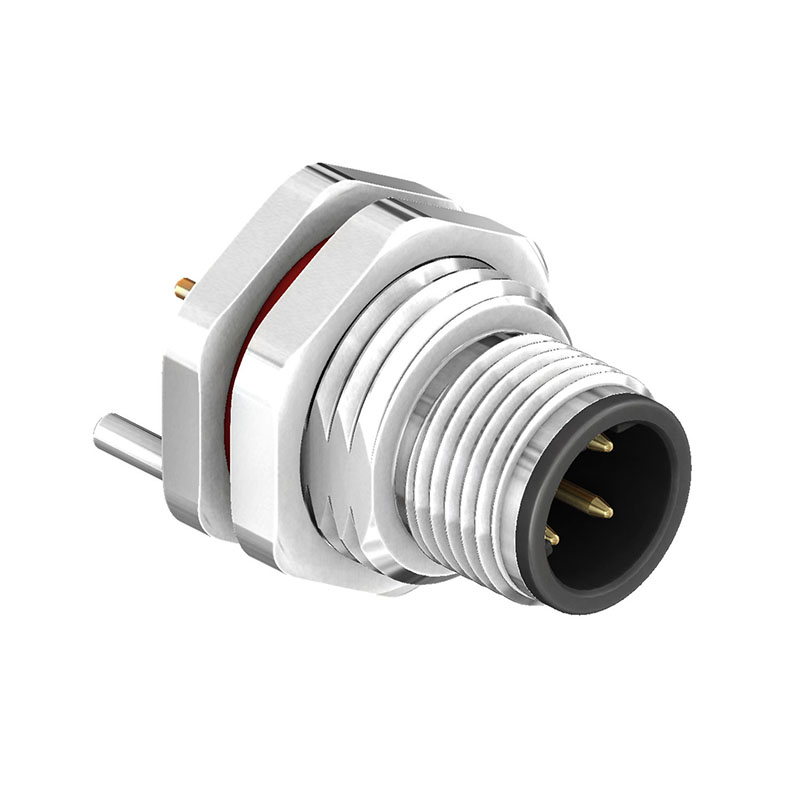

The CC12-XXP-FD07-PBSX is an M12 circular plug connector which is available with 2 to 5 pins and a shielding pin in a D coding. The connector features straight pins to the rear for mounting directly to a PCB. The M12 connectors are designed for use in industrial applications and feature a small and robust design which has a waterproof rating of IP67, which protects your equipment from entry of water or dust into your system.

Features

  • Straight pins to mount directly onto a PCB
  • Shielding Pin
  • Available in D coding
  • 2 to 5 Pins
