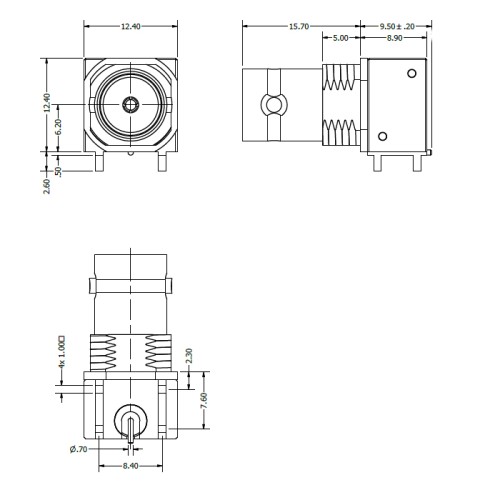

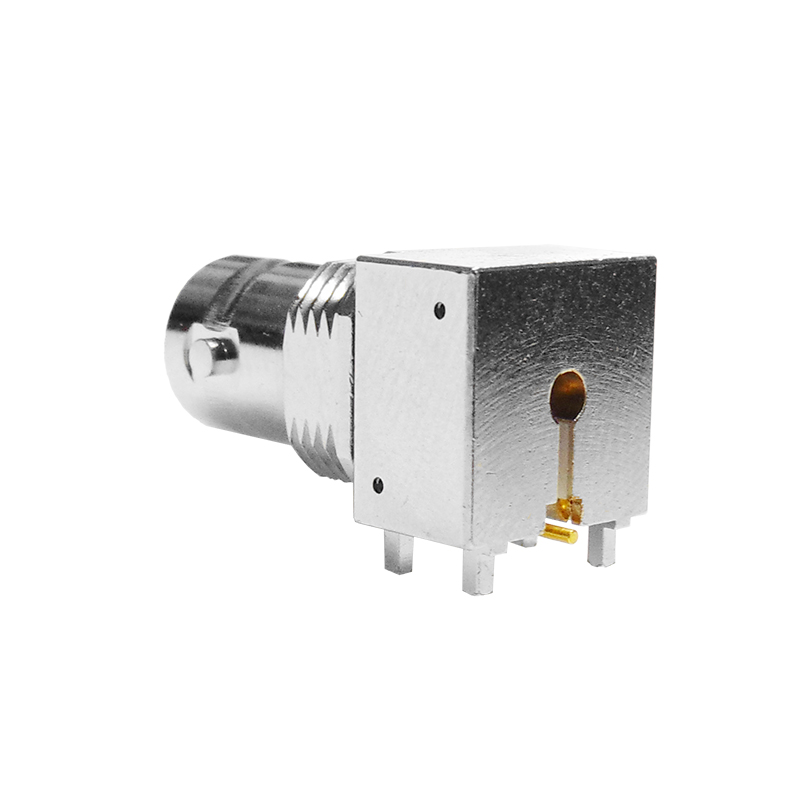

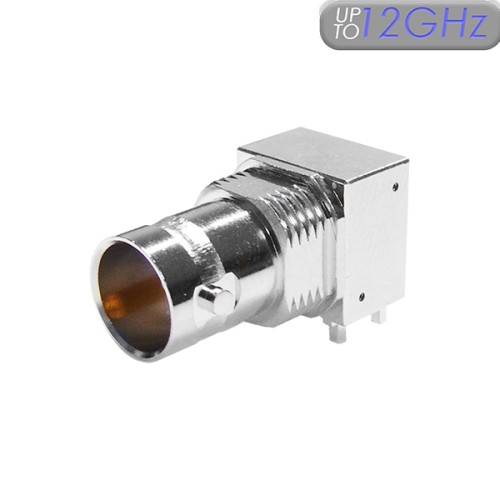

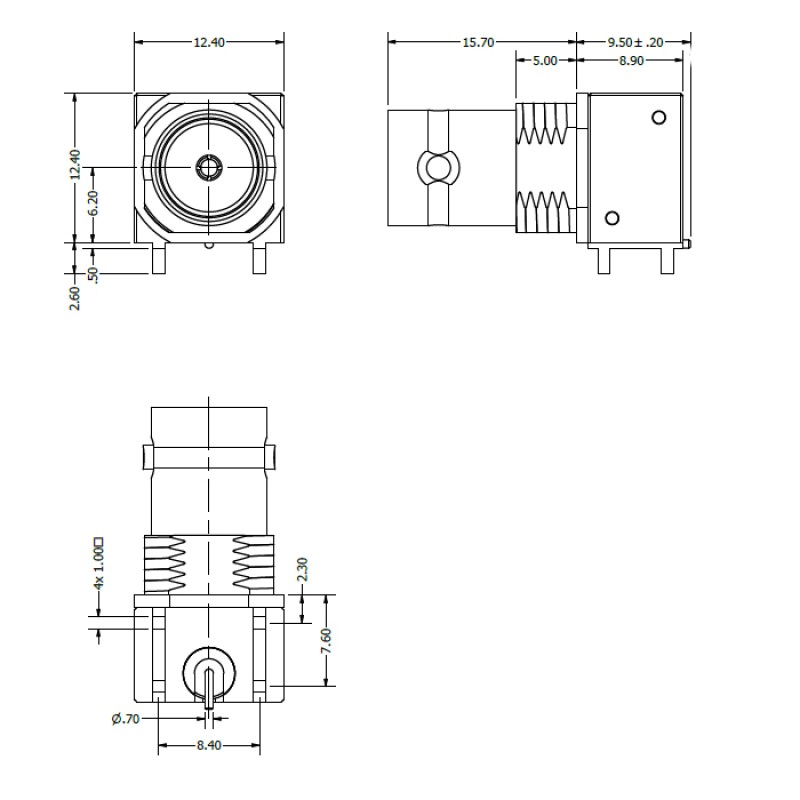

XBS-12-RB21-NNRX -Short Right Angle mounted BNC Stacking Connector

• Product Code: XBS-12-RB21-NNRX

Our 12 GHz Precision BNC coaxial connectors are engineered for 4K/Quad HD and Ultra HD broadcast applications, while fully complying with the JIIA CoaXPressspecification. These high-performance connectors enable a full 12 GHz channel through a single connection, ensuring superior signal integrity and reliability.

For maximum space efficiency, our BNC stacking connectors are designed to deliver the highest packing density in a diagonal array configuration. They can be manufactured in tall-and-short or short-and-tall combinations, with any number of interfaces integrated into a single connector array, offering unmatched
flexibility in system design.

These BNC connectors feature a surface-mounted pin and are carefully tuned to minimize crosstalk at higher frequencies. Designed for efficient production, they can be reflow soldered directly onto the PCB, simplifying assembly and ensuring reliable performance.
