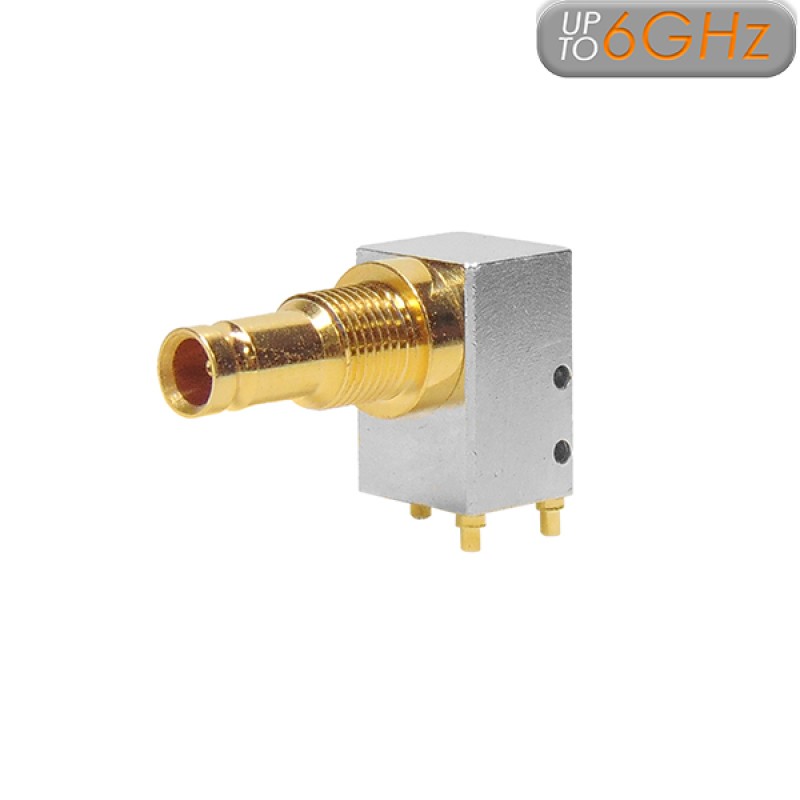

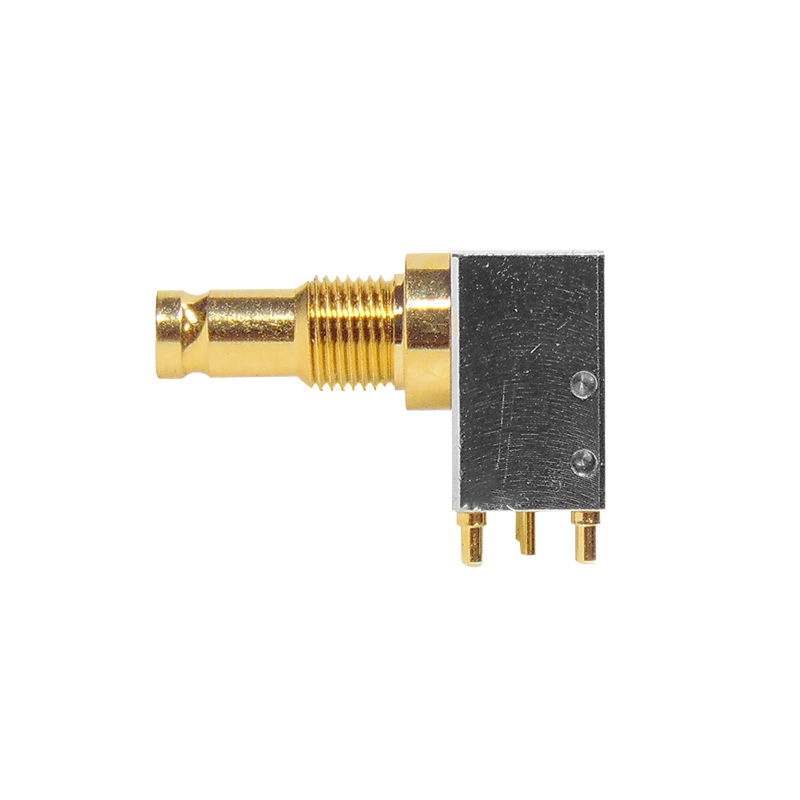

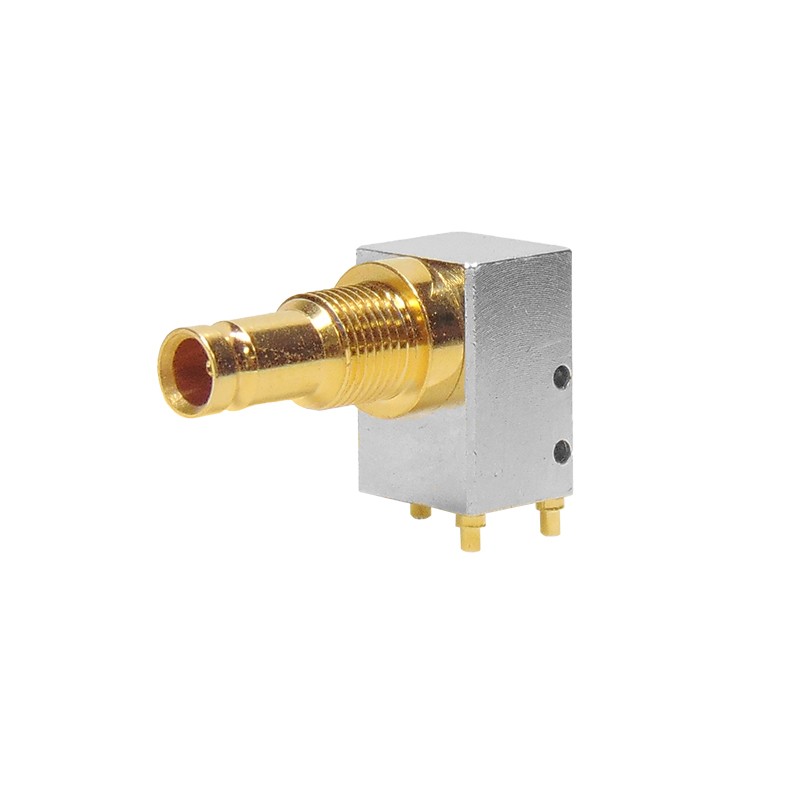

XGS-06-RB18-NGIJX -Tall Right Angle mounted DIN 1.0/2.3 Stacking Connector

• Product Code: XGS-06-RB18-NGIJX

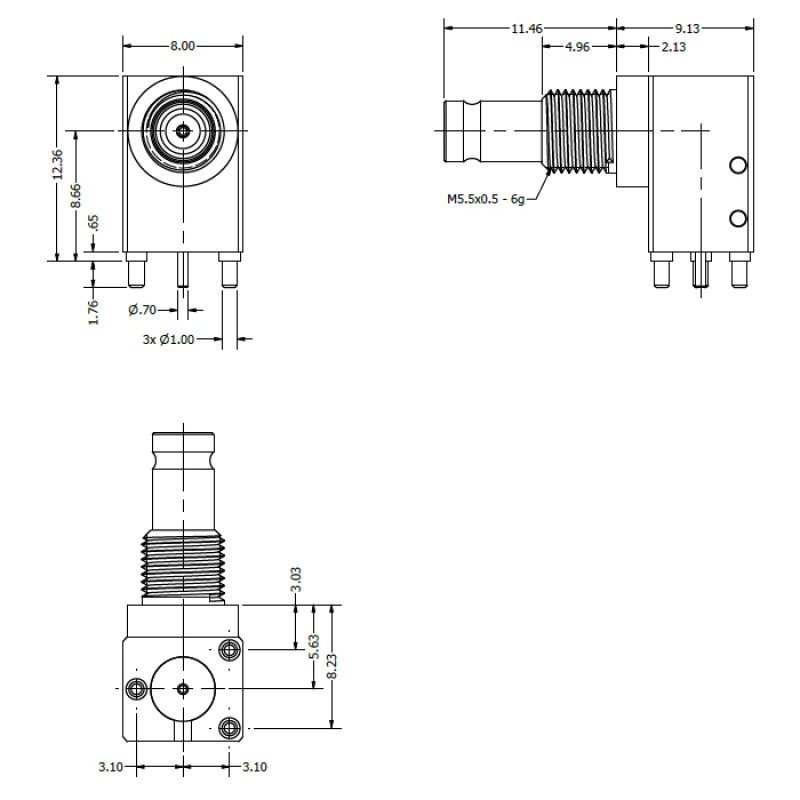

Our 6 GHz Precision DIN 1.0/2.3 coaxial connectors comply with SMPTE ST2081.1 and CXP-6 standards, supporting data rates up to 5.94 Gbit/s per channel with superior signal integrity and reliability. For maximum space efficiency, the DIN 1.0/2.3 stacking connectors are engineered for high-density diagonal array configurations within the PCIe standard form factor. They can be manufactured in tall-and-short or short-and-tall combinations, with any number of interfaces integrated into a single connector array, delivering unmatched design flexibility. CEI provides custom array drawings with dedicated part numbers, simplifying system integration.

Each connector features a through-hole pin and is precisely tuned to minimize crosstalk at higher frequencies, ensuring stable performance in demanding applications.
