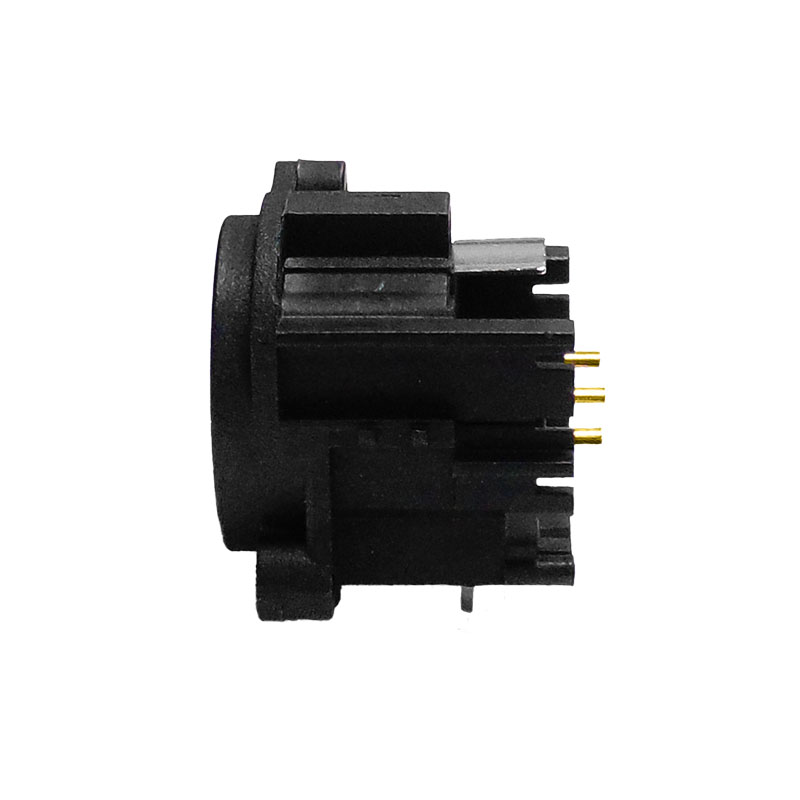

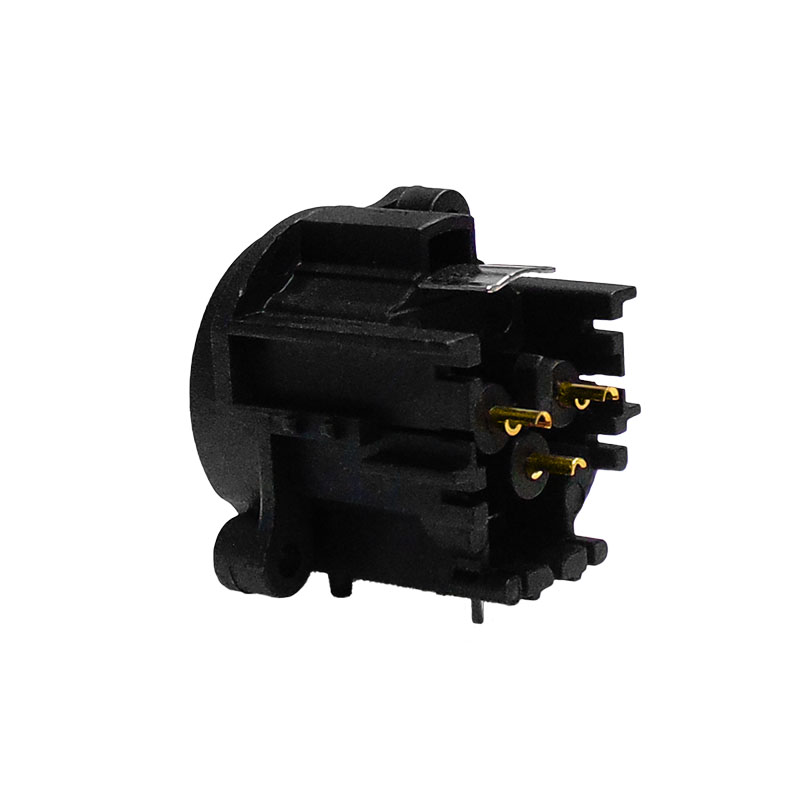

This high-quality panel mounted XLR plug, is available in 3, 4 or 5 pin configuration and features a rectangular die cast shell constructed from zinc alloy and then finished with a black chrome coating, providing outstanding strength, dimensional stability, and long term durability. Designed with rear solder buckets for convenient cable termination, it offers a compact and flexible interconnect solution suitable for a wide range of applications.
The precision- machined brass contacts are gold-plated to deliver superior conductivity, corrosion resistance, and a long service life. The shell also features a grounding pin for additional protective shielding for signal integrity. Ideal for professional audio, broadcast, and industrial signal applications.
Available in different pin variations:
AXRS-3P-ZBDGB – 3 Pin
AXRS-4P-ZBDGB – 4 Pin
AXRS-5P-ZBDGB – 5 Pin
Key Features:
- 3 to 5 pin XLR plug (male), panel-mount type
- Die cast zinc alloy with black chrome coating shell
- Straight pins for PCB mounting
- Precision-machined brass contacts with gold plating
- Excellent electrical performance and corrosion resistance
