AXSS-3S-P1PGB – 3 Pin Solder Bucket Panel Mounted XLR Socket

Product Code: AXSS-3S-P1PGB

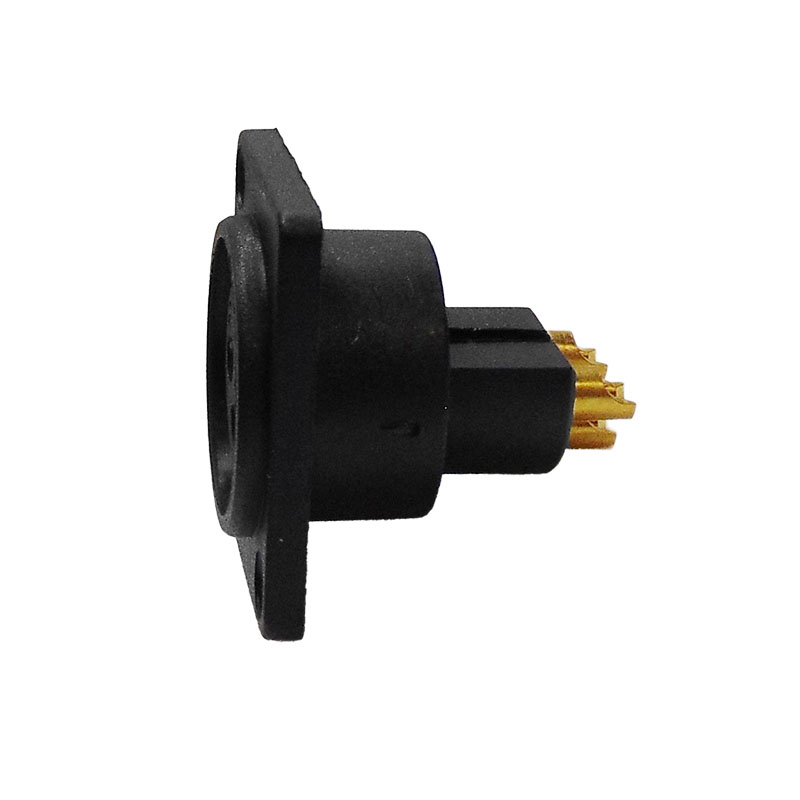

This high quality 3 pin panel mount XLR socket features a square plastic shell constructed from PA-6 glass fibre reinforced material, providing outstanding strength, dimensional stability, and long term durability. Designed with rear solder buckets for convenient cable termination, it offers a compact and flexible interconnect solution suitable for a wide range of applications.

The precision machined contacts are manufactured with a phosphor bronze interface with brass rear solder bucket which is entirely gold plated to ensure excellent conductivity, corrosion resistance, and extended service life. This connector is ideal for professional audio, broadcast, and industrial signal transmission environments.

Key Features:

• 3-pin XLR socket (female), panel-mount type
• Durable PA-6 glass fibre reinforced plastic shell

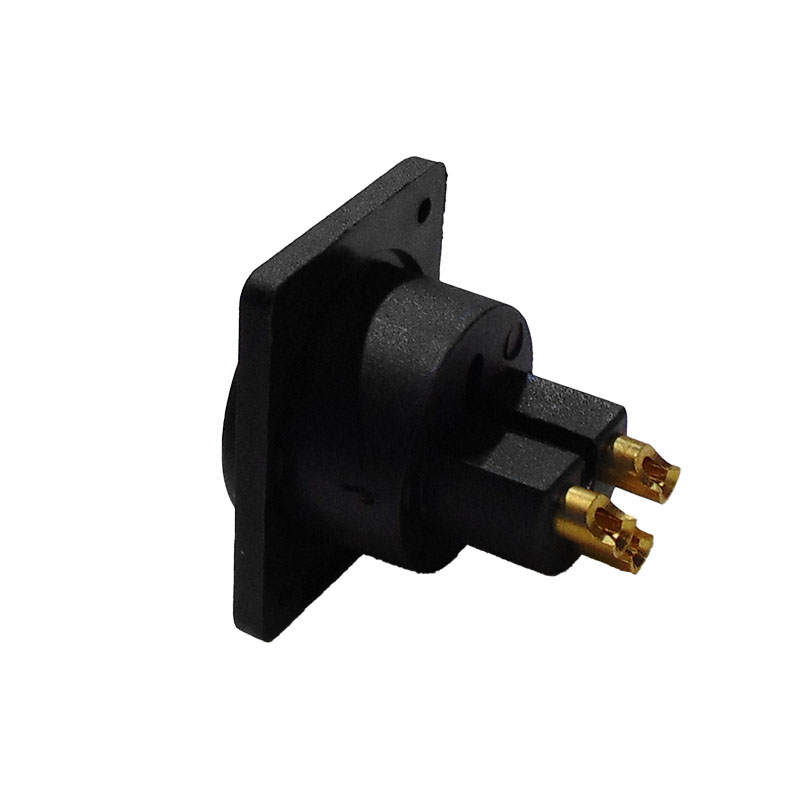

• Rear solder buckets for easy cable wiring
• Precision-machined phosphor bronze and brass contacts with gold plating
• Excellent electrical performance and corrosion resistance

Current Rating 6A
Dielectric Strength 1500 V DC
Contact Resistance <5m Ohm
Insulation Resistance >1G Ohm
Body Material PA66 (nylon 66)
Body Plating N/A
Pin Material Brass/Phosbronze
Pin Plating Gold
Mating Cycles >1000
Insertion force <20N
Wire Size 24 to 26 AWG
Temp range -30C to +80C
