AXSS-3S-P1PSA – 3 Pin Straight Panel Mounted XLR Socket

AXPS-3P-P1DGA – 3 Pin Straight Panel Mounted XLR Plug

This high quality 3 pin panel mount XLR plug features a round plastic shell made from PA-6 glass fibre reinforced material, ensuring exceptional strength and long term durability. Designed with straight pins for direct PCB mounting, it offers a compact and reliable interconnect solution.

The precision machined brass contacts are gold-plated to deliver superior conductivity, corrosion resistance, and a long service life. Ideal for professional audio, broadcast, and industrial signal applications.

Key Features:

3-pin XLR plug (male), panel-mount type
Durable PA-6 glass fibre reinforced plastic shell
Straight pins for PCB mounting
Precision-machined brass contacts with gold plating
Excellent electrical performance and corrosion resistance

AXPS-3S-P1PGA – 3 Pin Straight Panel Mounted XLR Socket

This high quality 3 pin panel mount XLR socket features a round plastic shell made from PA-6 glass fibre reinforced material, ensuring exceptional strength and long-term durability. Designed with straight pins for direct PCB mounting, it offers a compact and reliable interconnect solution.

The precision machined phosphor bronze contacts are gold plated to deliver superior conductivity, corrosion resistance, and a long service life. Ideal for professional audio, broadcast, and industrial signal applications.

Key Features:

3-pin XLR socket (female), panel-mount type
Durable PA-6 glass fibre reinforced plastic shell
Straight pins for PCB mounting
Precision-machined phosphor bronze contacts with gold plating
Excellent electrical performance and corrosion resistance

AXPS-3S-P1PGA-PT – 3 Pin Straight Panel Mounted XLR Socket with Push Button and Grounded Pin

This high quality 3 pin panel mount XLR socket features a round plastic shell constructed from PA-6 glass fibre reinforced material, providing outstanding mechanical strength, dimensional stability, and long-term durability. Designed with straight pins for direct PCB mounting, it offers a compact and reliable interconnect solution for space-constrained applications.

The connector incorporates a push button locking mechanism to ensure a secure and stable mating connection. The precision machined phosphor bronze contacts are gold plated to deliver superior conductivity, enhanced corrosion resistance, and an extended service life. This connector has an addition of a grounding to the chassis on pin 1 for extra protection. Ideal for professional audio, broadcast, and industrial signal transmission systems.

Key Features:

• 3-pin XLR socket (female), panel-mount type
• Durable PA-6 glass fibre reinforced plastic shell
• Straight pins for direct PCB mounting
• Push-button locking mechanism for secure connection
• Precision-machined phosphor bronze contacts with gold plating
• Grounded pin 1 to chassis for extra signal protection

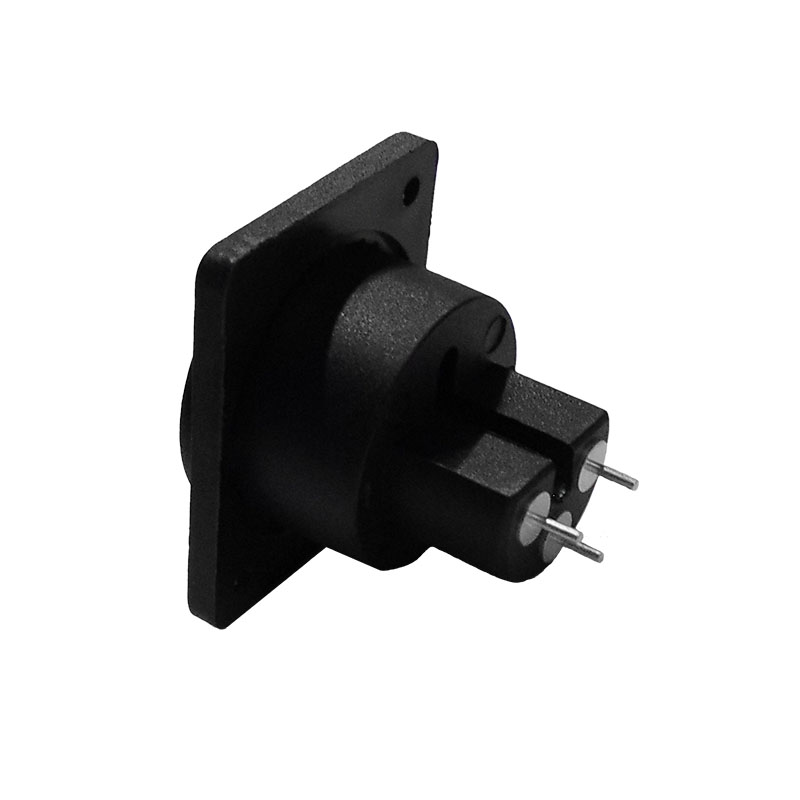

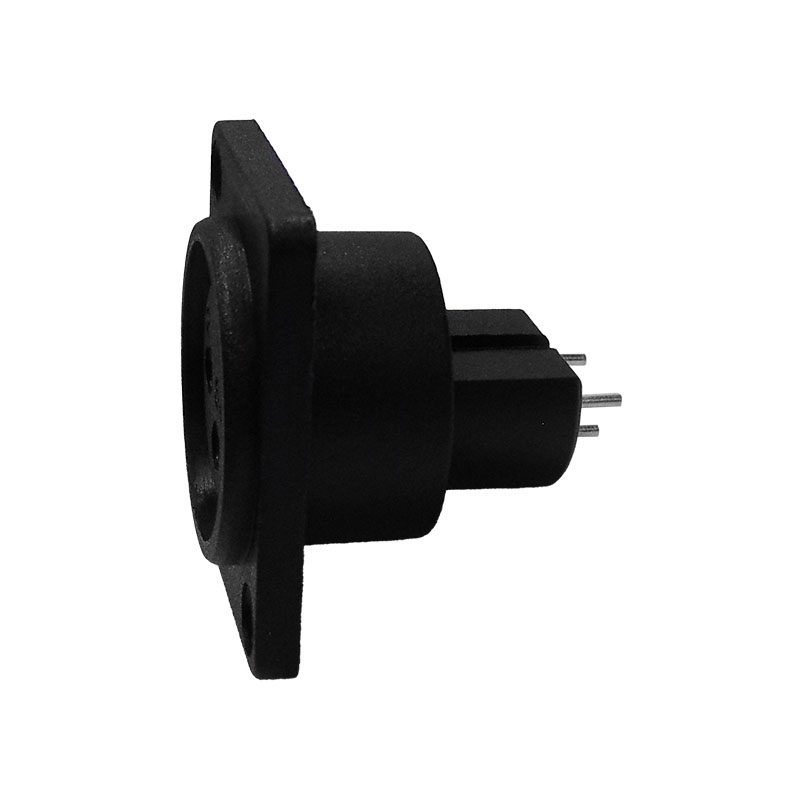

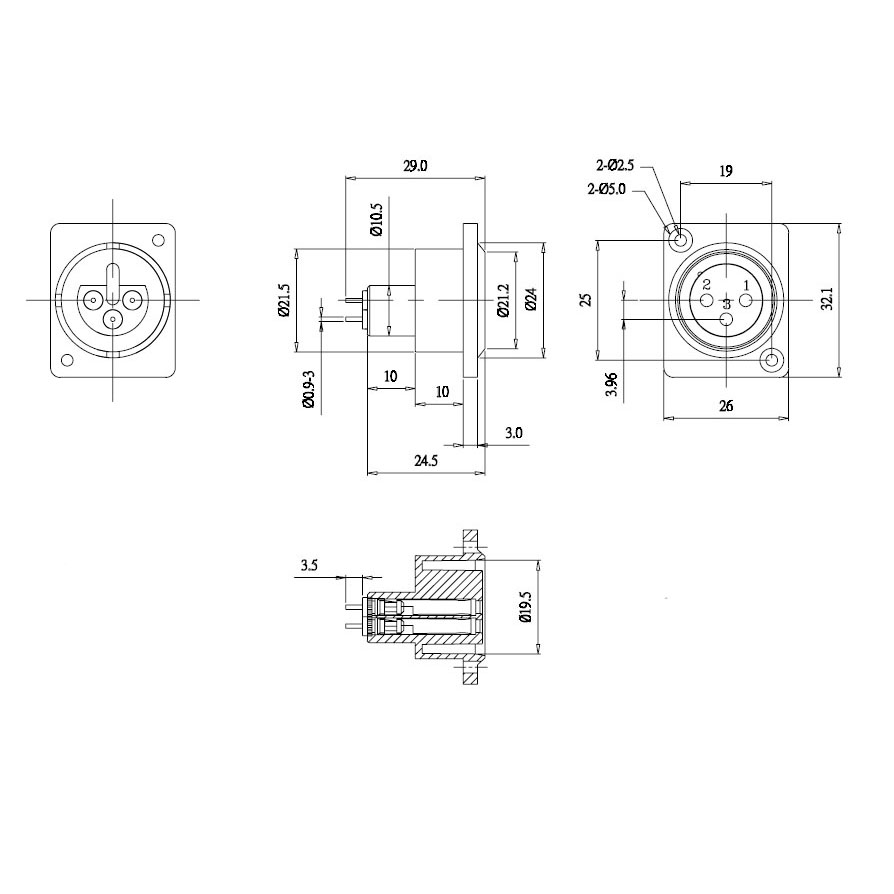

AXSS-3P-P1DSA – 3 Pin Straight Panel Mounted XLR Plug

This high quality 3 pin panel mount XLR plug features a square plastic shell constructed from PA-6 glass fibre reinforced material, providing outstanding strength, dimensional stability, and long term durability. Designed with straight pins for direct PCB mounting, it offers a compact and reliable interconnect solution for space-constrained applications.

The precision machined brass contacts are silver plated to deliver superior conductivity, corrosion resistance, and a long service life. Ideal for professional audio, broadcast, and industrial signal applications.

Key Features:
