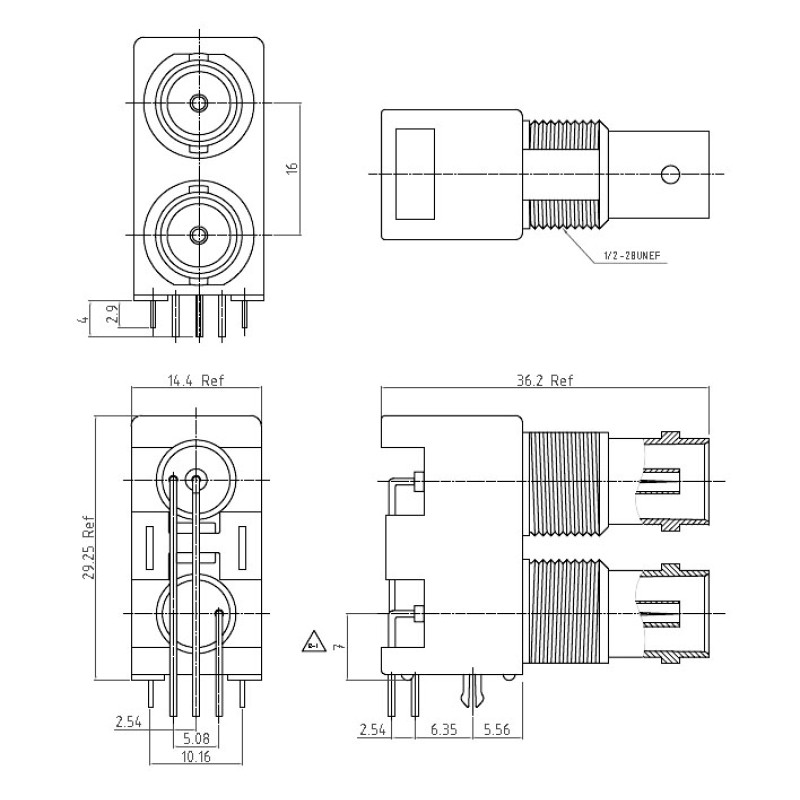

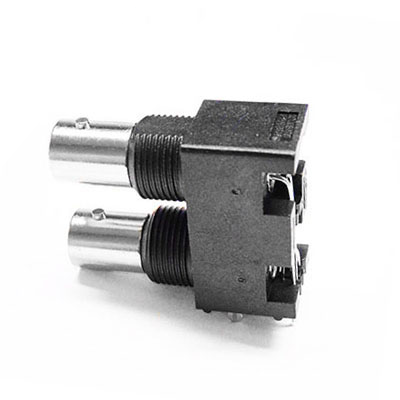

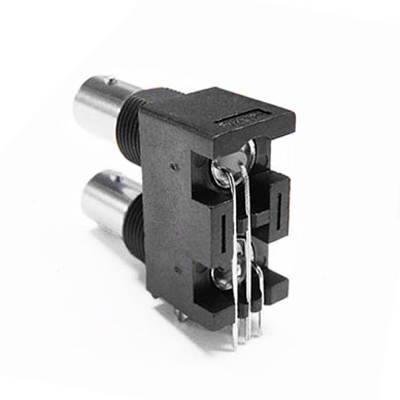

The C-SX-045 is a dual port vertical BNC socket for right angled PCB mounting. This connector comes supplied with a lock washer and hex nut.
| Impedance | 75 ohms |
| Frequency Range | 0 – 1GHz |
| Metal Parts | Nickel |
| Centre Pin | Phosphor Bronze / 2µ Au |
| Insulators | Polypropylene |
| Leg Length | 2.9mm |
| Hardware | Supplied with Lock Washer and Hex Nut |
