The C-SX-155 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, we would recommend our part XPS-12-EB16-GG-AZ as an alternative, which as part of our core Micro BNC range offers a cost-effective option for new designs.

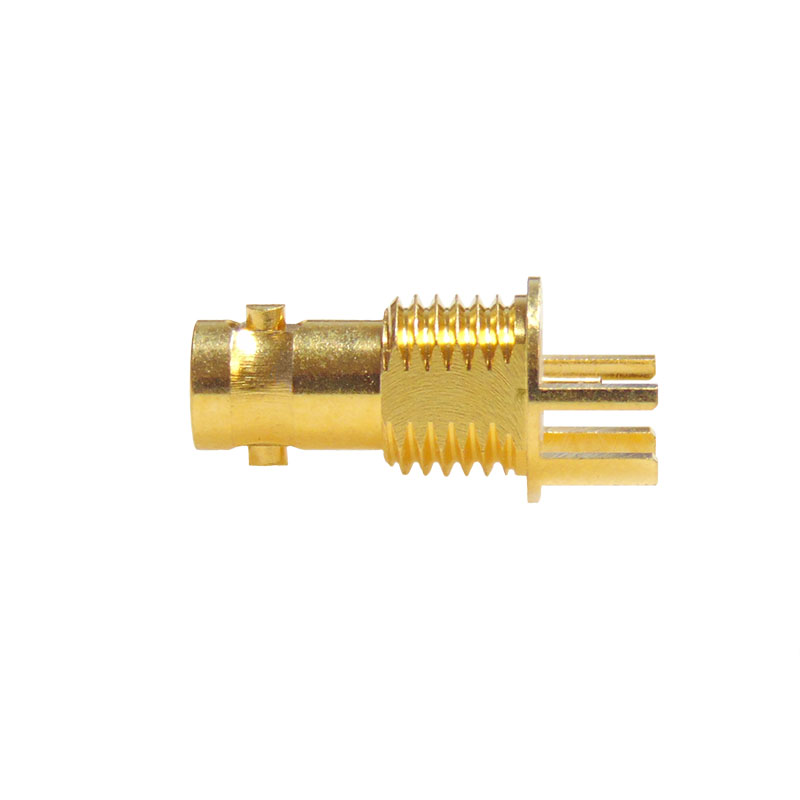

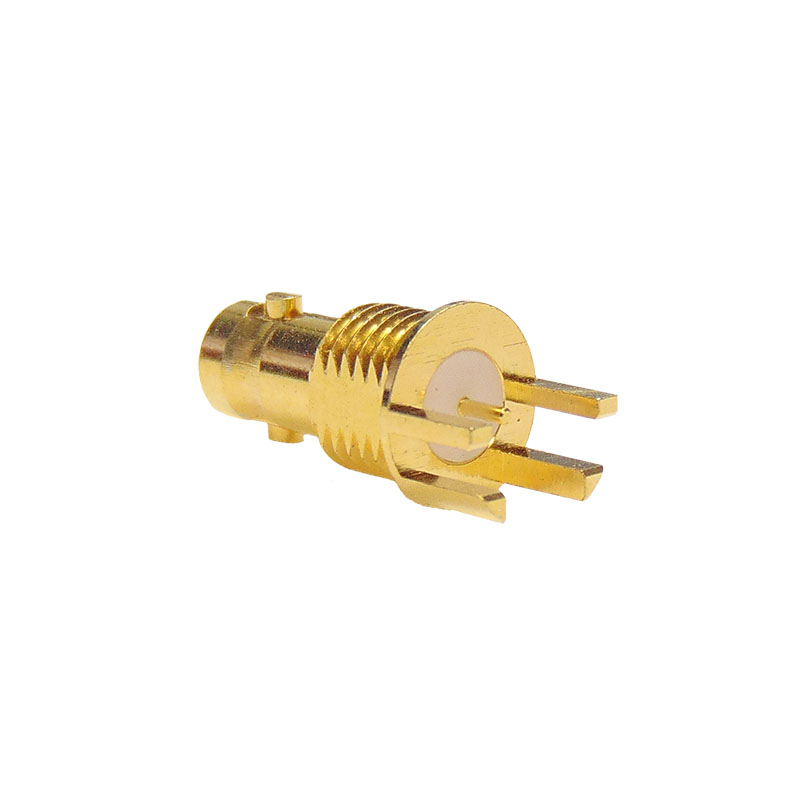

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Connectors 12GHz CoaxVision™ BNC Connectors in both halves. The C-SX-155 connector is a PCB edge mounting Micro BNC bulkhead socket for PCB thicknesses of 2.0mm and is supplied with nut.
