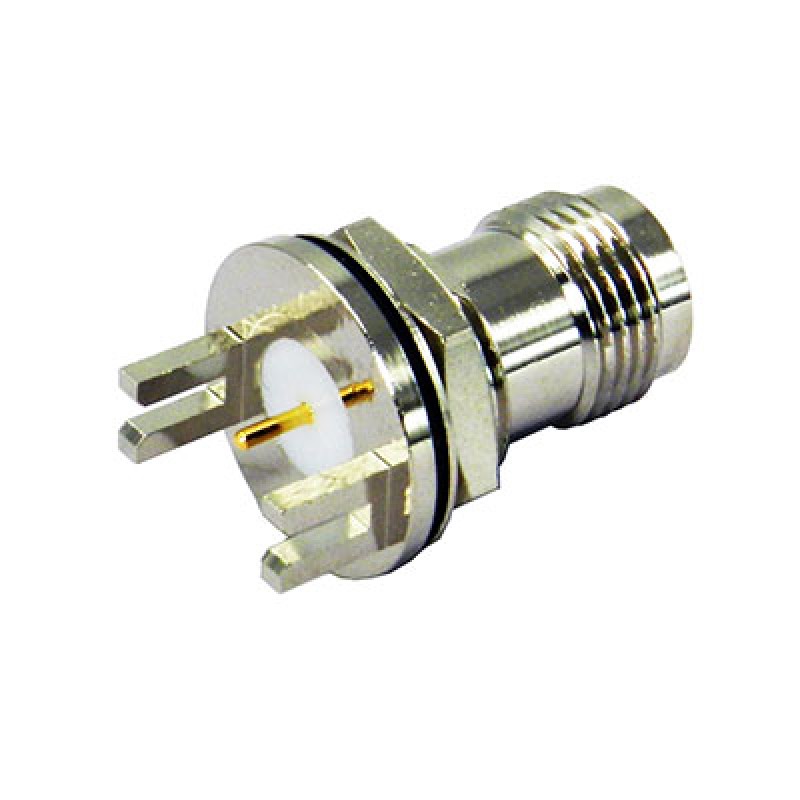

The C-SX-157 is a PCB edge mounted TNC Connector which meets the SMPTE 424M standard, allowing bit-rates of 2.970Gbit/s over a single coaxial connection. The connector is suitable for PCB thicknesses up to 1.55mm to 1.6mm and each connector comes with nut and washer.
| Impedance | 75Ω |
| Frequency Range | 0 -6.25GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 0.2mΩ |
| Reflection Factor (VSWR) | 1.07 (max) DC – 3.0GHz 1.19 (max) 3.0 – 6.0GHz |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ”Au, Phosphor Bronze / 10µ”Au, Phosphor Bronze / 10µ”Au |
| Insulators | PTFE |
| Seal | Silicon Rubber |
| Temperature Range | -65 to +165°C |
| Mating Cycles | 250 |
| Mounting Type | Edge Mounted |
| Board Thickness | 1.6mm |
| Hardware | Supplied with hex nut and shakeproof washer |
| Processing | Maximum hand soldering temperature 265°C |
