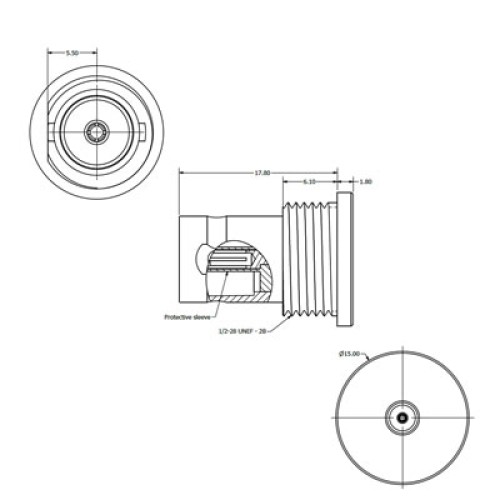

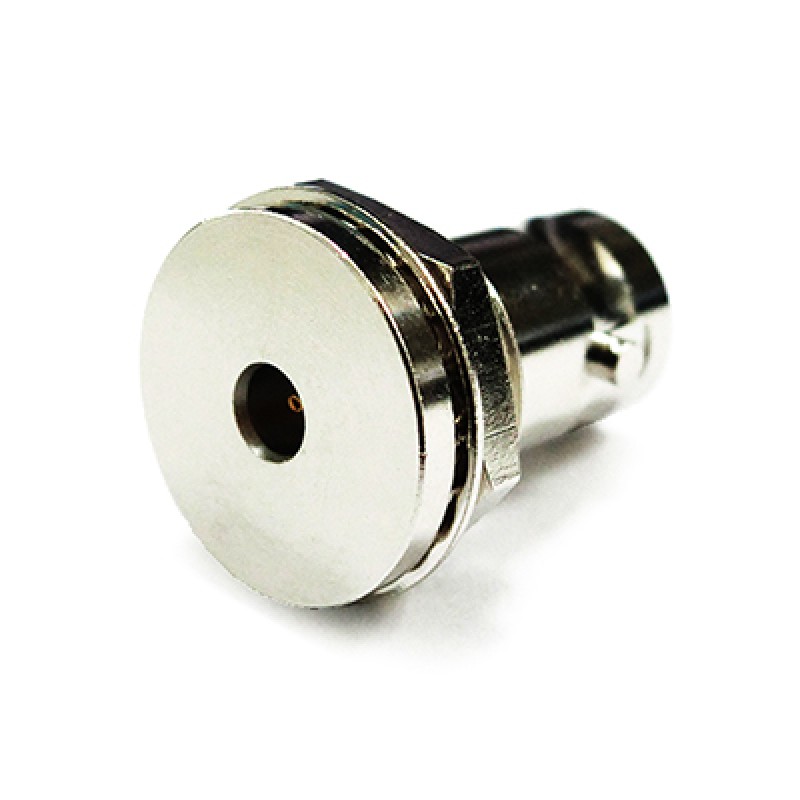

The C-SX-169 is a BNC socket to MCX socket adaptor. This is a precision 75Ω adaptor which is suitable for frequencies up to 12GHz.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 170Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Contact Resistance | BNC: Centre contact 1.5mΩ BNC: Outer contact 1.0mΩMCX: Centre contact 5.0mΩ MCX: Outer contact 2.5mΩ |
| Reflection Factor (VSWR) | 1.15 (max) DC – 6GHz 1.40 (max) 6 – 12 GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Hardware | Supplied with hex nut and shakeproof washer |
