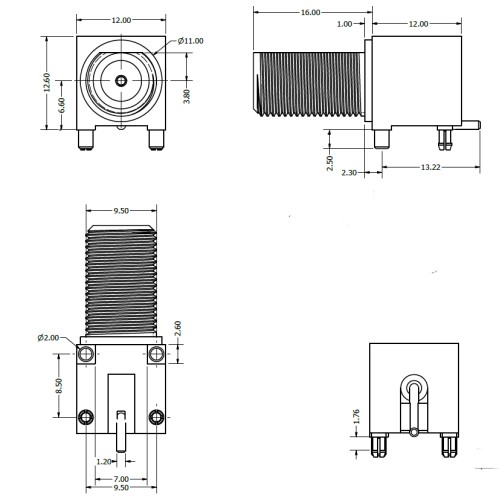

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

C-SX-215 – Right Angle Surface Mounting F Connector

Product Code: C-SX-215

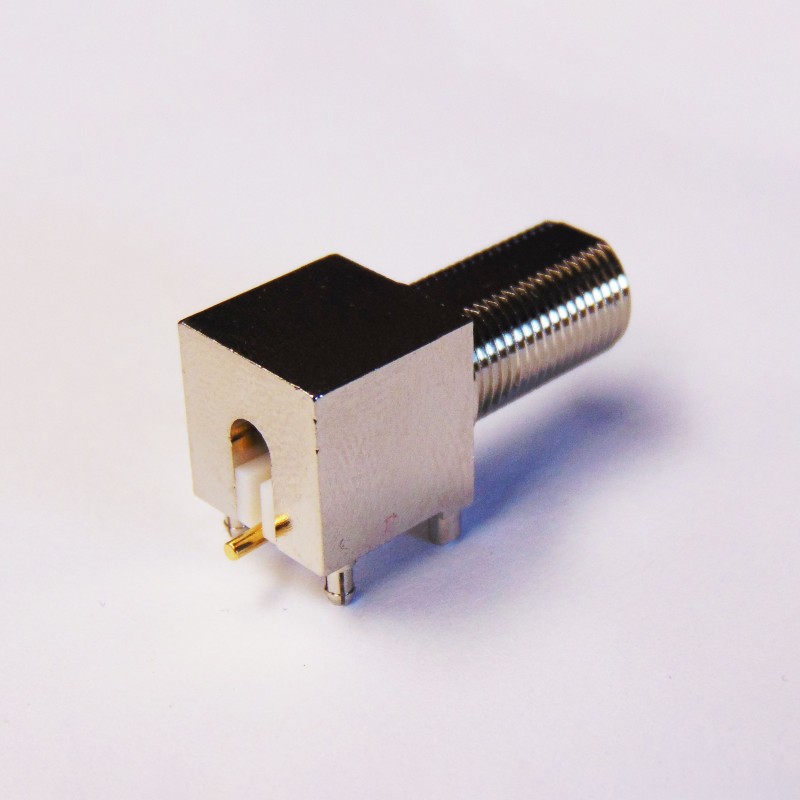

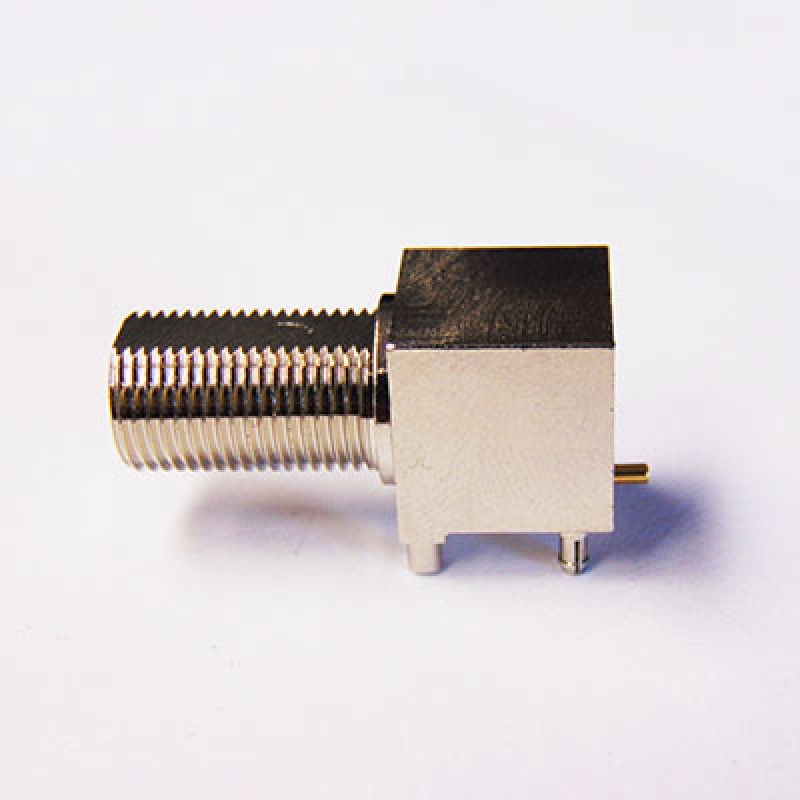

This precision 75Ω F Connector is a right-angle mounted PCB connector which is suitable for frequencies up to 6GHz. The connector is part of the 6G Coaxvision range and meets the SMPTE ST-2081 standard for 6Gbits/s over a single channel.

The C-SX-215 is a right-angled F Type connector, which is part of our Rapid ConneXions range, has been optimised for machine placement. The connector features a surface mounted pin and locking posts and is designed for a board thickness of 1.6mm. As a specialist connector design house, we can offer other board thicknesses if required.

Impedance 75Ω
Frequency Range 0 – 6GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.23 (max) DC – 3.2GHz
1.48 (max) 3.2 – 6GHz
Connector Type Female
Metal Parts Brass / Ni
Centre Pin Phosphor Bronze / 10µ”Au, Phosphor Bronze / 10µ”Au
Insulators PTFE
Temperature Range -20 to +85°C
Mating Cycles 200
Mounting Type Right Angled
Board Thickness 1.6mm
Hardware None
Processing with 300s dwell time, Maximum reflow and hand soldering temperature 260°C
