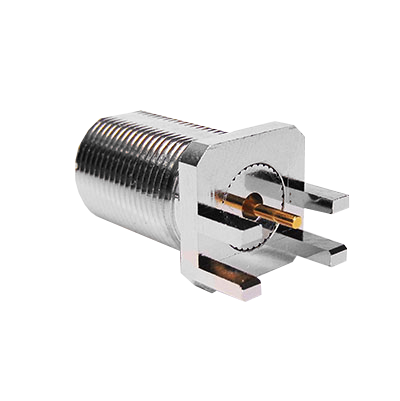

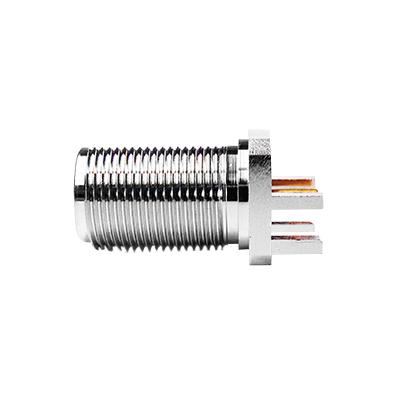

PCB Edge Mount ‘N’ Series connector suitable for use in lower frequency microwave systems, where ruggedness and high transmission power are needed. Typical applications include spectrum analysers , Mobile communication base stations and RF plasma generators. The C-SX-235HT is a bulkhead edge mounting N Type socket connector which for use with printed circuit boards of thickness 4.0mm. The connector is supplied with nut and washer.
| Impedance | 50Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 1000Vrms |
| Dielectric Withstanding Voltage | 2500Vrms |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Reflection Factor (VSWR) | 1.24 (max) DC – 2.45GHz 1.63 (max) 2.45-4.90 GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
| Mounting Type | Edge Mounted |
| Hardware | Supplied with hex nut and washer |
| Processing | Maximum wave and hand soldering temperature 260°C |
