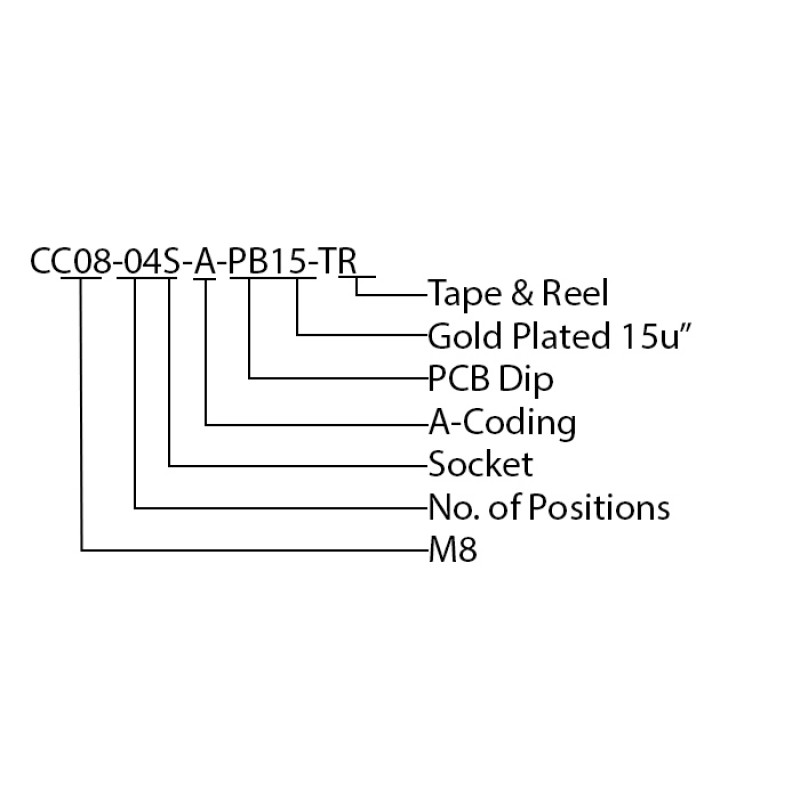

The CC08-04S-A-PB15-TR is a M8 socket receptacle with an Acoding. This 4-position socket has straight pins for soldering directly to a PCB. The connectors come in a tape and reel
packaging, ready for use with pick and place production machinery.
Features
| Withstanding Voltage | 750V AC/Minute |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥100MΩ |
| Current Rating | 4A AC/DC |
| Voltage Rating | 250V AC/DC |
| Insulators | High Temperature Plastic (Ny66 UL94V-0) |
| Contacts | Phosphor Bronze Gold Plated |
| Operating Temperature | -40 to 85oC |
| Mounting Type | PCB |
| Coding | A |
| Contact | 4 |
