CC08-XXP-X-MM – M8 Plug for Over-moulded Cables (A and B Code)
CC08-XXP-X-MM – M8 Plug for Over-moulded Cables (A and B Code)

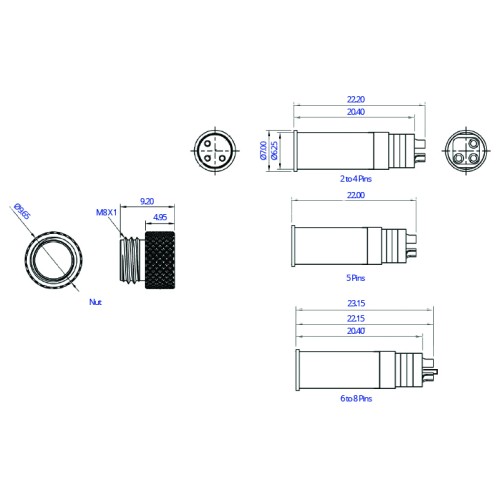

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

CC08-XXP-X-MM – M8 Plug for Over-moulded Cables (A and B Code)

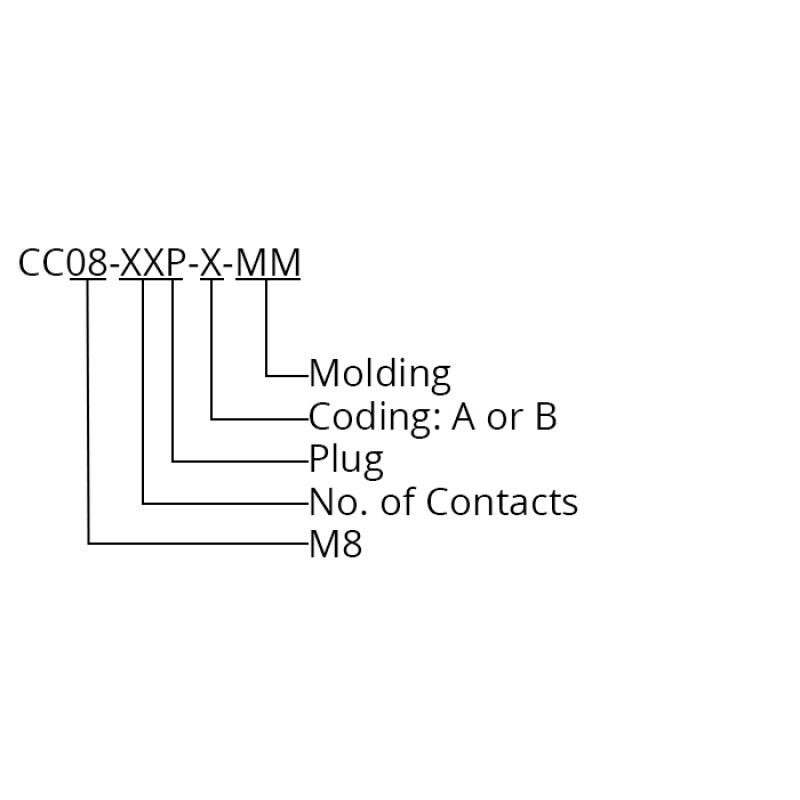

Product Code: CC08-XXP-X-MM

The CC08-XXP-X-MM is an M8 plug which is designed specifically for over-moulded cables. The circular connector is available in A and B coding, with a 2 to 8 way pin assignment option and features solder buckets to the rear. The connector can be mounted to wires without over-moulding but is also available as a ready made cable assembly under part number SCM08-XXPXS-XXXX for a straight cable style or SCM08-XXPXR-XXXX as a right-angle mounted cable, to your required length.

Features

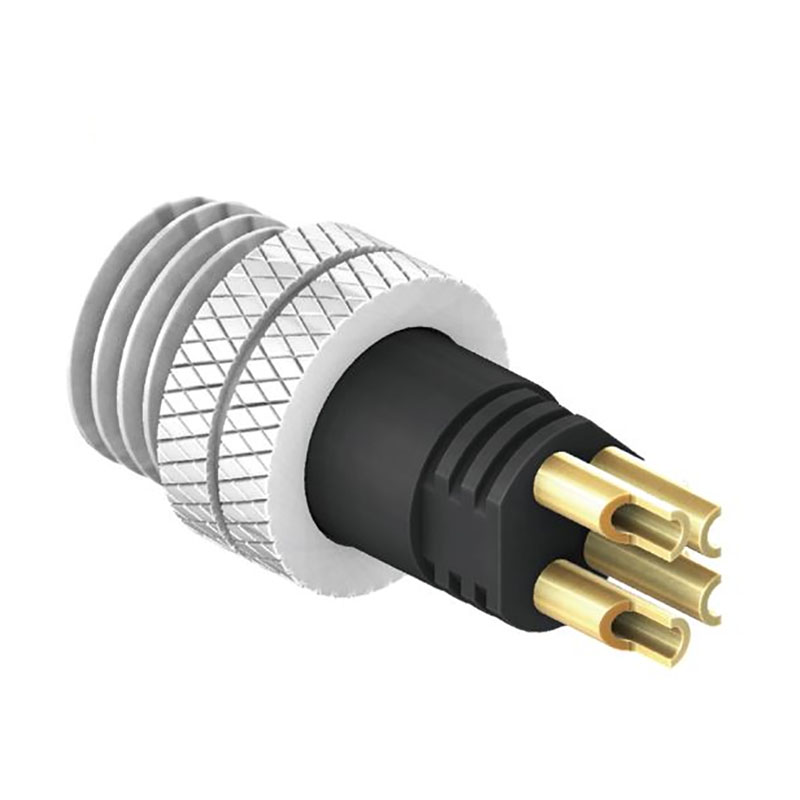

  • Solder buckets for cable mounting
  • Available in A and B coding
  • 2 to 8 Pins

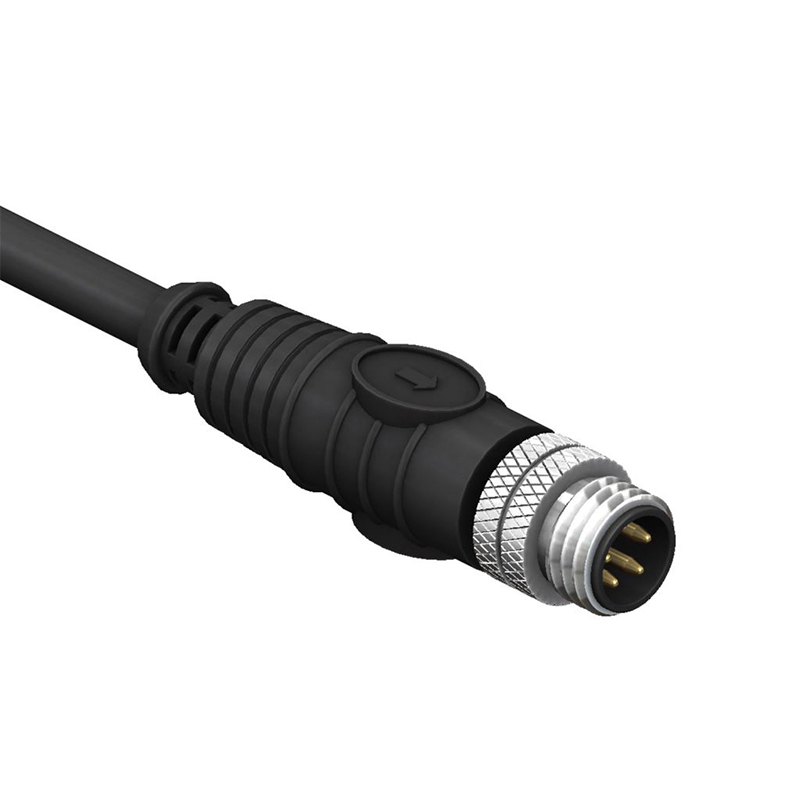

  • Available as a ready-made or bespoke cable assembly
Withstanding Voltage 500V AC/Minute (2 to 5 Pins), 250V AC/Minute (6 to 8 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Current Rating 3A AC/DC (2 to 5 Pins), 1A AC/DC (6 to 8 Pins)
Voltage Rating 60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Connector Body Brass Nickel Plated
Nut Brass Nickel Plated
Operating Temperature -40 to 85oC
Mounting Type Cable
Shielded  No

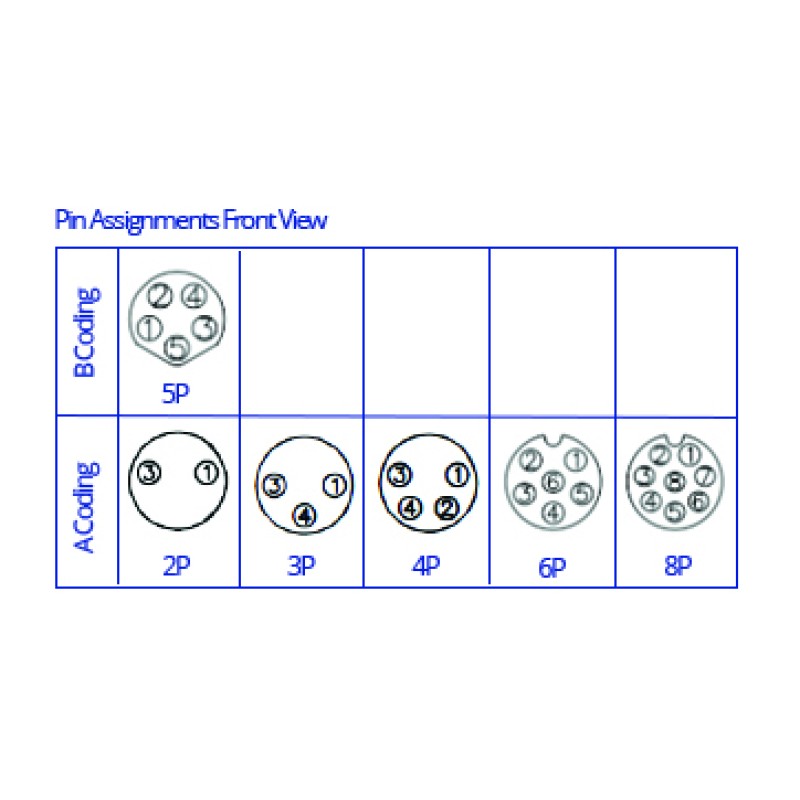

Coding A, B
Contact 2, 3, 4, 5, 6, 8
