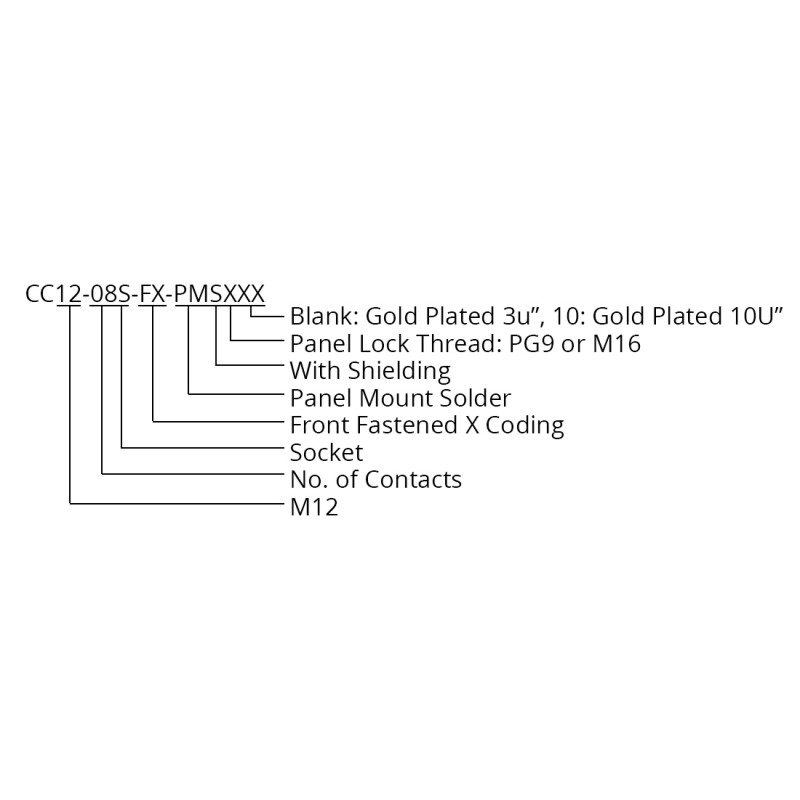

Product Code: CC12-08S-FX-PMSX

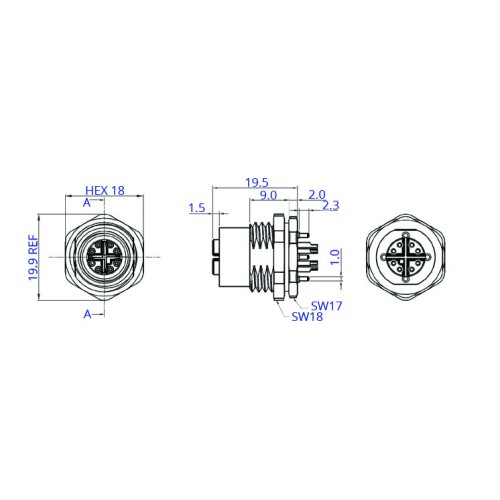

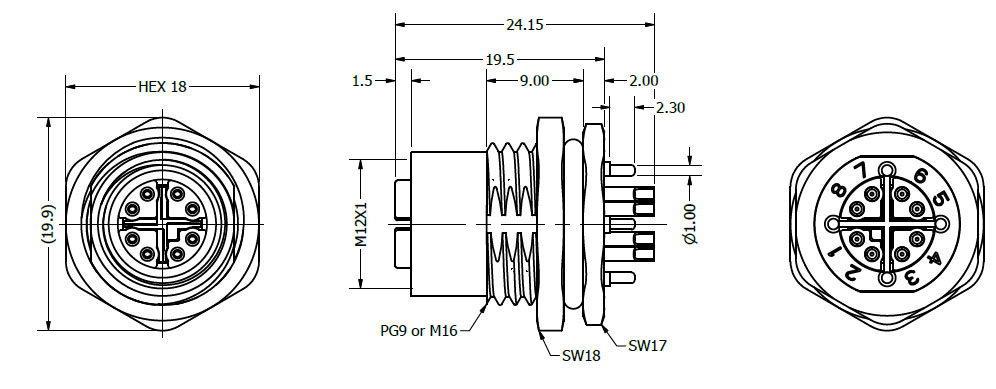

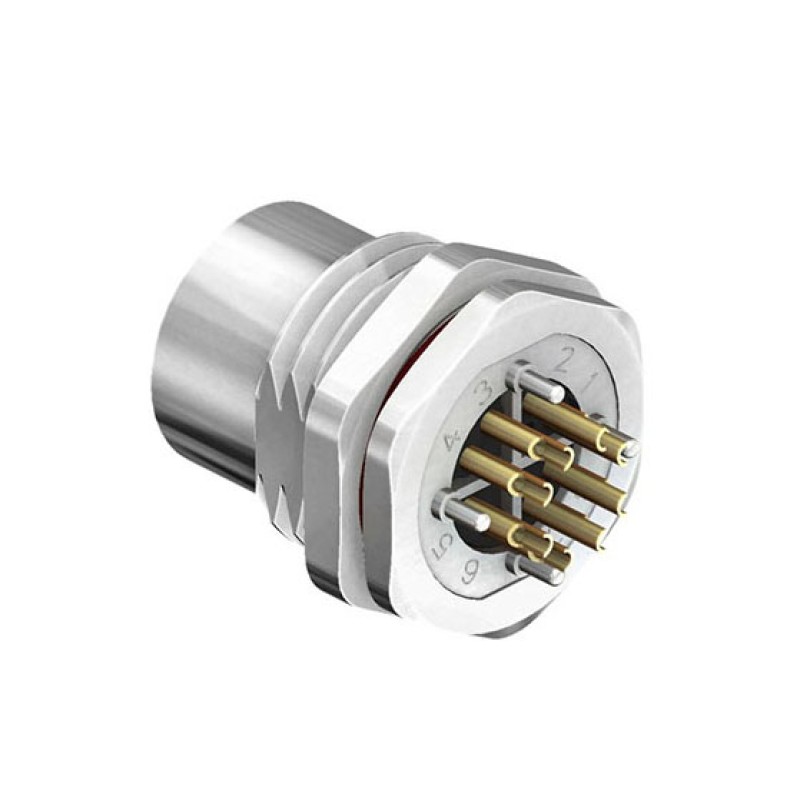

The CC12-08S-FX-PMSX is an M12 circular socket connector which is available with 8 pins in an X coding. The connector has a shielding pin and features solder buckets to the rear for cable mounting. The connector is available as a stand alone unit or as part of a standard ready made cable assembly as part number SCA12-08SFXX-XXXX or a bespoke cable assembly with other terminations completing the other end. The connector has the IP67 waterproof rating.

Features

  • Cable Mounted
  • Available in X coding
  • Shielding Pin
  • 8 Pins
  • Offering speeds up to 10Gbps
Withstanding Voltage 500V AC/Minute
Contact Resistance ≤15mΩ
Insulation Resistance ≥100MΩ
Current Rating 0.5A
Voltage Rating 30V AC, 60V DC
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Connector Body Zinc Alloy Nickel Plated
Seal Silicone
Nut P9 or M16 Brass Nickel Plated
Shielded Zinc Alloy Nickel Plated
Waterproof Rating IP67
Operating Temperature -25 to 85oC
Mounting Type Cable
Coding X
Contact 8
Shielded Yes
