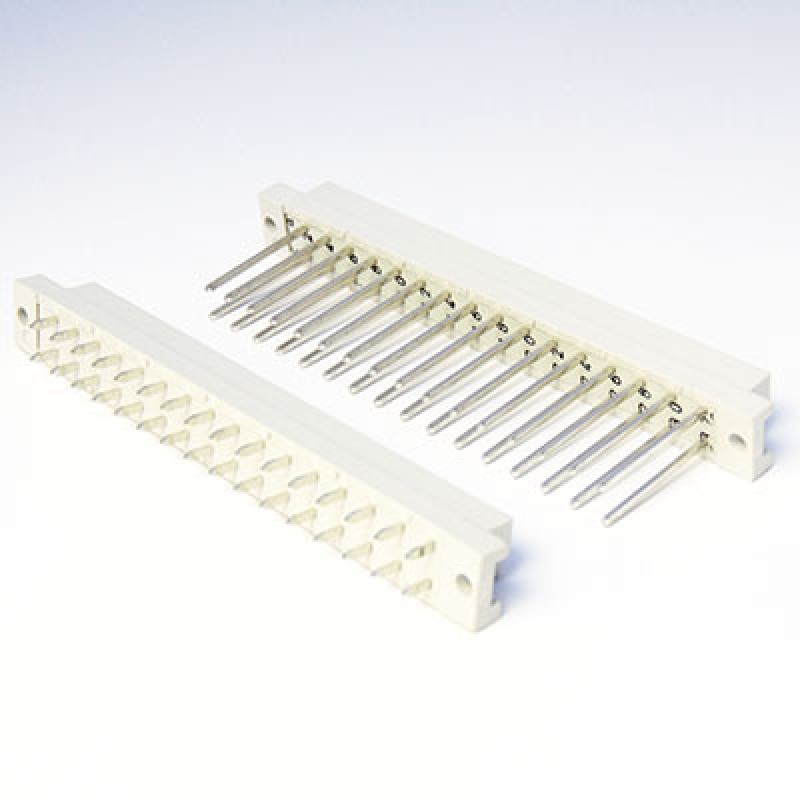

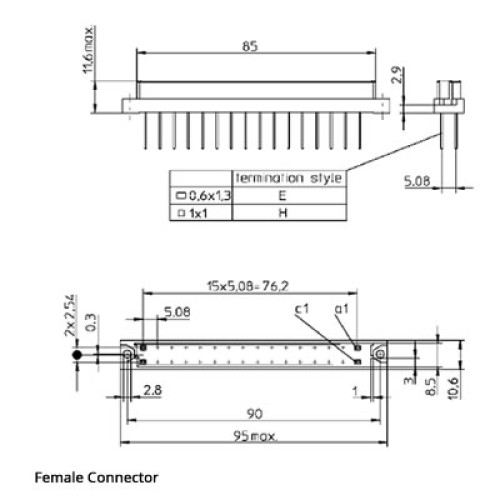

The DIN 41612 D type body offers a choice of five contact arrangements over 2 rows. It has an overall width of 94mm. It is available in both male and female connection types.

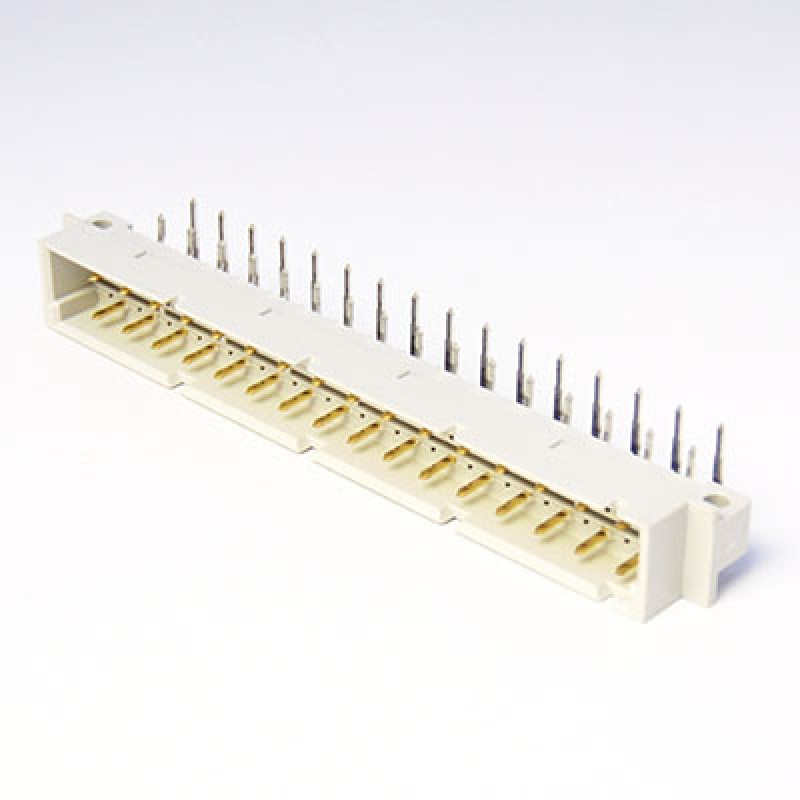

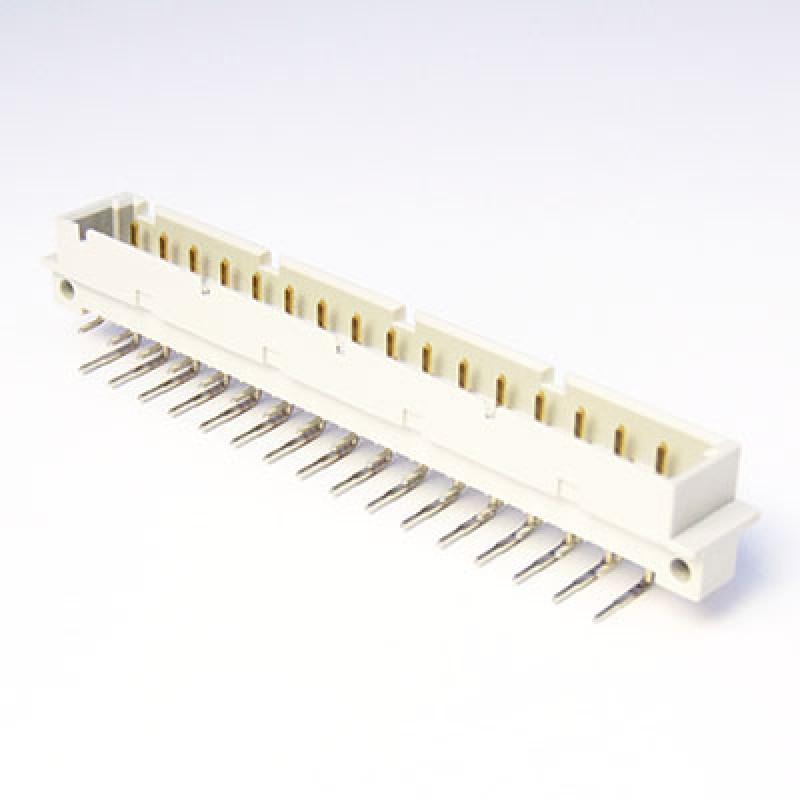

This is a PCB mounted connector and is available in a right angle mounted version for boards up to 1.6mm thick; a straight solder tail for boards up to 2.4mm thick and a wire wrap tail.

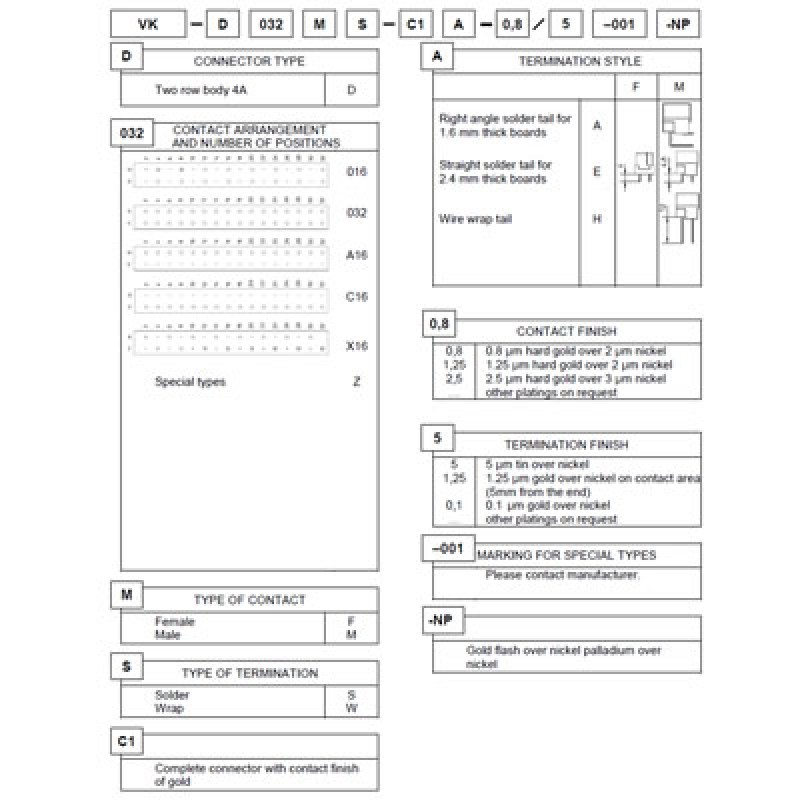

Each DIN 41612 connector is offered with a number of different contact and termination finishes.
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥10 6 MΩ |
| Connector Type | Male / Female |
| Current Rating | 5.5A at 20°C 4A at 80°C 2.5A at 100°C |
| Proof Voltage | Contact / Contact 1000Vrms Contact / Test Panel 1550Vrms |
| Connector Body | Glass Fibre Filled Polyester |
| Male Contact | Copper Alloy |
| Female Contactl | Phosphor Bronze |
| Contact Plating | Ni / Au Ni / PdNi / Au |
| Temperature Range | -55 to +125°C |
| Flammability | UL 94 V-O |
| Insertion Force | 32 pole ≤30N |
| Retention Force | ≥0.15N / Contact Pair |
