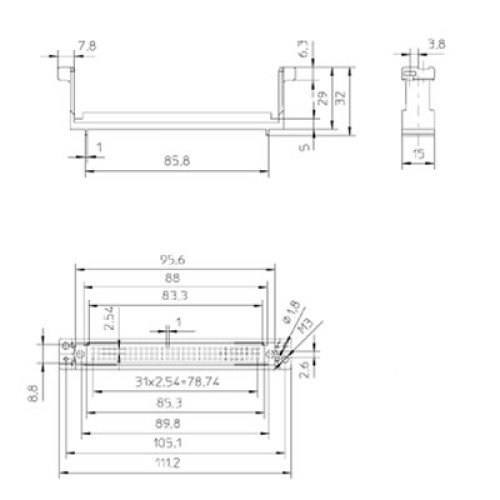

Guide Frame for Cable Housing

C Body DIN 41612

The DIN 41612 C type body offers an array of contact arrangements over 3 rows. The standard C body has an overall size of 95mm and can be in both male and female connection types.

This is a PCB mounted connector and is offered with right angle and straight solder tails for 1.6mm PCB thicknesses .For PCB boards of 2.4mm thick or if press-in termination is required for 1.5 to 4.0mm depth, then a longer straight solder tail specification is available. Wire wrap tail and hand solder eyelets are also available.

Each DIN 41612 connector is offered with a number of different contact and termination finishes.

R Body DIN 41612

The DIN 41612 R type body offers a choice of nine contact arrangements over 3 rows. It has an overall width of 90mm and is only available in a reversed male connector.

This is a PCB mounted connector and is available in a right angle mounted version for boards up to 1.6mm thick;. Two straight solder tail options for boards up to 1.6mm or 2.4mm in thickness, with the 2.4mm thickness also being suitable for press-fit between 1.5mm and 4.0mm in thickness. Three lengths of wire wrap tail style are also available.

Each DIN 41612 connector is offered with a number of different contact and termination finishes.

D Body DIN 41612

The DIN 41612 D type body offers a choice of five contact arrangements over 2 rows. It has an overall width of 94mm. It is available in both male and female connection types.

This is a PCB mounted connector and is available in a right angle mounted version for boards up to 1.6mm thick; a straight solder tail for boards up to 2.4mm thick and a wire wrap tail.

Each DIN 41612 connector is offered with a number of different contact and termination finishes.
