Housing for C and R Body Styles

Product Code: PCHI

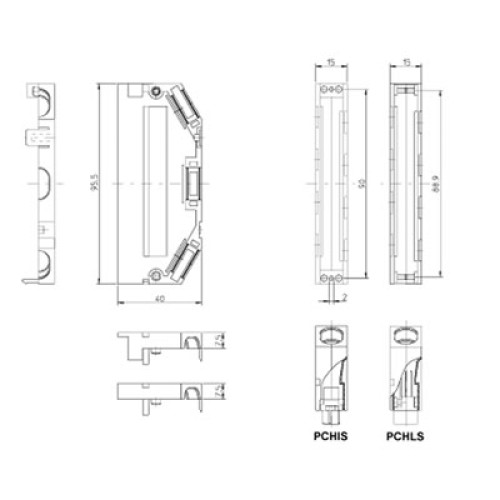

The PCHI is a polycarbonate housing for C and R body style DIN 41612 connectors.

It is available in 4 different specifications to suit your application:

PCHI – Housing for C-female IDC, solder and wire wrap types and R-male;
PCHL – Housing for C-male and R-female;
PCHLS – Whole set consisting of two pieces of PCHL and the required screws and cable tie;



Body Finish Polycarbonate
Flammability UL 94 V-O

Related Products

C Body DIN 41612

The DIN 41612 C type body offers an array of contact arrangements over 3 rows. The standard C body has an overall size of 95mm and can be in both male and female connection types.

This is a PCB mounted connector and is offered with right angle and straight solder tails for 1.6mm PCB thicknesses .For PCB boards of 2.4mm thick or if press-in termination is required for 1.5 to 4.0mm depth, then a  longer straight solder tail specification is available. Wire wrap tail and hand solder eyelets are also available.

Each DIN 41612 connector is offered with a number of different contact and termination finishes.







View product
R Body DIN 41612

The DIN 41612 R type body offers a choice of nine contact arrangements over 3 rows. It has an overall width of 90mm and is only available in a reversed male connector.

This is a PCB mounted connector and is available in a right angle mounted version for boards up to 1.6mm thick;. Two straight solder tail options for boards up to 1.6mm or 2.4mm in thickness, with the 2.4mm thickness also being suitable for press-fit between 1.5mm and 4.0mm in thickness. Three lengths of wire wrap tail style are also available.

Each DIN 41612 connector is offered with a number of different contact and termination finishes.









View product
