The 31T-0029-18 is a straight DIN 41612, high power cable socket, which is suitable for current rating of 40A.
The DIN 41612 M type body offers a choice of twelve contact arrangements over 3 rows, mixed with between 2 and 8 power contacts. It has an overall width of 95mm and is available in both male and female connection types.

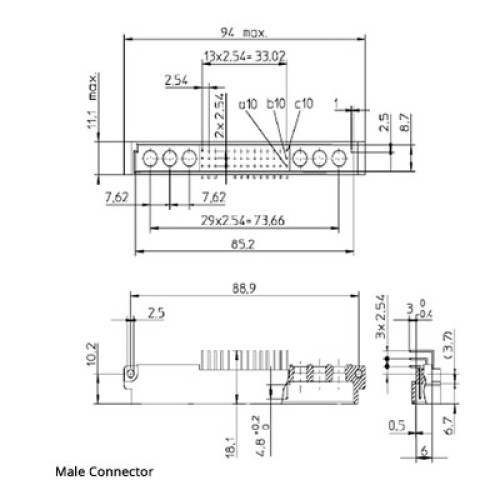

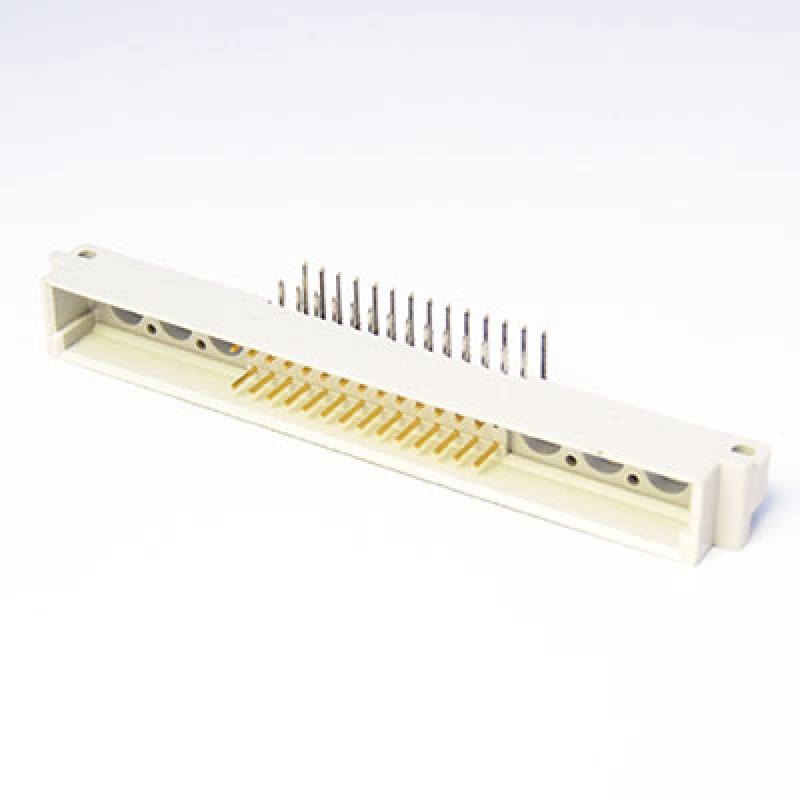

This is a PCB mounted connector and is available in a right angle mounted version for boards up to 1.6mm thick;. Two straight solder tail options for boards up to 1.6mm or 2.4mm in thickness, with the flexibility to use press in style with the 2.4mm connectors for 1.5 to 4.0mm thick boards. There are also three lengths of wire wrap tail.

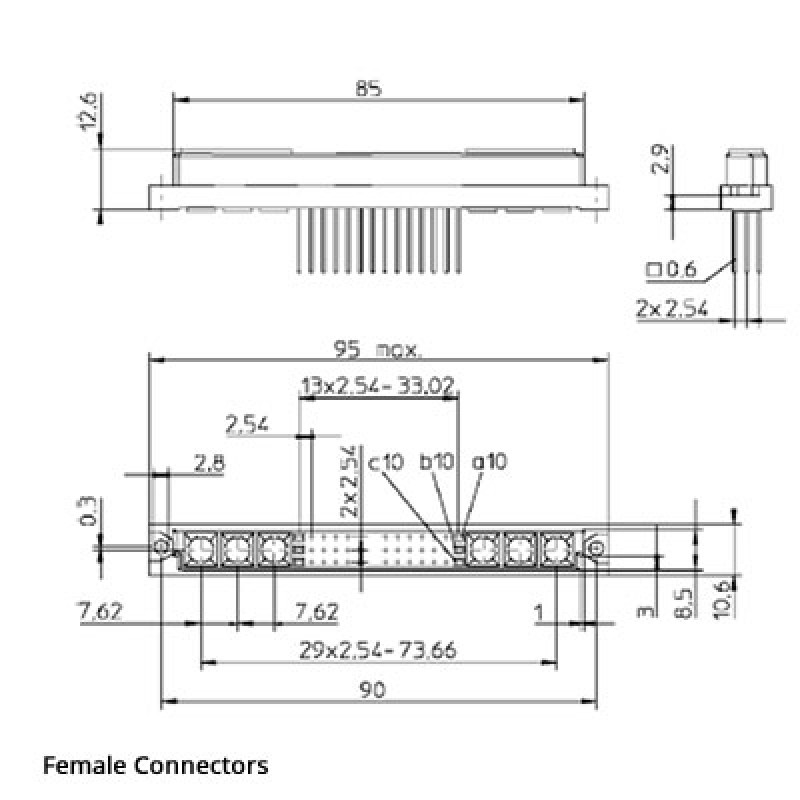

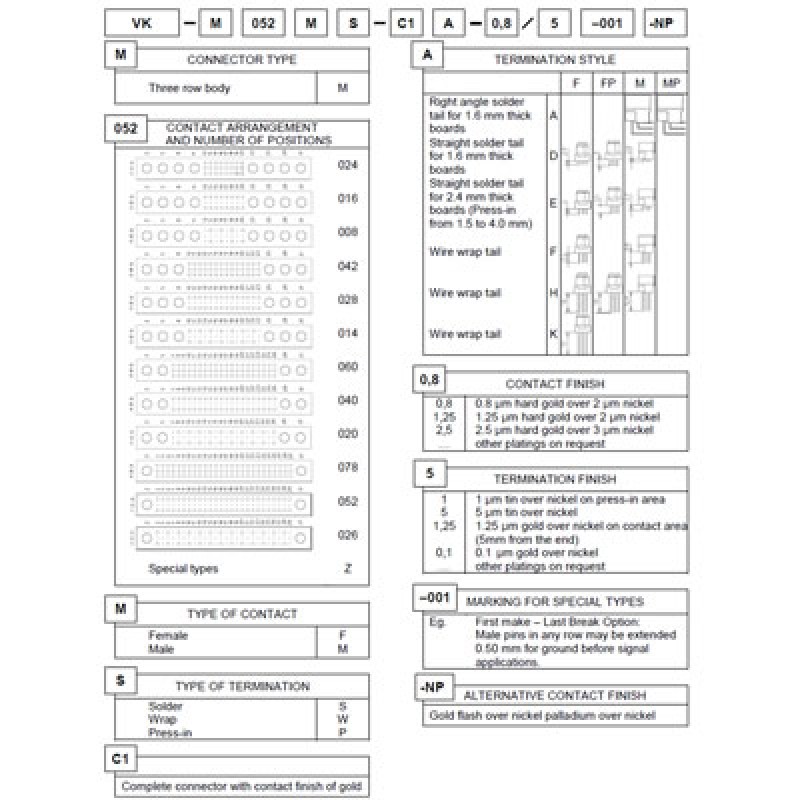

Each DIN 41612 connector is offered with a number of different contact and termination finishes. Power contacts sold separately.
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥10 6 MΩ |
| Connector Type | Male / Female |
| Current Rating | 1.5A at 20°C 1A at 80°C 0.75A at 100°C |
| Proof Voltage | Contact / Contact 1000Vrms Contact / Test Panel 1550Vrms |
| Connector Body | Glass Fibre Filled Polyester |
| Male Contact | Copper Alloy |
| Female Contactl | Phosphor Bronze |
| Contact Plating | Ni / Au Ni / PdNi / Au |
| Temperature Range | -55 to +125°C |
| Flammability | UL 94 V-O |
| Insertion Force | without coaxial contacts 42 pole ≤40N 60 pole ≤57N 78 pole ≤74N |
| Retention Force | ≥0.15N / Contact Pair |
The 31T-0029-18 is a straight DIN 41612, high power cable socket, which is suitable for current rating of 40A.
