SCA16-XXPFAX-XXXX – M16 Front Fastening Plug Cable Assembly (A Code)

Product Code: SCA16-XXPFAX-XXXX

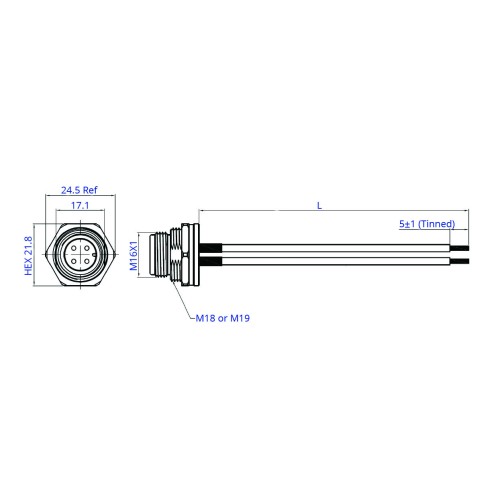

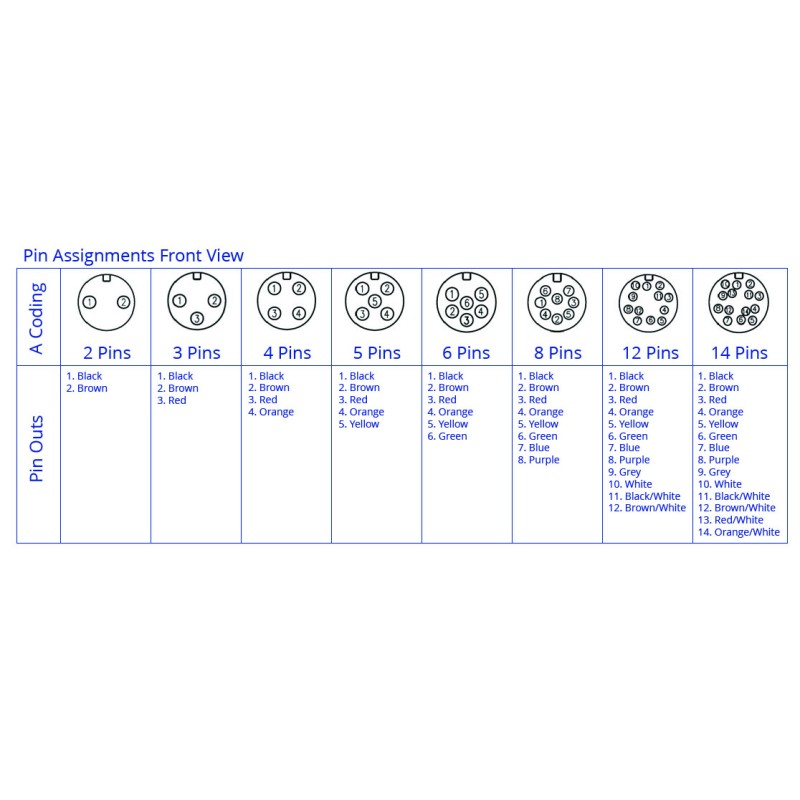

The SCA16-XXPFAX-XXXX is an M16 Plug cable assembly which comes with a stub end as standard. The front fastening connector is available in an A coding and with 2 to 14 pin options. The
connector is supplied with either an M18 or M19 nut. The assembly can be supplied to your required length or can be made into a bespoke assembly with terminations of your choice to the other end.

Features

Can be used for power or signal pins
IP67 Waterproof rating
Suitable for a wide range of applications
Available with a choice of nut size, M18 or M19
Can be supplied as a bespoke cable assembly with or without terminations to the other end.

Electrical

Contact Resistance	≤5mΩ
Insulation Resistance	Cable ≥10MΩ, Connector ≥100MΩ
Connector Type	Male
Current Rating	10A AC/DC (2 to 5 Pins), 5A AC/DC (6 and 8 Pins), 3A AC/DC (12 and 14 Pins)
Voltage Rating	60V AC/DC
