SCA20-XXPRA-XXXX – M20 Rear Fastening Plug Cable Assembly (A Code)

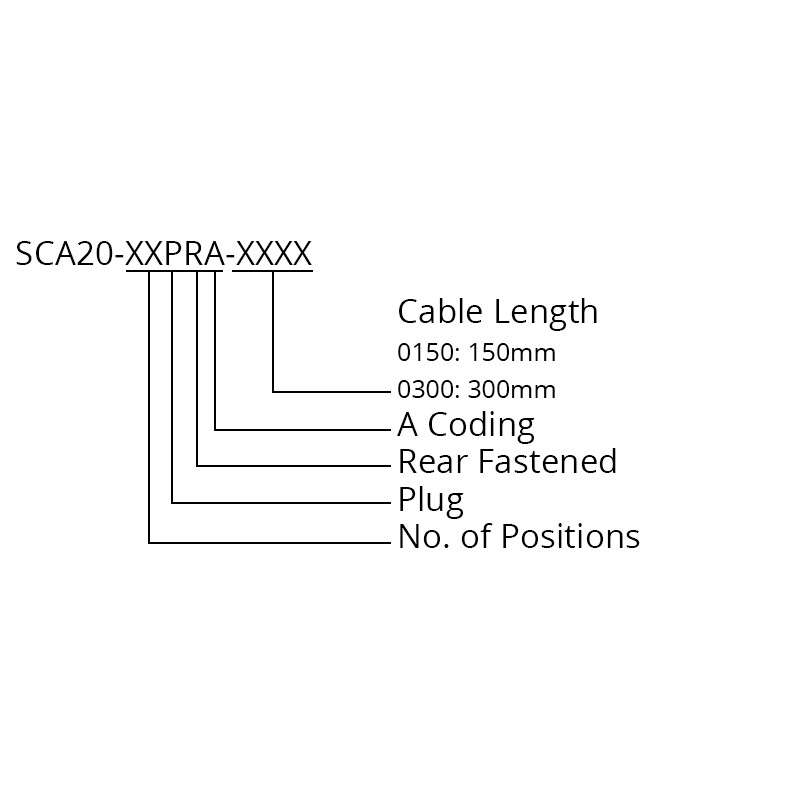

Product Code: SCA20-XXPRA-XXXX

The SCA20-XXPRA-XXXX is an M20 plug cable assembly which comes as standard with a stub end. The connector is available in an A coding and with 5 or 8 pin options with a rear panel fastening. Standard lengths are 150 and 300mm, but the assembly can be supplied to your required length or can be made into a bespoke assembly with terminations of your choice to the other end.

Features

  • Can be used for power or signal pins
  • IP67 Waterproof rating
  • Suitable for a wide range of applications
  • Available in standard lengths of 150 or 300mm.
  • Can be supplied as a bespoke cable assembly with or without terminations to the other end.
Contact Resistance ≤5mΩ
Insulation Resistance Cable ≥10MΩ, Connector ≥100MΩ
Connector Type Male
Current Rating 10A
Voltage Rating 250V AC/DC
Waterproof Rating IP67
Operating Temperature -40 to 105oC
Mounting Type Cable
Coding A

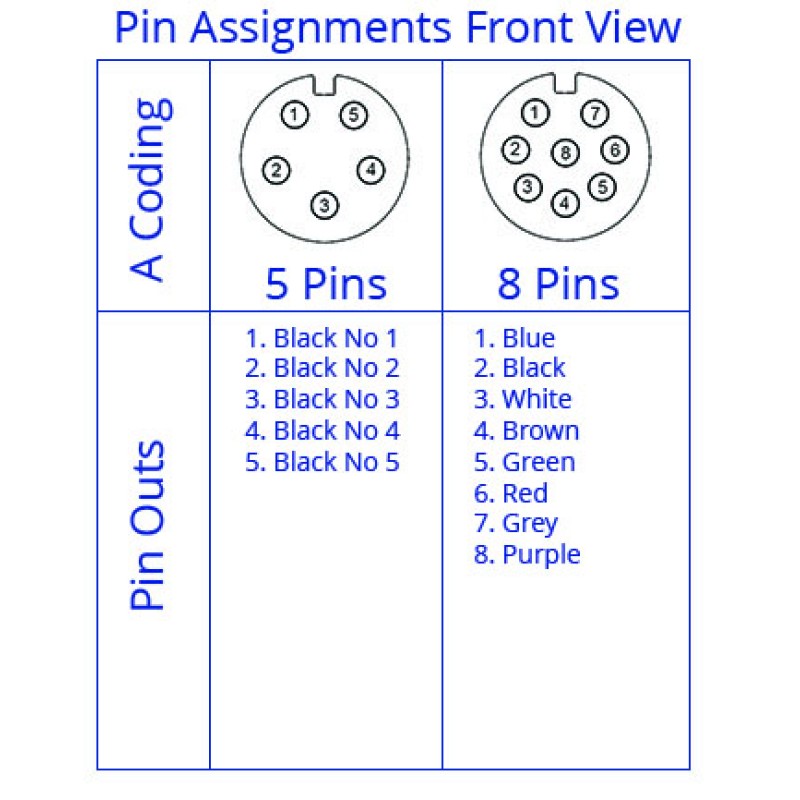

Contact 5, 8
Connector Part Number CC20-XXP-RA-PM
Fastening Rear Fastening
