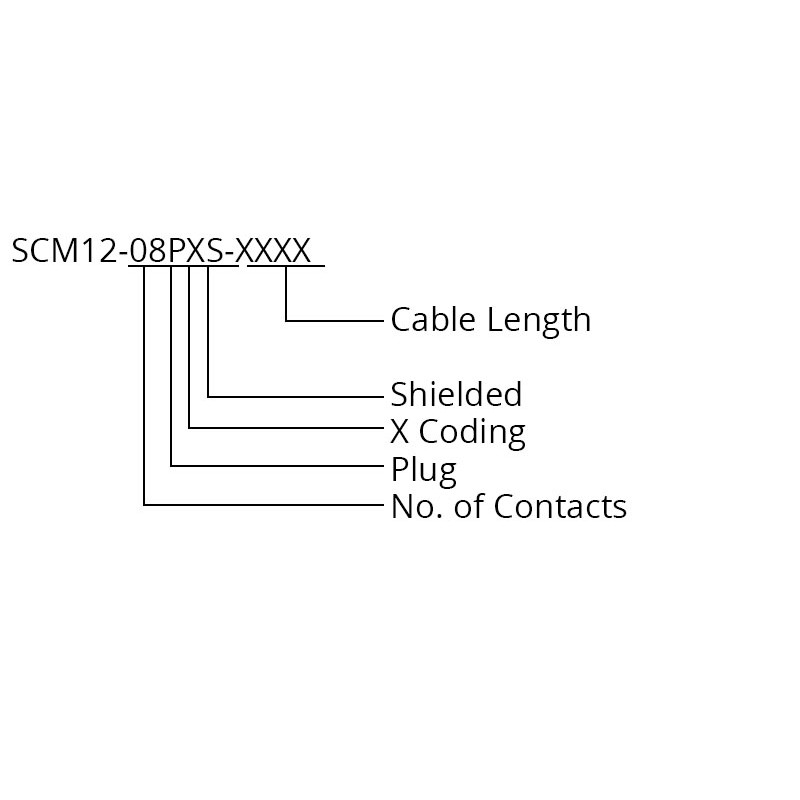

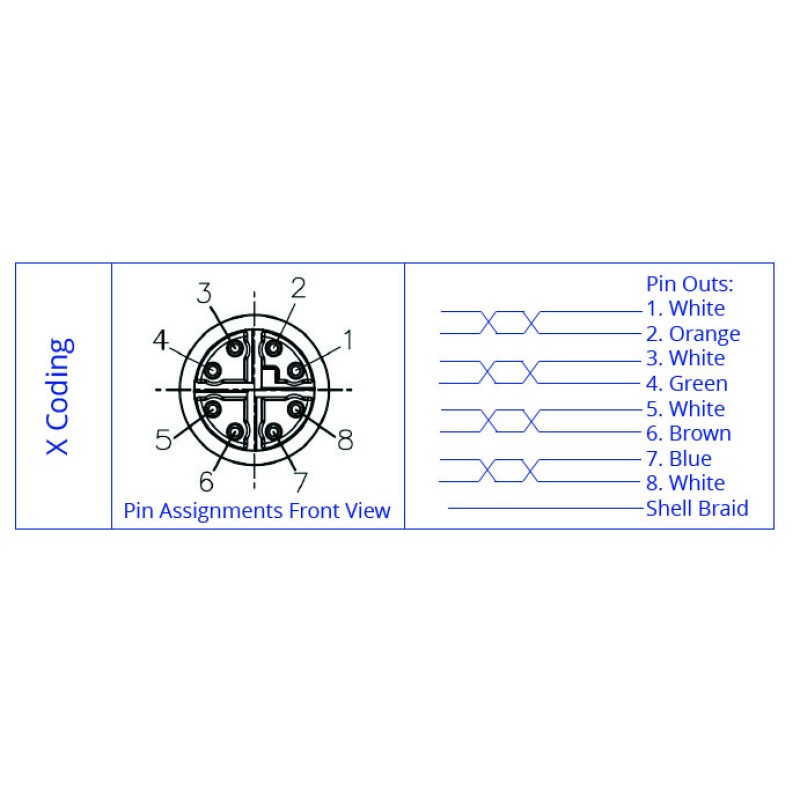

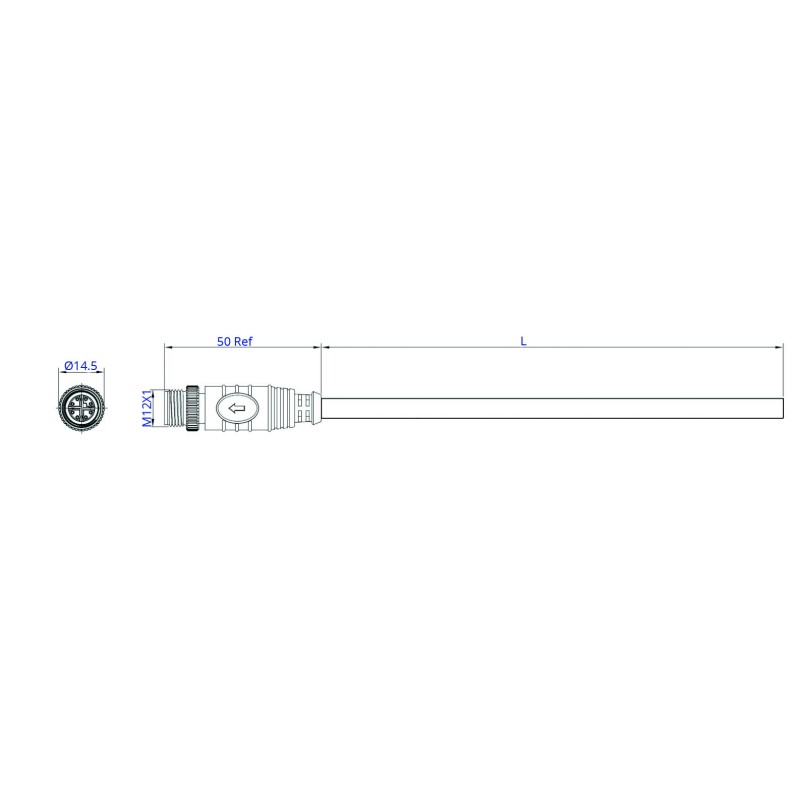

The SCM12-08PXS-XXXX is an M12 over-moulded plug cable assembly with a stub end for completion with a termination of your choice. This M12 plug is an 8 pin, X code connector with shielding. The assembly can be supplied to your required length or can be made into a bespoke assembly with terminations of your choice to the other end.
Features
| Current Rating | 0.5A |
| Voltage Rating | 60V DC, 30V AC |
| Contact Resistance | ≤5mΩ |
| Insulation Resistance | Cable ≥10MΩ, Connector ≥100MΩ |
| Connector Type | Male |
| Operating Temperature | -25 to 85oC |
| Waterproof Rating | IP67 |
| Coding | X |
| Contact | 8 |
| Connector Part Number | CC12-08P-X-MMS |
| Mounting Type | Cable |

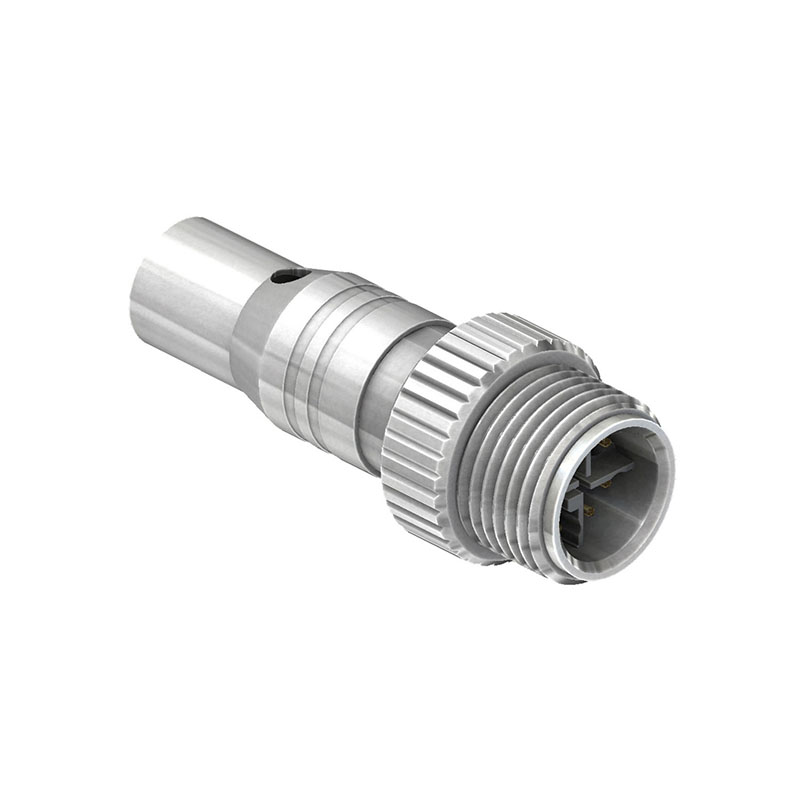

The CC12-08P-X-MMS is an M12 circular moulded plug connector which has 8 pins in an X coding. The connector has a shielding pin and features solder terminals to the rear for cable mounting. The connector can be sold as a stand alone connector or as part of a standard cable assembly with overmoulding (part number SCM12-08PXS-XXXXA) or a bespoke cable assembly with mixed termination styles to the other end.
Features
