The PCS range are shrouds for use with the C/1L and PC/1L locking frames for C body DIN 41612. The shroud is available in 2 sizes, PCS5.5 for pin lengths of 13mm and PCS12.5 for pin lengths of 20mm. Both are suitable for use with a 2.4mm PCB thickness.
| Body Finish | Glass fibre filled polyester |
| Flammability | UL 94 V-O |

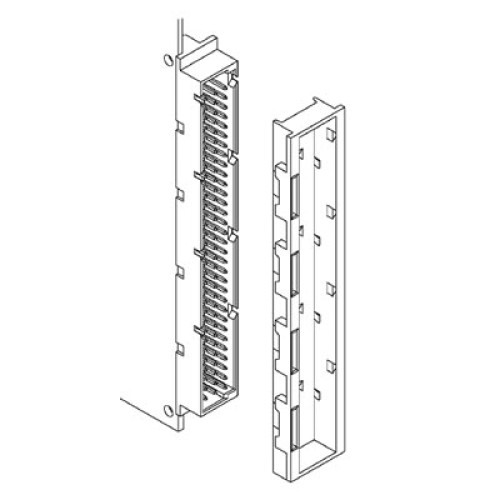

The C Body locking frame is designed as a back panel shroud for male connectors and create a secure lock with the hooded female cable mounted connector. It is available in two sizes, the standard size (C/1L and C/1LK, with coding) and the smaller profile surround (PC/1L-8608 or PC/1LK-8681 with coding).
