The TLG111 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1066-NGBA
XBT-1064-NGBA
XGT-8000-NGAS
Cambridge Connectors range of three part cable terminating connectors feature precision 75Ω BNC connectors, available in male and female connection types and for a wide range of cable styles., including Belden 1505A, 1694A, 1855A and RG179.
The XBT-1064-NGxx features a BNC bulkhead socket.
The following Crimp Tools are advised for this connector type:
XBT-1064-NGAS = TLG 110 and TLG 111
XBT-1064-NGBA = TLG 111
Cambridge Connectors range of three part cable terminating connectors feature precision 75Ω BNC connectors, available in male and female connection types and for a wide range of cable styles., including Belden 1505A, 1694A, 1855A and RG179.
The XBT-1066-NGxx features a BNC free cable socket.
The following tools are recommended for use with this connector:
XBT-1066-NGAS = TLG 110 and TLG 111
XBT-1066-NGBA = TLG 111
This range of BNC free cable plugs are designed for crimp termination to the cable. Available for 3 cable types:
AD Group Cables (RG174 or 316) offer a 50Ω Impedance with a 0 – 4GHx frequency range
AK Group Cables (RG213, 8A, 393 or URM67) offer a 50Ω Impedance with a 0 – 4GHx frequency range
AF Group Cables (RG179) offer a 75Ω Impedance with a 0 – 1GHx frequency range
The following tools are recommended for this connector:
XBD-1002-NGAD = TLG 111 and TLG 109
XBD-1002-NGAF = TLG 109

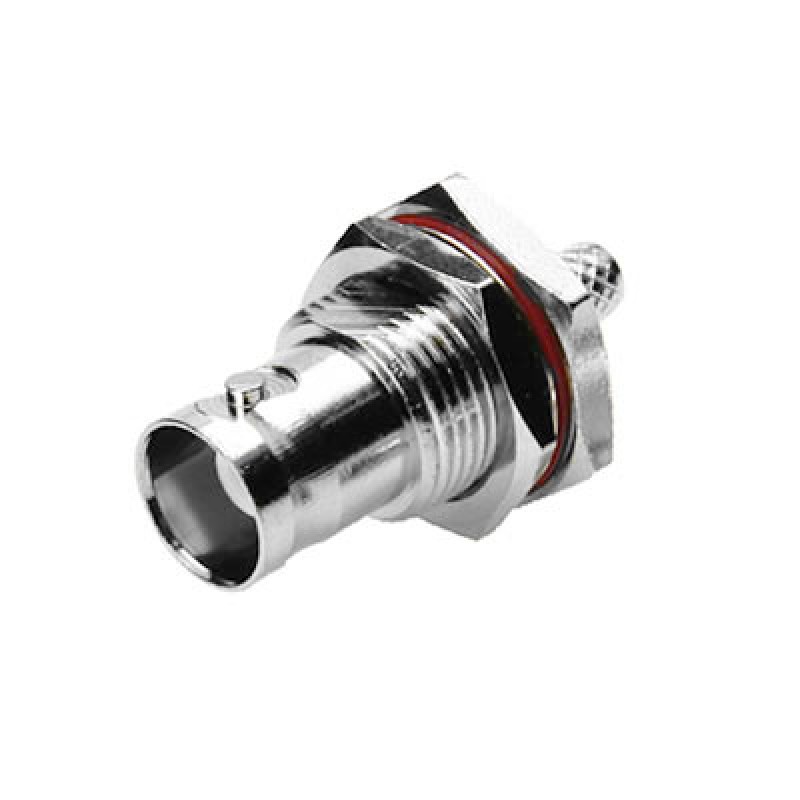

The XBD-1014-NGAF is a bulkhead mounting socket for cable group AF, which includes RG179 and is suitable for frequencies up to 1GHz and with an impedance of 75Ω. The connector is supplied with nut and washer.
The following tools are recommended for this connector:
XBD-1014-NGAF = TLG 111

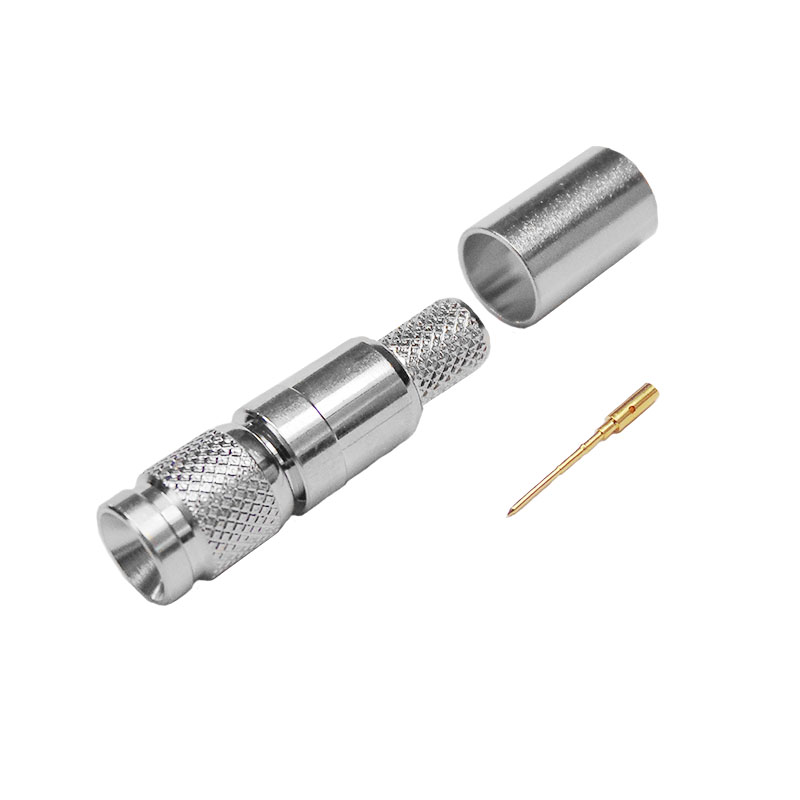

The C-SX-193 precision 75Ω DIN 1.0/2.3 Connector is a cable mounted non latching connector. The connector features the ability to uncouple with minimum force. The connector is suitable for cables in the BC group which includes Belden 1505F.
Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection.
The Micro BNC connectors are mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs.
The XPT-D005-NGBH connector is a cable mounted right angle Micro BNC plug, designed for use with cable (such as Belden 1694A 4694R, RG6).
The following tools are recommended for use with this connector:
XPT-D005-NGBH = TLG 111
Our range of 12GHz Precision BNC coaxial connectors conform to the SMPTE ST 2028-1 broadcast standard and are optimised for use in 6G SDI applications, whilst also meeting the JIIA CoaXPress specification. These high-performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 6GHz BNC plugs, designed for use with in the BA cable group such as Belden 1855A and 4855R.
The XBT-1072-NGBA connector is a right angle cable mounted BNC plug, which can be used with Belden cables for 6G applications.
The following tool is recommended for this connector:
XBT-1072-NGBA = TLG 111
