Crimp tool frame with die set to assemble XGT-8004-NGAF
The XBT-1062-NGXX is a precision 75Ω BNC plug. The connector is available for several cable types including Belden 1505A, 1694A, 1855A and RG179.
The following tools are recommended for this connector:
XBT-1062-NGAB = TLG 110
XBT-1062-NGAF = TLG 116 and TLG 110
XBT-1062-NGAS = TLG 110
XBT-1062-NGBA = TLG 110
The XGT-8004-NGAF is a right angle cable mounted plug, which is suitable for frequencies up to 6GHz and is designed for cables in the AF group which includes RG179B/U.
The following tools are recommended for use with this connector:
XGT-8004-NGAF = TLG 116
The XGT-8012-NGXX is a cable-mounted socket for frequencies up to 6GHz, depending on the cable type selected. Made for cable of 75Ω rating, the connector is suitable for cable groups AF (RG179B/U) and BA (1855A, 4855R and mini RG59) and BG (UHD 0.6/2.6 B1855A & B4855R & B1855ENH).
The following tools are recommended for use with this connector:
XGT-8012-NGAF = TLG 116
XGT-8012-NGBA = TLG 109 or TLG 110
XGT-8012-NGBG = TLG 116
The ZTS-04-CSB-NGAD is a cable mounted straight TNC socket. The connector is designed to fit RG174 cables and supports frequencies up to 4GHz. The connector features a bulkhead thread.
This connector used to previously be available as XTD-2010-NGAD.
The following tools are recommended for use with this connector:
ZTS-04-CSB-NGAD = TLG 116
The XDT-6304-GGAF is a right angle cable mounted SMB plug that supports frequencies up to 2GHz. The connector is suitable for cables in the AF cable group which includes RG179.
The following tools are recommended for use with the connector:
XDT-6304-GGAF = TLG 116

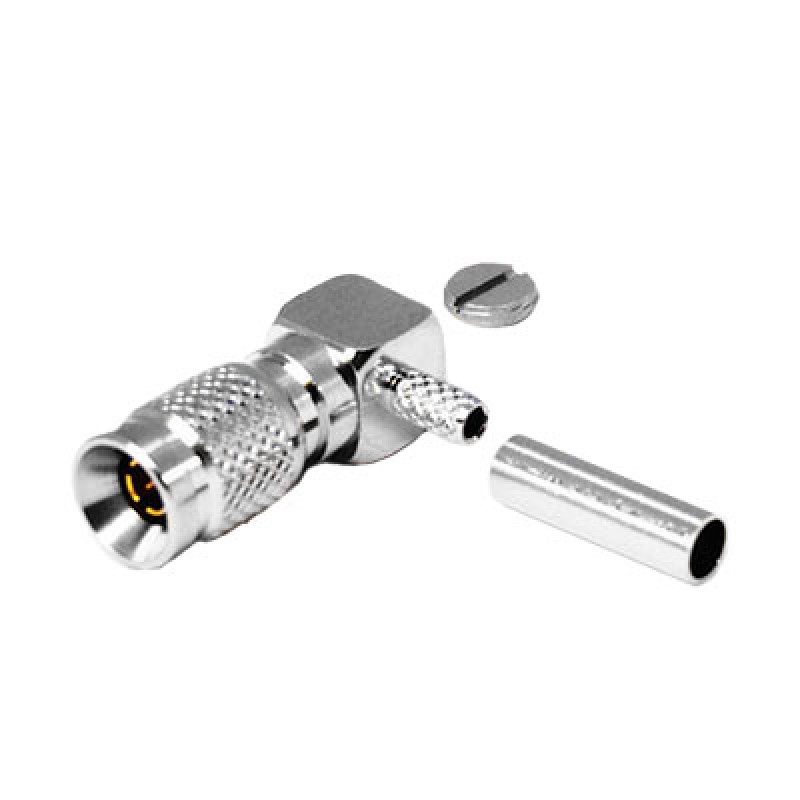

The XGT-8016-NGAF is a right-angled cable mounted DIN 1.0 / 2.3 which features a screw-on locking system. The connector is suitable for cables in the AF group of cables including RG179 and RG187 AU. This a precision 75Ω connector which meets the STMPE ST 2081 standard, which allows 6Gbits/s speed to be achieved over a single connection.
The following tool is recommended for use with this connector:
XGT-8016-NGAF = TLG 116
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and meeting the JIIA CoaXPress specification. These high
performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz BNC plugs, designed for use with in the AF cable group such as RG179R.
The XBT-1071-NGAF connector is a cable mounted BNC plug, which can be used with RG179 cable for 12G applications.
The following tool is recommended for this connector:
XBT-1071-NGAF = TLG 116
Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name while meeting the JIIA CoaXPress specification. These high-performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs.
The XPT-D005-NGAF connector is a cable mounted right angle Micro BNC plug, designed for use with 12GHz cable (such as RG179 and RG187).
The following tools are recommended for use with this connector:
XPT-D005-NGAF = TLG 116
