TLG123 - Hand Crimp Tool for Coaxial Connectors (Navy)

XGT-8013-NGXX – DIN 1.0 / 2.3 Free Cable Plug

The XGT-8013-NGXX range is a precision 75Ω cable mounted DIN 1.0 / 2.3 plug which is suitable for frequencies up to 6GHz. The connectors are part of the 6G-SDI CoaxVision™ range and are compatible with the SMPTE ST-2081. which allows 6Gbits/s over a single channel.

The range of 4 connectors support cable groups of AB (RG59B/U, 1505A), AS (RG6, 1694R, 4694R), AF (RG179) and BA (1855A, 4855R and mini RG59).

The following tools are recommended for use with this connector:
XGT-8013-NGAB = TLG 109
XGT-8013-NGAF = TLG 123
XGT-8013-NGBA = TLG 109
XGT-8013-NGBG = TLG 123

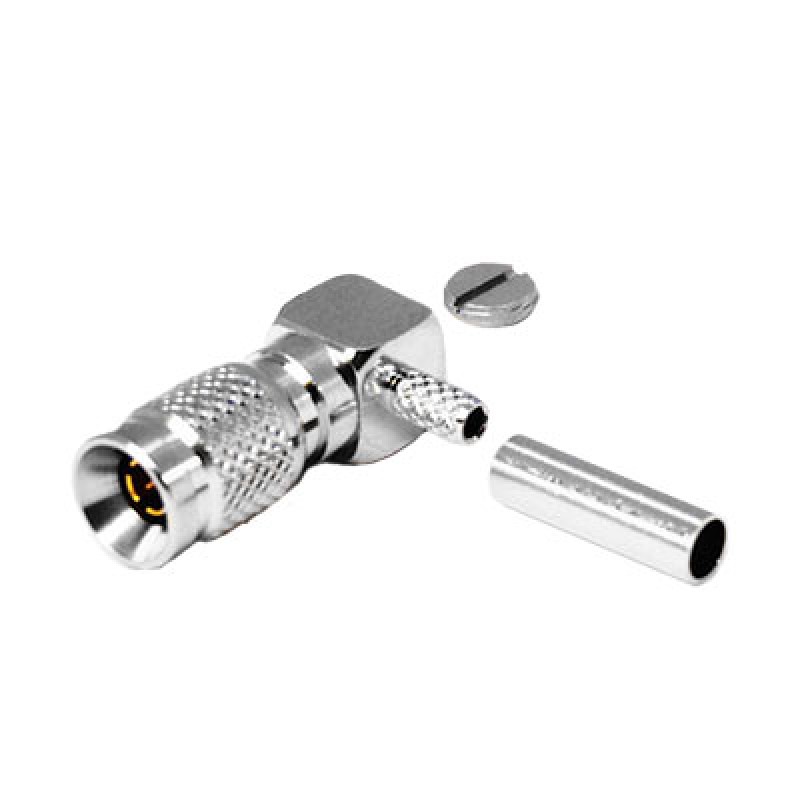

XGT-8004-NGBG – Right Angle Cable Mounted 1.0 / 2.3 Plug

The XGT-8004-NGBG is a right angle cable mounted plug, which is suitable for frequencies up to 6GHz and is designed for cables in the BG group which includes UHD 0.6/2.6 B1855A & B4855R & B1855ENH.

The following tools are recommended for use with this connector:
XGT-8004-NGBG = TLG 123

TLG 123 – Hand Crimp Tool for Coaxial Connectors (Navy)
