The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33

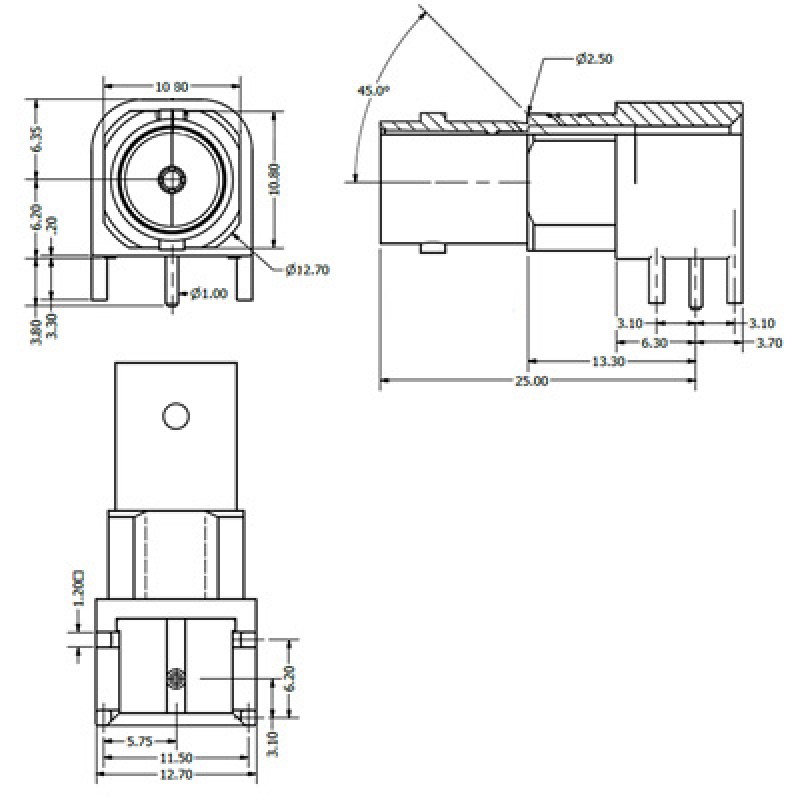

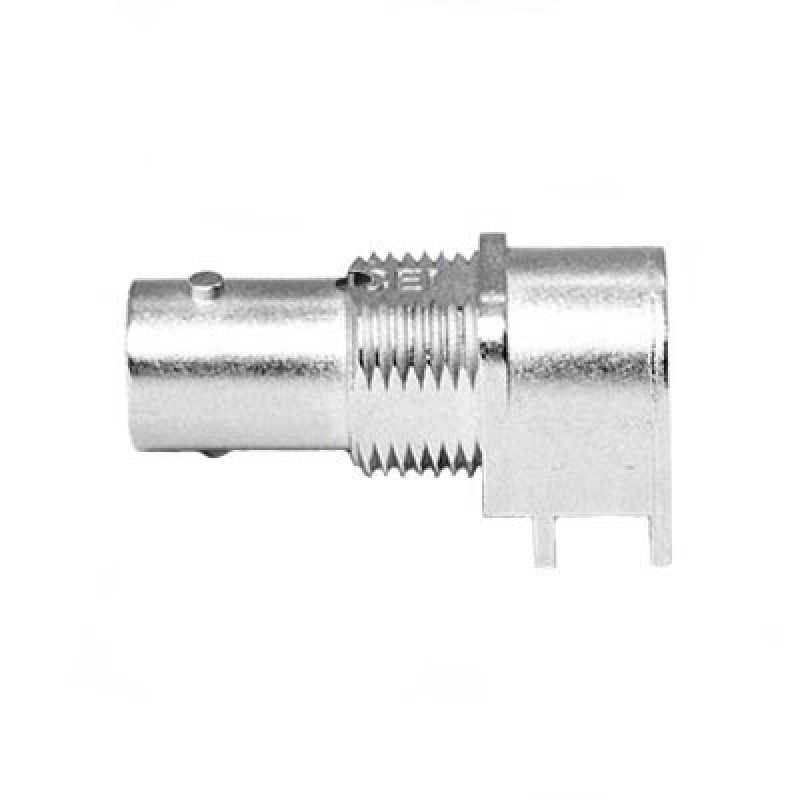

The XBS-03-RB33-NNT precision 75Ω BNC Connector is a right angle mounted PCB connector. It also features PathfinderTM light pipe technology with the viewport located in the top of the connector to allow for port identification even when the connector is mated.
| Impedance | 75Ω |
| Frequency Range | 0 – 3GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.10 (max) DC – 1.5GHz 1.20 (max) 1.5 – 3.0GHz |
| Contact Resistance | Centre contact ≤ 1.5mΩ
Outer contact ≤ 1.0mΩ |
| Insulation Resistance | ≥ 5000mΩ |
| Connector Type | Female |
| Metal Parts | Die Cast Zinc / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | UL94 HB TPX |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
This connector is available as:
XBS-03-RB33-NNT as the connector only part (formerly C-SX-110)
XBS-03-RB33-NNT-AA supplied with hex nut and crinkle washer (formerly C-SX-105)
| Processing | Maximum wave and hand soldering temperatures 265°C |
| Mounting Type | Right Angle |
| Leg Length | 3.3mm |
| Hardware | Available separately |
| Features | Pathfinder & Top Viewport, PCIe |
The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33
The ANB-C2-ABG-2.50 is a circular BNC nut which is 2.5mm thick and gold plated.
This nut was previously sold as 71X-0041-36
The ANB-C2-ANO-4.00 is a circular BNC nut which is 4.0mm thick and made from nylon. It is available in other colours.
This part was previously sold under part number 71X-0046-00
The ANB-C4-ASN-2.50 is a 4 slot circular BNC nut which is 2.5mm thick and made from mild steel with a nickel plating. The mild steel material makes this particularly useful with magnetic tools.
This nut was previously sold as part number 71X-0057-33
The ANB-C2-ABN-3.50 is a circular BNC nut which is 3.5mm thick and made from brass with a nickel plating.
This part was previously sold as 71X-0063-33.
The standard hex nut is made from brass with a nickel plating.
This Hex Nut was previously sold as part number 71X-0018-33.
The BNC crinkle washer is made from brass with a nickel plating.
The crinkle washer was formerly sold under part number 71X-0043-33.
