The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33

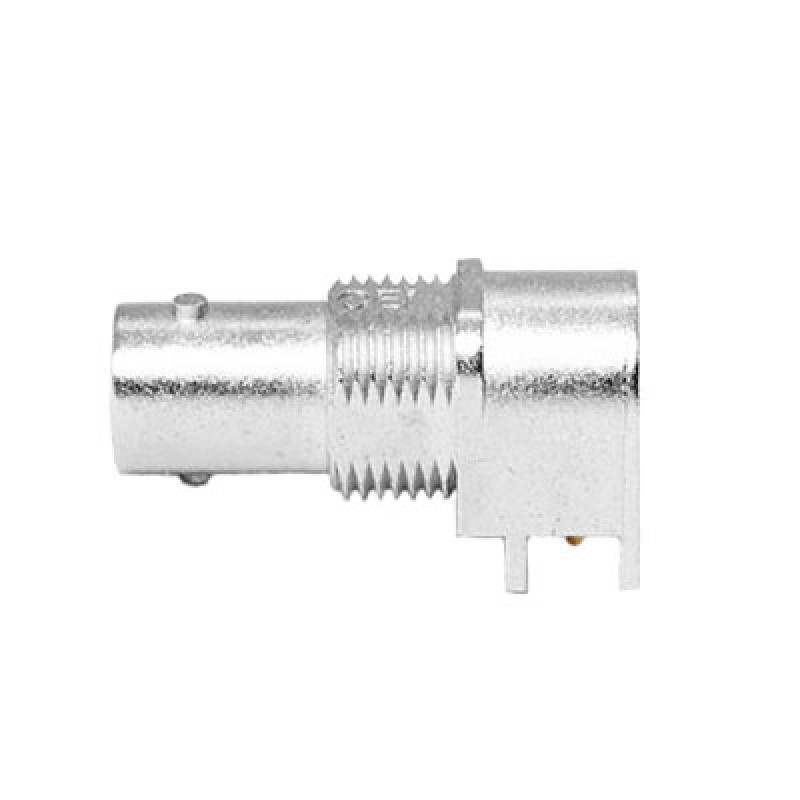

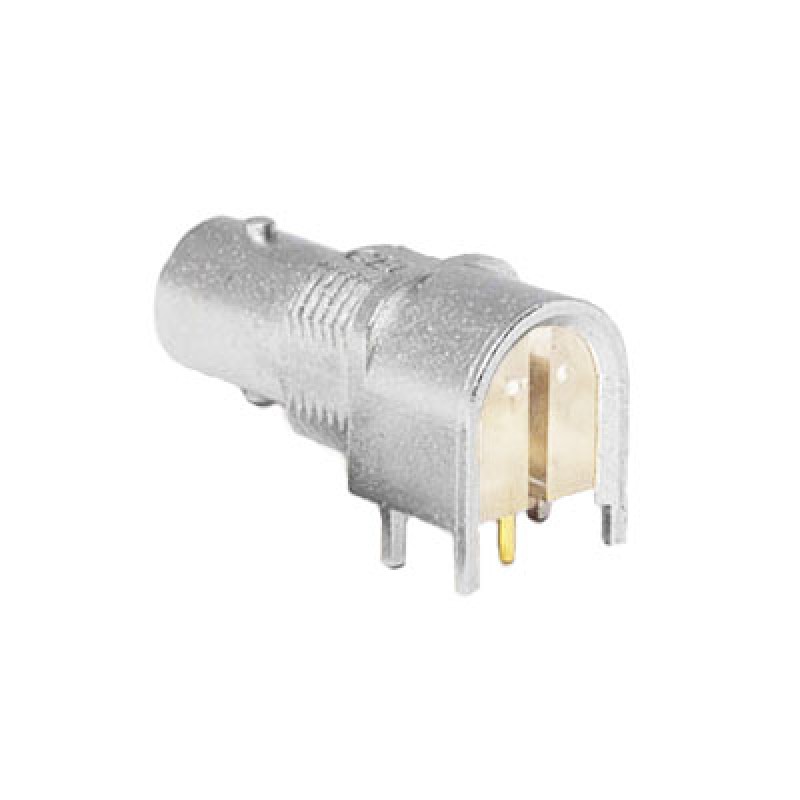

The XBS-06-RB25-NNCV is a bulkhead mounting BNC connector which can be used in PCI® Express applications. It features a PathfinderTM light pipe which aids port identification and status. The XBS-06-RB25-NNCV has a centre line of 7mm, which is taller than other connectors in this range. It also has a built in flange which provides additional EMI shielding and is optimised for 6G HD-SDI environments.
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Contact Resistance | Centre contact ≤ 1.5mΩ Outer contact ≤ 1.0mΩ |
| Insulation Resistance | ≥ 5000mΩ |
| Reflection Factor (VSWR) | 1.20 (max) DC – 3.0GHz 1.50 (max) 3.0 – 6.0GHz |
| Connector Type | Female |
| Metal Parts | Die Cast Zinc / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | UL94 HB TPX |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
XBS-06-RB25-NNCV is a connector only part (formerly C-SX-126).
| Mounting Type | Right Angle |
| Leg Length | 3.3mm |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperatures 265°C |
| Features | PathfinderTM, High Centreline, PCIe |
The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33
The ANB-C2-ABG-2.50 is a circular BNC nut which is 2.5mm thick and gold plated.
This nut was previously sold as 71X-0041-36
The ANB-C2-ANO-4.00 is a circular BNC nut which is 4.0mm thick and made from nylon. It is available in other colours.
This part was previously sold under part number 71X-0046-00
The ANB-C4-ASN-2.50 is a 4 slot circular BNC nut which is 2.5mm thick and made from mild steel with a nickel plating. The mild steel material makes this particularly useful with magnetic tools.
This nut was previously sold as part number 71X-0057-33
The ANB-C2-ABN-3.50 is a circular BNC nut which is 3.5mm thick and made from brass with a nickel plating.
This part was previously sold as 71X-0063-33.
The standard hex nut is made from brass with a nickel plating.
This Hex Nut was previously sold as part number 71X-0018-33.
The BNC crinkle washer is made from brass with a nickel plating.
The crinkle washer was formerly sold under part number 71X-0043-33.
