The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33

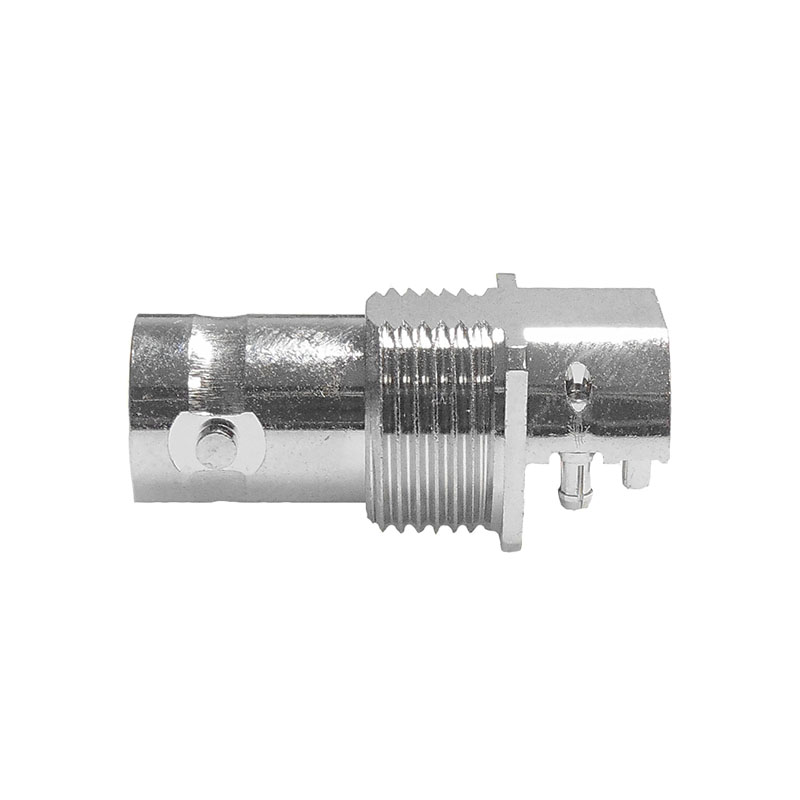

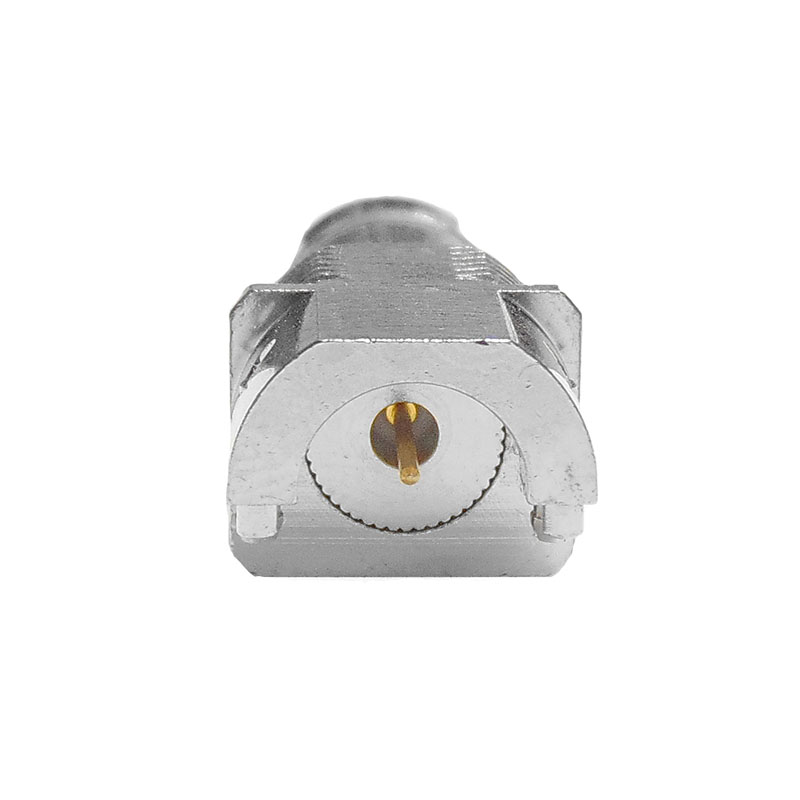

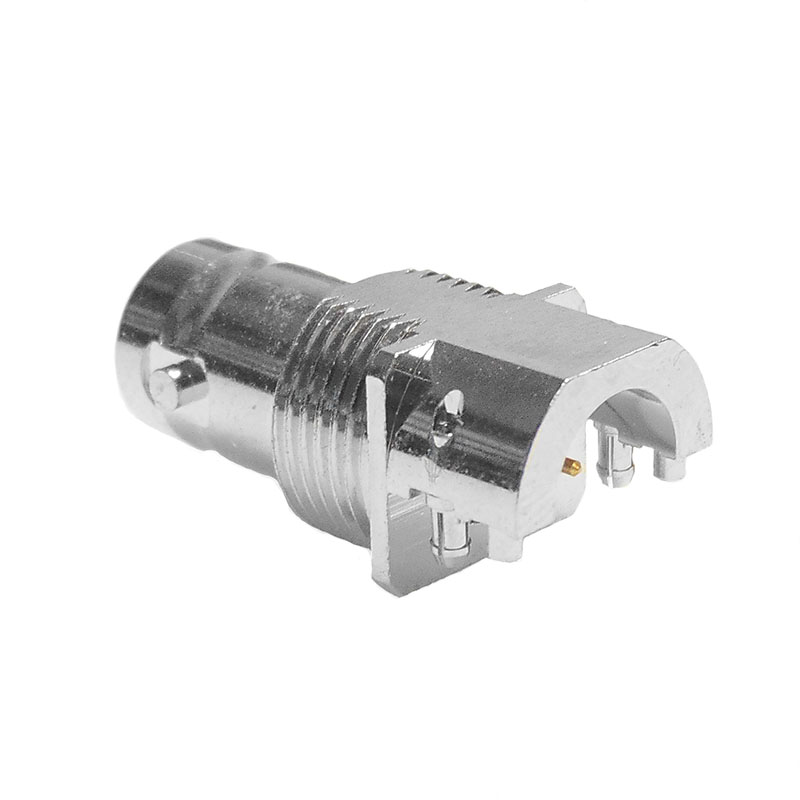

With a light weight construction and flat top surface this 12 GHz surface mount BNC Coaxial Connector is specifically designed to aid automated placement techniques universally adopted in volume production processes. This End Launch Surface Mounting BNC connector from Cambridge Electronic Industries facilitates transmission rates over a single channel of up to 12Gbits/s thus permitting significantly increased wiring densities.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 5000mΩ |
| Reflection Factor (VSWR) | 1.21 (max) DC – 6.0GHz 1.52 (max) 6.0 – 12.0GHz |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
This connector is available as:
XBS-12-EL16-NNHP as a connector only part
XBS-12-EL16-NNHP-AA when supplied with a hex nut and crinkle washer (formerly C-SX-202)

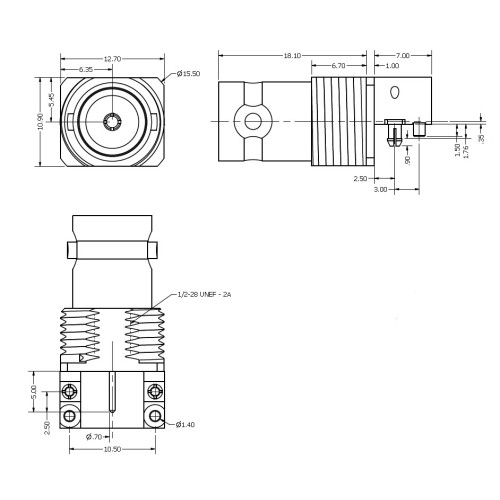

| Mounting Type | End Launch |
| Leg Length | 1.6mm |
| Board Thickness | 1.6mm |
| Hardware | Available separately |
| Processing | Maximum hand and reflow soldering temperature 260°C |
The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33
The ANB-C2-ABG-2.50 is a circular BNC nut which is 2.5mm thick and gold plated.
This nut was previously sold as 71X-0041-36
The ANB-C2-ANO-4.00 is a circular BNC nut which is 4.0mm thick and made from nylon. It is available in other colours.
This part was previously sold under part number 71X-0046-00
The ANB-C4-ASN-2.50 is a 4 slot circular BNC nut which is 2.5mm thick and made from mild steel with a nickel plating. The mild steel material makes this particularly useful with magnetic tools.
This nut was previously sold as part number 71X-0057-33
The ANB-C2-ABN-3.50 is a circular BNC nut which is 3.5mm thick and made from brass with a nickel plating.
This part was previously sold as 71X-0063-33.
The standard hex nut is made from brass with a nickel plating.
This Hex Nut was previously sold as part number 71X-0018-33.
The BNC crinkle washer is made from brass with a nickel plating.
The crinkle washer was formerly sold under part number 71X-0043-33.
