The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33

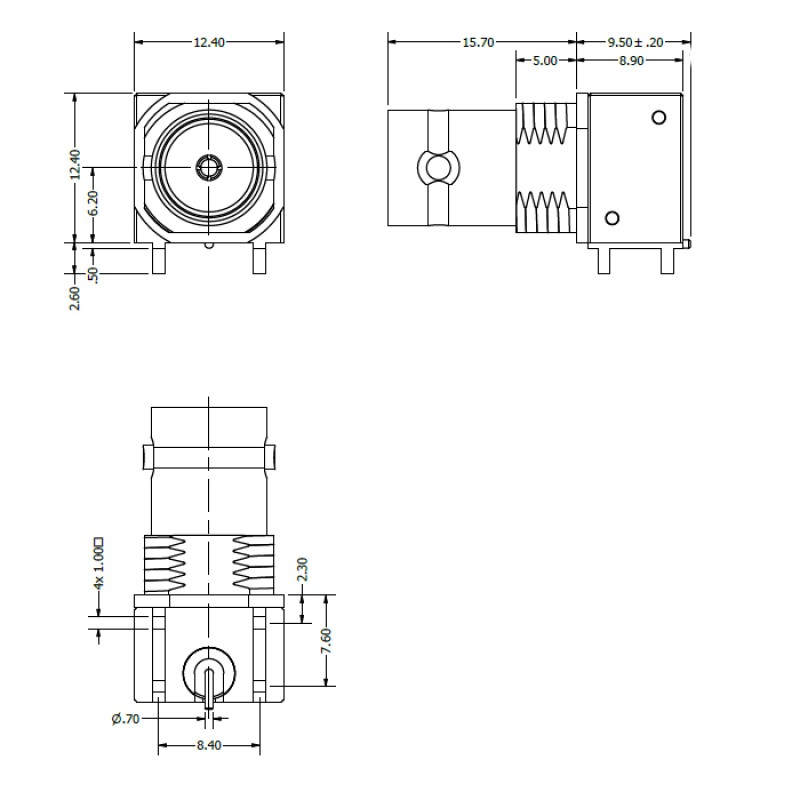

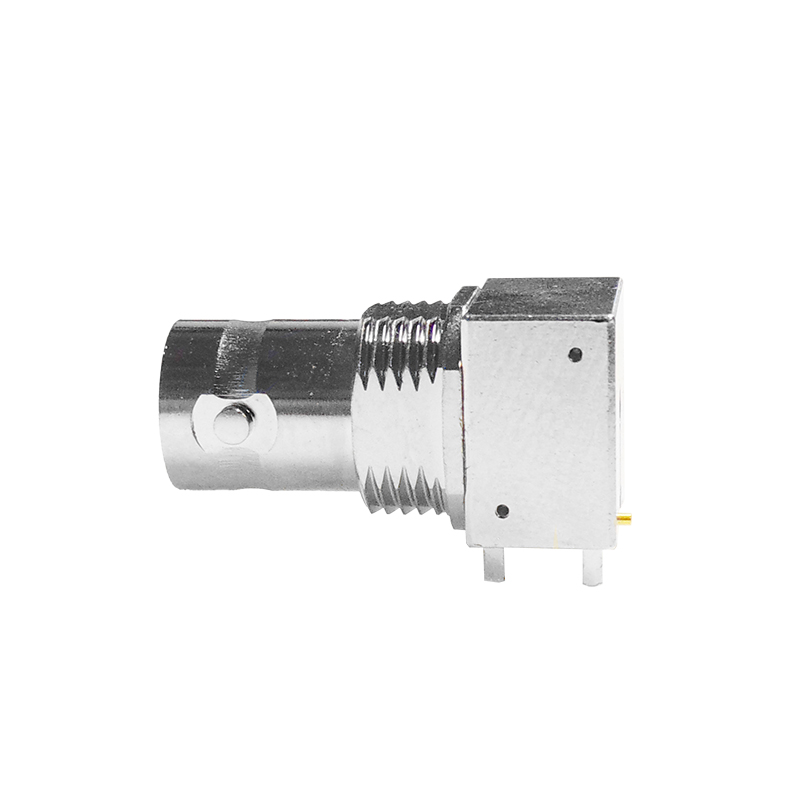

Our 12 GHz Precision BNC coaxial connectors are engineered for 4K/Quad HD and Ultra HD broadcast applications, while fully complying with the JIIA CoaXPressspecification. These high-performance connectors enable a full 12 GHz channel through a single connection, ensuring superior signal integrity and reliability.
For maximum space efficiency, our BNC stacking connectors are designed to deliver the highest packing density in a diagonal array configuration. They can be manufactured in tall-and-short or short-and-tall combinations, with any number of interfaces integrated into a single connector array, offering unmatched
flexibility in system design.

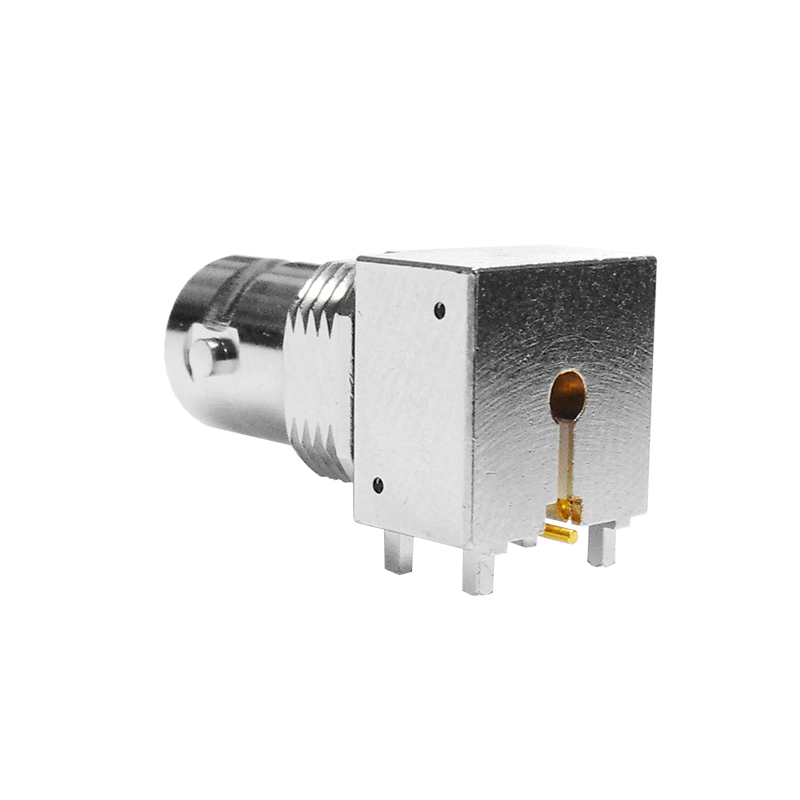

These BNC connectors feature a surface-mounted pin and are carefully tuned to minimize crosstalk at higher frequencies. Designed for efficient production, they can be reflow soldered directly onto the PCB, simplifying assembly and ensuring reliable performance.
| Impedance | 75Ω |
| Frequency Range | 0 – 12.0 GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.23 (max) 0-6GHz, 1.44 (max) 6-12GHz, 1.23 (max) 0-6GHz, 1.44 (max) 6-12GHz |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Insulation Resistance | 5000mΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ"Au, Phosphor Bronze / 10µ"Au, Phosphor Bronze / 10µ"Au, Phosphor Bronze / 10µ”Au, Phosphor Bronze / 10µ”Au |
| Insulators | PFTE |
| Temperature Range | -65 to 85°C |
| Mating Cycles | 250 |
| Processing | Maximum hand and reflow soldering temperature 260°C |
| Mounting Type | Right Angled |
| Leg Length | 2.1mm |
| Hardware | Available separately |
The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33
The ANB-C2-ABG-2.50 is a circular BNC nut which is 2.5mm thick and gold plated.
This nut was previously sold as 71X-0041-36
The ANB-C4-ASN-2.50 is a 4 slot circular BNC nut which is 2.5mm thick and made from mild steel with a nickel plating. The mild steel material makes this particularly useful with magnetic tools.
This nut was previously sold as part number 71X-0057-33
Our 12 GHz Precision BNC coaxial connectors are engineered for 4K/Quad HD and Ultra HD broadcast applications, while fully complying with the JIIA CoaXPressspecification. These high-performance connectors enable a full 12 GHz channel through a single connection, ensuring superior signal integrity and reliability.
For maximum space efficiency, our BNC stacking connectors are designed to deliver the highest packing density in a diagonal array configuration. They can be manufactured in tall-and-short or short-and-tall combinations, with any number of interfaces integrated into a single connector array, offering unmatched
flexibility in system design.
These BNC connectors feature a surface-mounted pin and are carefully tuned to minimize crosstalk at higher frequencies. Designed for efficient production, they can be reflow soldered directly onto the PCB, simplifying assembly and ensuring reliable performance.
