The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC Connectors in both halves.
| Impedance | 75Ω |
| Frequency Range | 0 – 12.0 GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Contact Resistance | Centre Contact 1.5 m Ω Outer contact 1.0 m Ω |
| Insulation Resistance | 5000mΩ |
| Reflection Factor (VSWR) | 1.10(max) DC – 6GHz 1.14 (max) 6.0 – 12.0Ghz |
| Metal Parts | Die Cast Zinc / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |

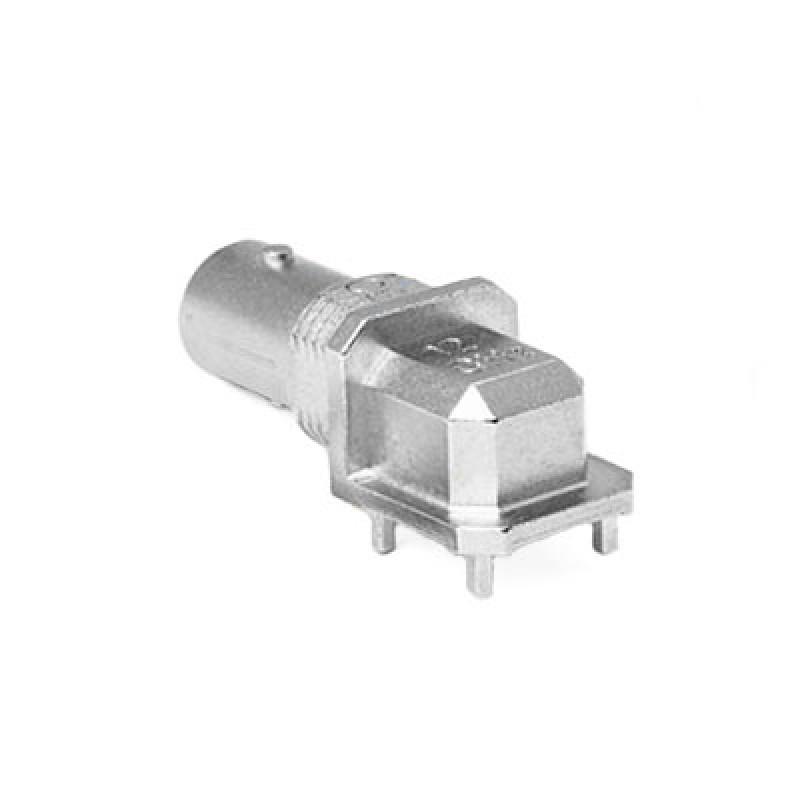

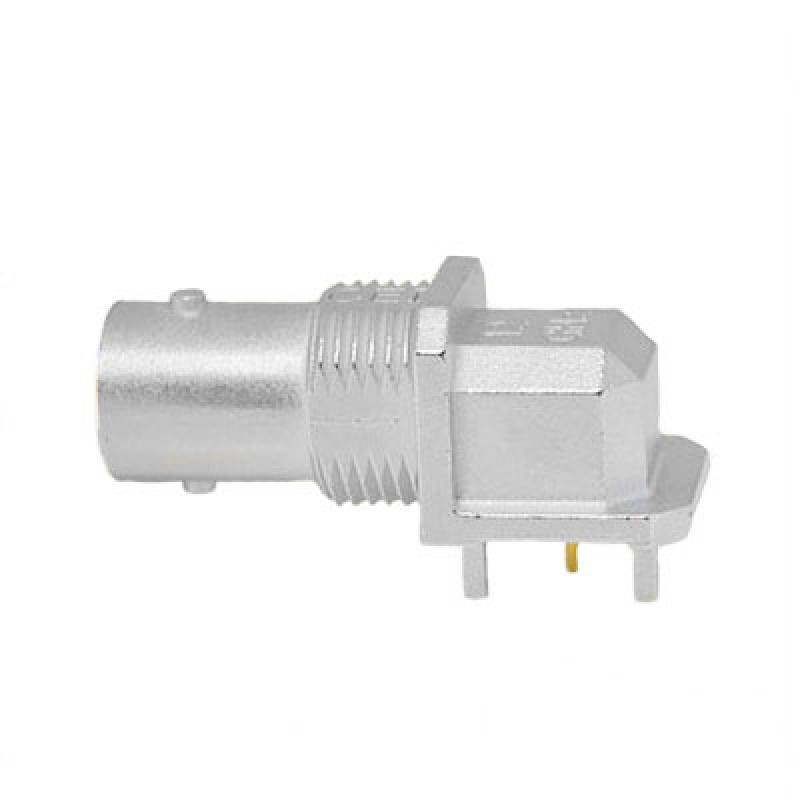

This connector is available as:
XBS-12-RB35-NN as a connector only product
XBS-12-RB35-NN-AA when supplied with a hex nut and crinkle washer (formerly C-SX-144)
XBS-12-RB35-NN-CA when supplied with a 2 slot circular nuts and washer (formerly C-SX-151)
| Mounting Type | Right Angled |
| Leg Length | 3.5mm |
| Hardware | Available separately |
| Processing | Hand Solder, Wave Solder capable of 265° Temperatures up to 265°C may be used in Wave solder process. Dwell time 10-12 seconds |
The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33
The ANB-C2-ABG-2.50 is a circular BNC nut which is 2.5mm thick and gold plated.
This nut was previously sold as 71X-0041-36
The ANB-C2-ANO-4.00 is a circular BNC nut which is 4.0mm thick and made from nylon. It is available in other colours.
This part was previously sold under part number 71X-0046-00
The ANB-C4-ASN-2.50 is a 4 slot circular BNC nut which is 2.5mm thick and made from mild steel with a nickel plating. The mild steel material makes this particularly useful with magnetic tools.
This nut was previously sold as part number 71X-0057-33
The ANB-C2-ABN-3.50 is a circular BNC nut which is 3.5mm thick and made from brass with a nickel plating.
This part was previously sold as 71X-0063-33.
The standard hex nut is made from brass with a nickel plating.
This Hex Nut was previously sold as part number 71X-0018-33.
The BNC crinkle washer is made from brass with a nickel plating.
The crinkle washer was formerly sold under part number 71X-0043-33.
