Up to 12GHz

XBS-12-TE38-NNI – Top Entry PCB Mounted BNC Socket

Product Code: XBS-12-TE38-NNI

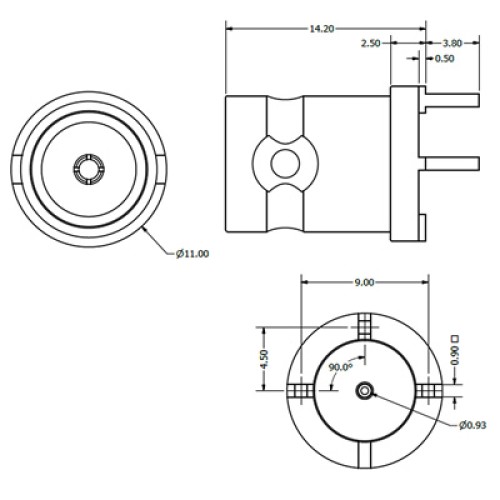

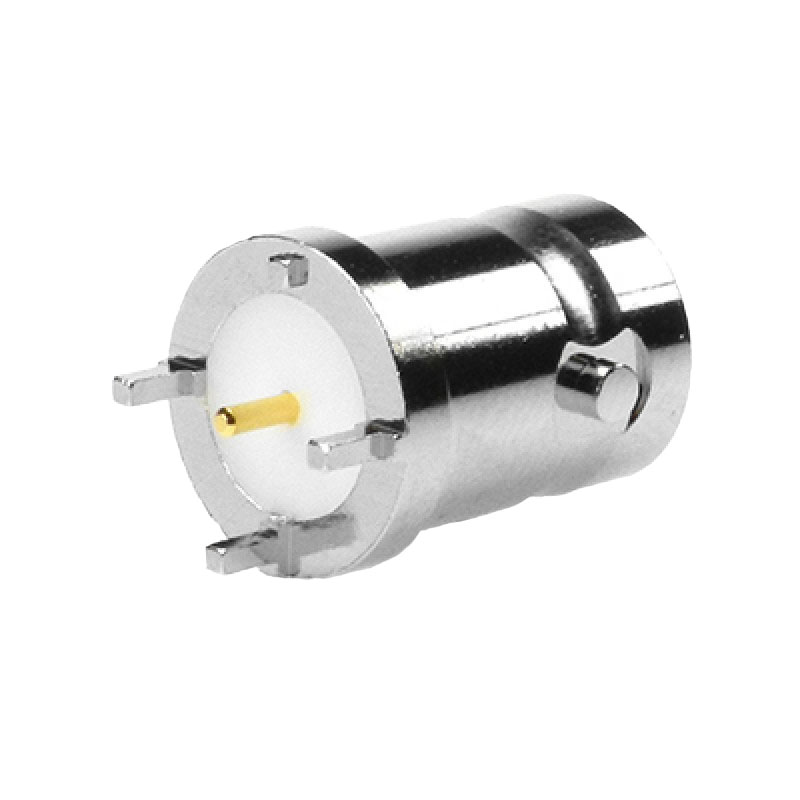

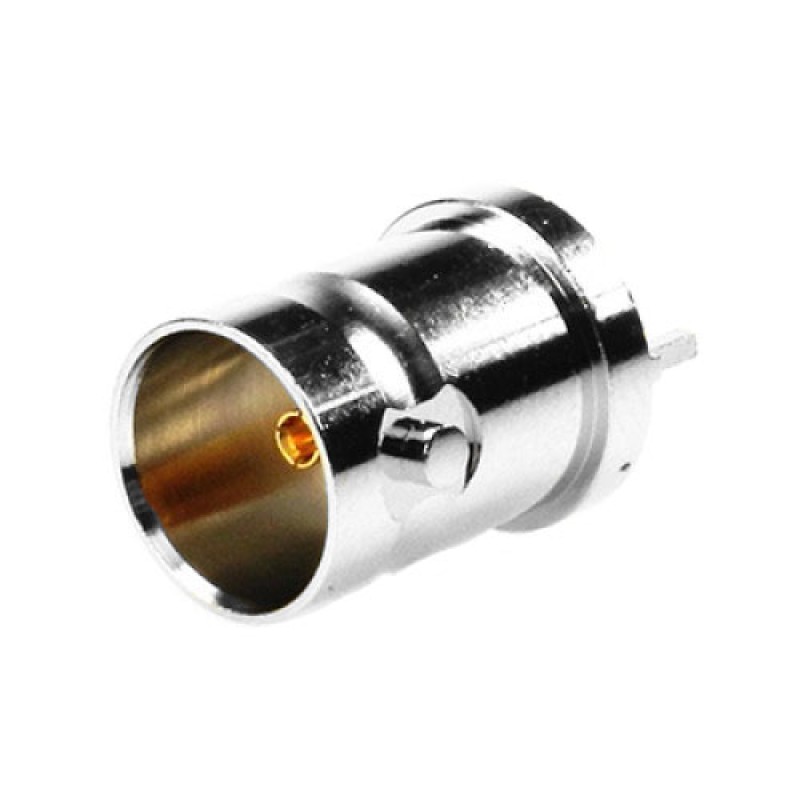

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The XBS-12-TE38-NNI connector is a top entry BNC connector with 3 legs and a stand off. The connector is made for PCB thicknesses up to 3.7mm.

This connector was formerly sold as:
C-SX-150 as a connector only part

Electrical

Impedance	75Ω
Frequency Range	0 -12GHz
Working Voltage	500Vrms
Dielectric Withstanding Voltage	1500Vrms
Contact Resistance	Centre contact 1.5mΩ Outer contact 1.0mΩ
Insulation Resistance	5000mΩ
Reflection Factor (VSWR)	1.04 (max) DC – 6GHz 1.11 (max) 6.0 – 12.0GHz
