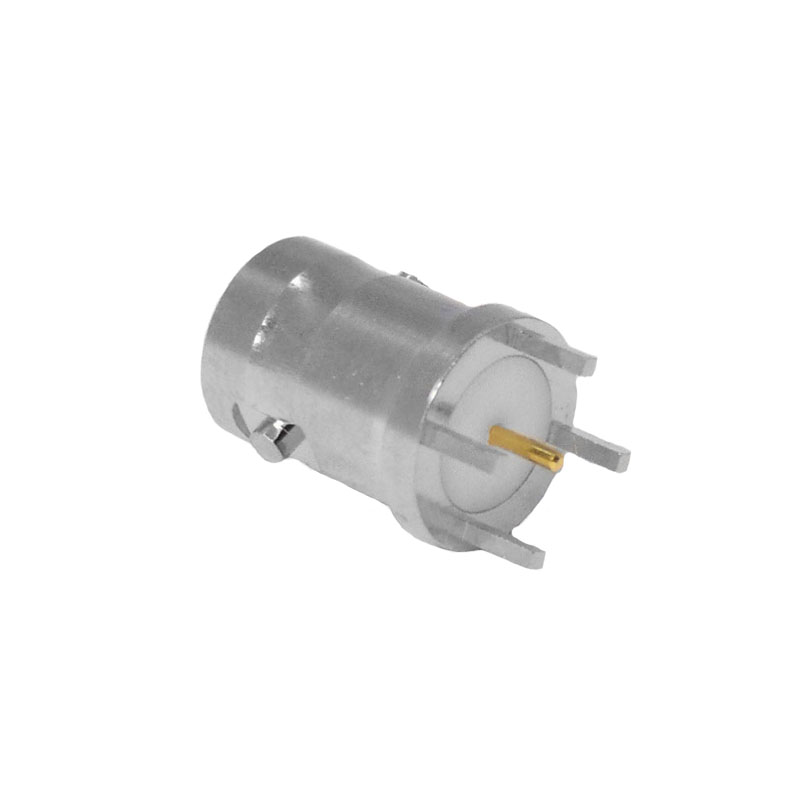

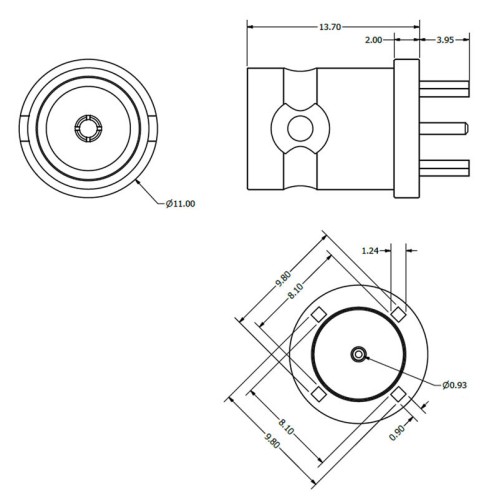

XBS-12-TE39-NN – Top Entry PCB Mounting BNC Socket

Product Code: XBS-12-TE39-NN

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The XBS-12-TE39-NN connector is a top entry BNC connector with 4 legs. The connector is made for PCB thicknesses up to 3.8mm.

This connector was formerly sold as:
C-SX-152 as a connector only part

Electrical

Impedance	75Ω
Frequency Range	0 – 12GHz
Working Voltage	500Vrms
Dielectric Withstanding Voltage	1500Vrms
Contact Resistance	Centre Contact 1.5 m Ω Outer contact 1.0 m Ω
Insulation Resistance	5000mΩ
Reflection Factor (VSWR)	1.04(max) DC – 6GHz 1.11 (max) 6 – 12GHz
