XBT-1050-NGAY – Top Entry Mounted BNC Socket
XBT-1050-NGAY – Top Entry Mounted BNC Socket

XBT-1050-NGAY – Top Entry Mounted BNC Socket

Product Code: XBT-1050-NGAY

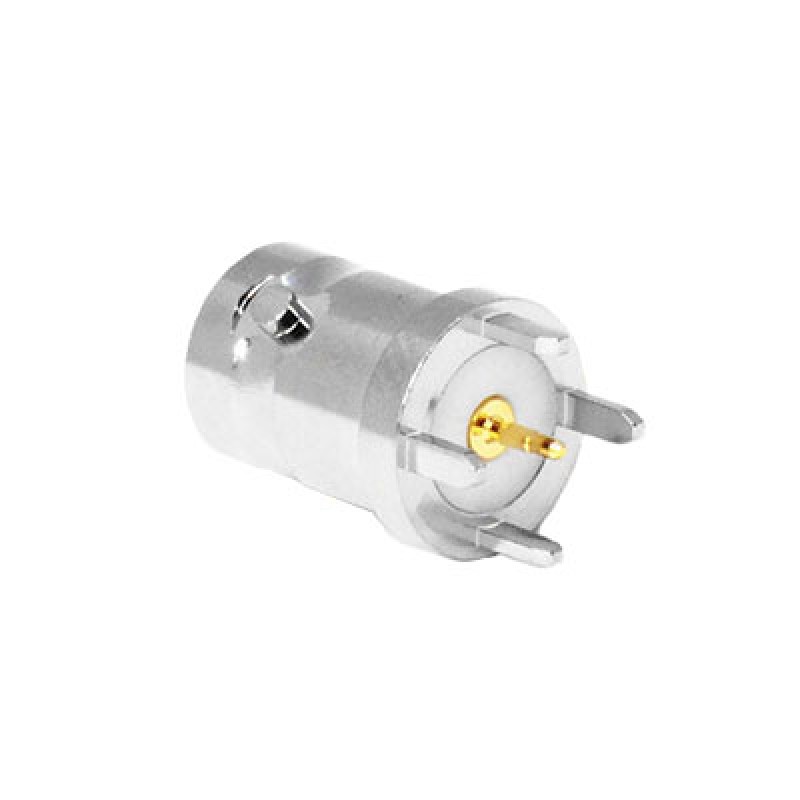

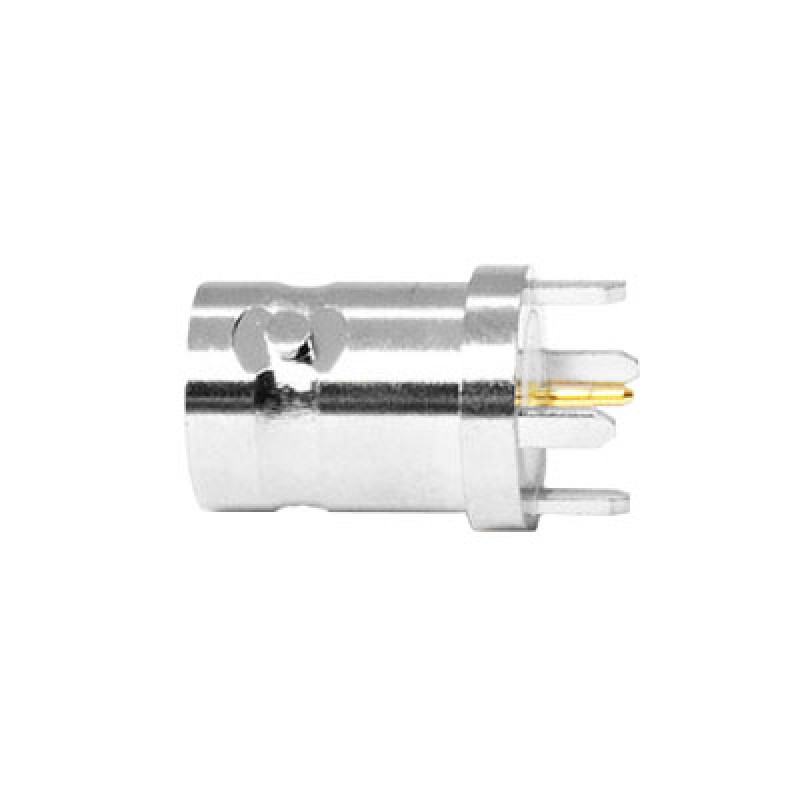

The XBT-1050-NGAY is a top entry PCB mounted socket which is suitable for frequencies up to 1GHz. It is recommended that this connector is used on PCB thicknesses above 1.6mm

Impedance 50Ω
Frequency Range 0 – 1GHz
Mounting Type Top Entry

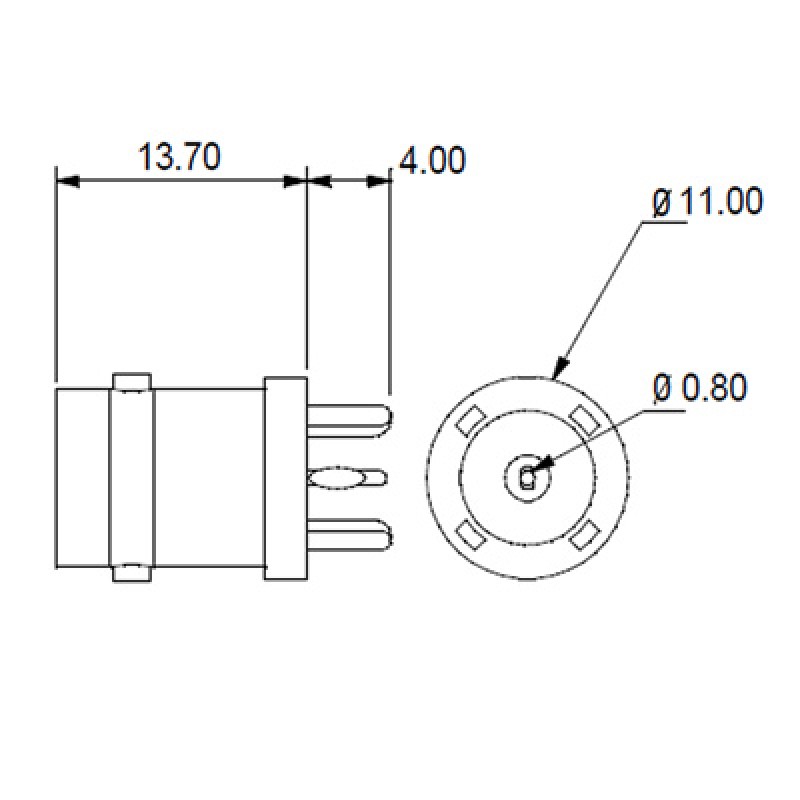

Leg Length 4.0mm
