Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while
meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve peak design performance we recommend using Cambridge Connectors 12GHz CoaxVision™ BNC plug and socket.

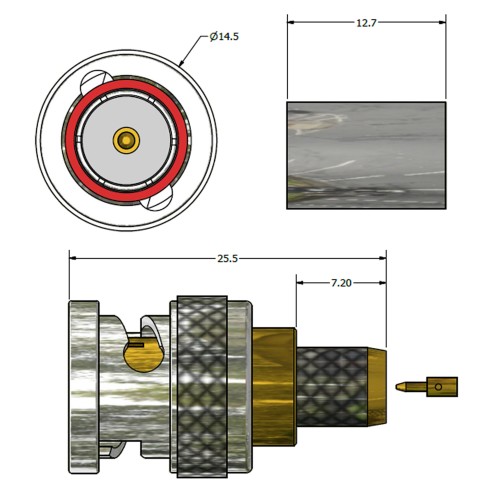

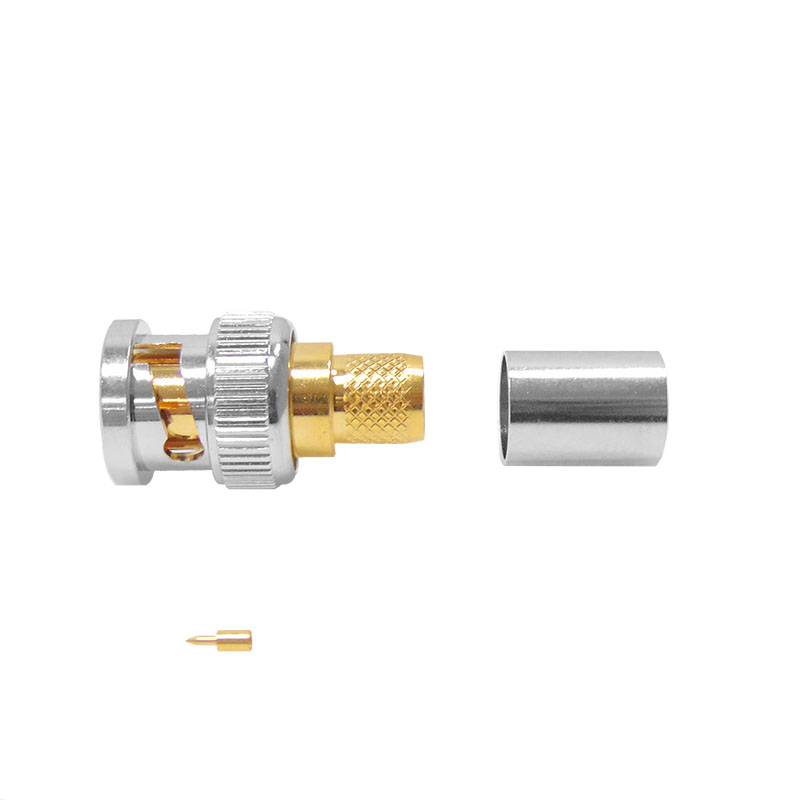

The XBT-1068-BGXX connector is an cable mounted plug which can be used with Belden cables types 1694A, 4694R, 4855R, 4505R and 4794R.
The following tools are recommended for use with this connector:
XBT-1068-BGAS = TLG 110
| Impedance | 75Ω |
| Frequency Range | 0 – 12 GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Contact Resistance | Centre Contact 1.5 m Ω Outer contact 1.0 m Ω |
| Reflection Factor (VSWR) | 1.25 (max) DC – 12 GHz |
| Body Finish | Standard – Brass / Ni |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group AS (RG6 – 1694A – 4694R) Cable Group BD (1794A) |
