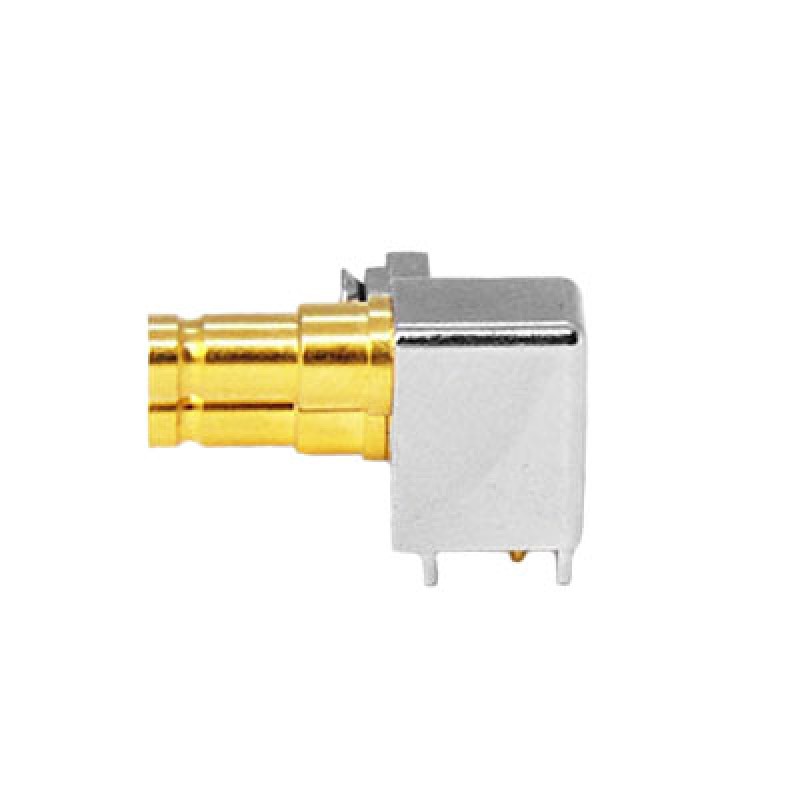

The XGS-06-RA20-NGD is a low profile dual port connector which allows an enhanced packing density of connections on a standard PCI Card. This is made possible by combining the small format of DIN 1.0 / 2.3 style connectors with a unique diagonal mounting style, while also offering the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The connector is supplied with an M2 x 5 countersunk cross head screw.
This connector was formerly sold as:
C-SX-143

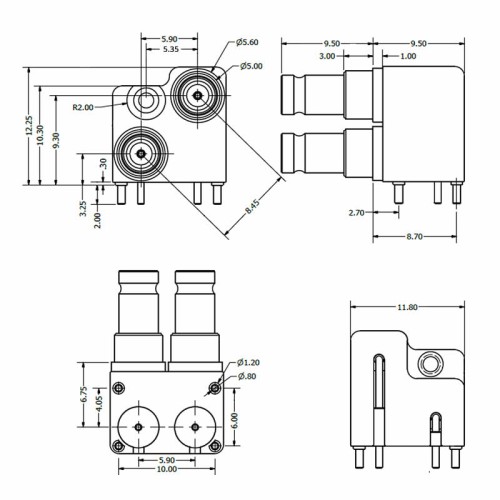

| Impedance | 75Ω |
| Frequency Range | 0 – 6 GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.15 (max) DC – 3GHz 1.36 (max) 3 – 6GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au / Ni |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
| Mounting Type | Right Angled |
| Leg Length | 2.0mm |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperature 265°C |
