The ANG-C2-BBN-2.30 is a standard 1.0 / 2.3 nut which is 2.30mm thick and made from Brass with nickel plating.
This nut was previously sold as part number 71X-0048-33.

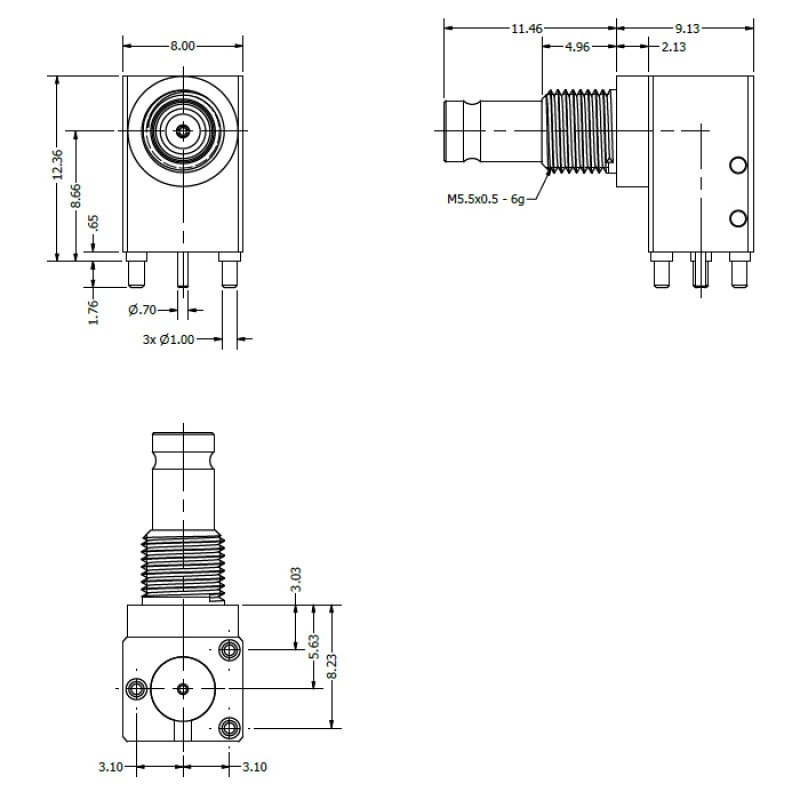

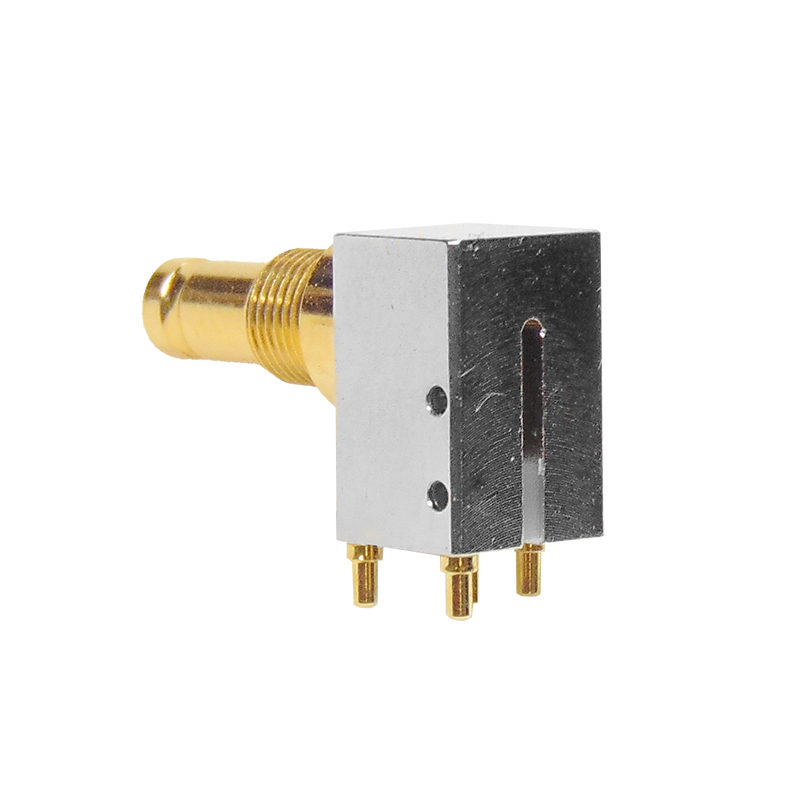

Our 6 GHz Precision DIN 1.0/2.3 coaxial connectors comply with SMPTE ST2081.1 and CXP-6 standards, supporting data rates up to 5.94 Gbit/s per channel with superior signal integrity and reliability. For maximum space efficiency, the DIN 1.0/2.3 stacking connectors are engineered for high-density diagonal array configurations within the PCIe standard form factor. They can be manufactured in tall-and-short or short-and-tall combinations, with any number of interfaces integrated into a single connector array, delivering unmatched design flexibility. CEI provides custom array drawings with dedicated part numbers, simplifying system integration.
Each connector features a through-hole pin and is precisely tuned to minimize crosstalk at higher frequencies, ensuring stable performance in demanding applications.
| Impedance | 75Ω |
| Frequency Range | 0 – 6 GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750 Vrms |
| Reflection Factor (VSWR) | 1.12 (max) 3-6GHz, 1.04 (max) 0-3GHz, 1.04 (max) 0-3GHz, 1.12 (max) 3-6GHz |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PFTE |
| Temperature Range | -65 to 85°C |
| Mating Cycles | 500 |
| Processing | Maximum hand or wave soldering temperature 265°C |
| Mounting Type | Right Angled |
| Leg Length | 1.8mm |
| Hardware | Available separately |
The ANG-C2-BBN-2.30 is a standard 1.0 / 2.3 nut which is 2.30mm thick and made from Brass with nickel plating.
This nut was previously sold as part number 71X-0048-33.
The ANG-C2-BBN-1.80 is a circular DIN 1.0 / 2.3 nut which is 1.8mm thick and made from Brass with nickel plating.
This part was previously sold as part number 71X-0053-33.
The ANG-C4-BBN-1.80 is a 4 slot circular Din 1.0 / 2.3 nut which is 1.8mm thick and made from Brass with nickel plating.
This part was previously sold under part number 71X-0058-33.
Our 6 GHz Precision DIN 1.0/2.3 coaxial connectors comply with SMPTE ST2081.1 and CXP-6 standards, supporting data rates up to 5.94 Gbit/s per channel with superior signal integrity and reliability. For maximum space efficiency, the DIN 1.0/2.3 stacking connectors are engineered for high-density diagonal array configurations within the PCIe standard form factor. They can be manufactured in tall-and-short or short-and-tall combinations, with any number of interfaces integrated into a single connector array, delivering unmatched design flexibility. CEI provides custom array drawings with dedicated part numbers, simplifying system integration.
Each connector features a through-hole pin and is precisely tuned to minimize crosstalk at higher frequencies, ensuring stable performance in demanding applications.
